The right airless spray tip is an important tool decision dependent on the coating or paint you’ll be spraying. We offer a top selection of Graco® spray tips, in a variety of orifice sizes sure to fit your project specifications.
Should you have any questions, reach out to our dedicated customer service team who are happy to help.
| Name | PSI (BAR) Range | Best Scenarios | Benefits | Disadvantages | ||
|---|---|---|---|---|---|---|
 |

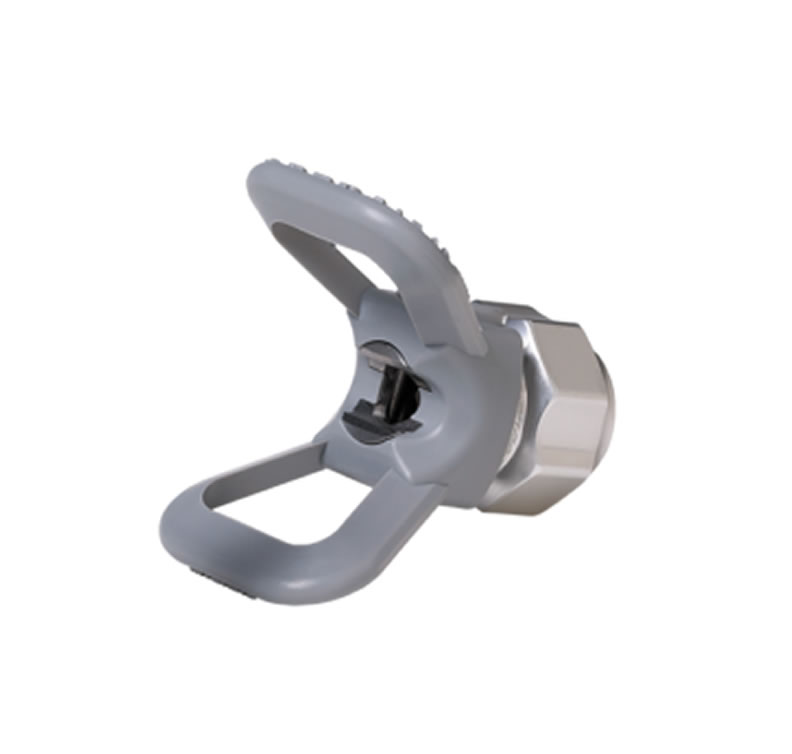

GRACO XHD HEAVY DUTY RAC SPRAY TIP | 7,250 (500 bar) psi rated |
|
|
|
|
 |

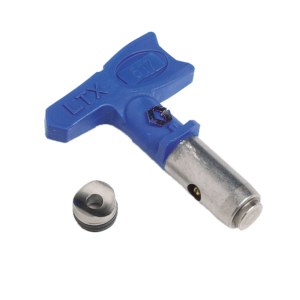

GRACO RAC X AIRLESS SPRAY TIP | 4,050 psi (279 bar) rated |
|
|
|
|
 |

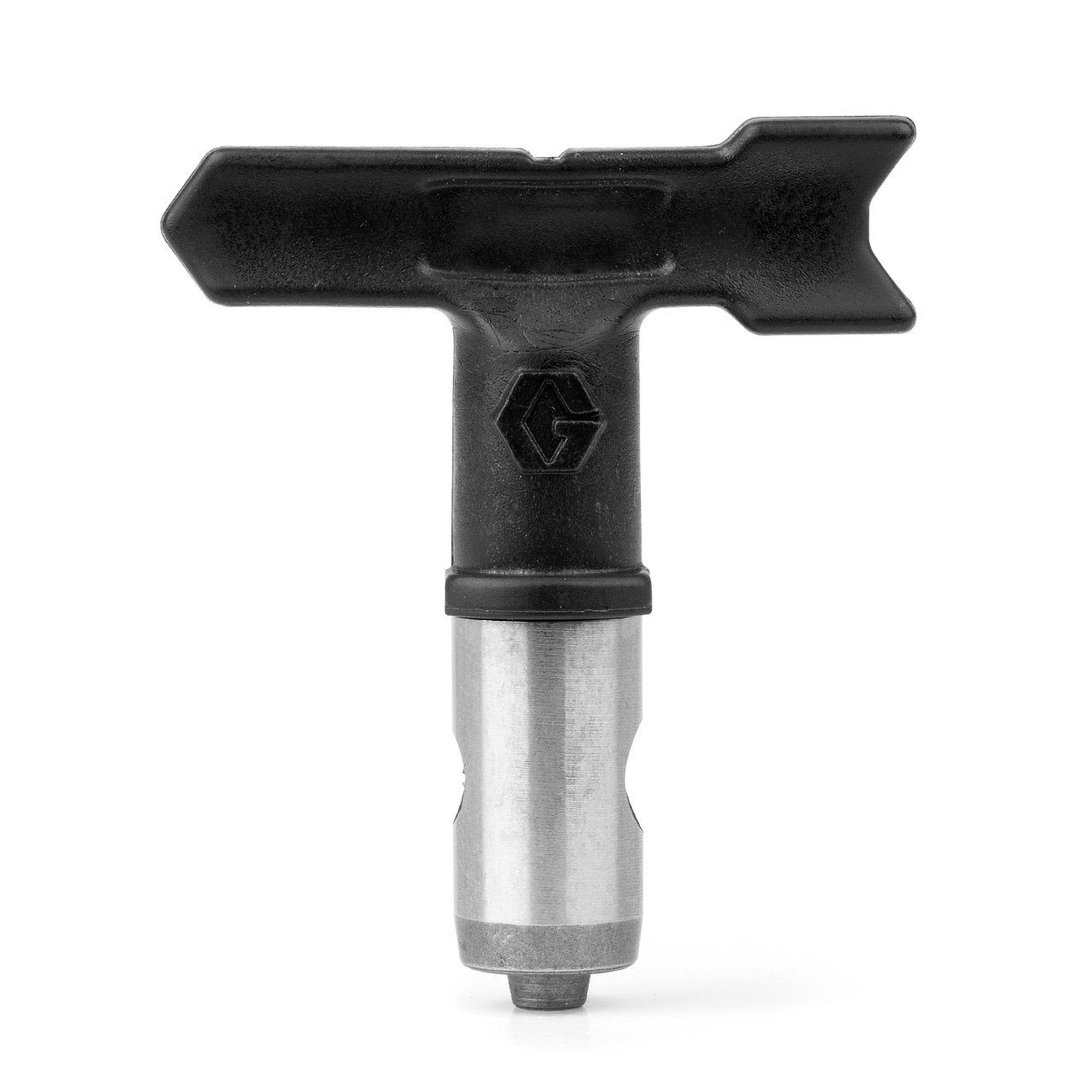

GRACO RAC 5 AIRLESS SPRAY TIP | 4,050 psi (279 bar) rated |
|
|
|
|
 |

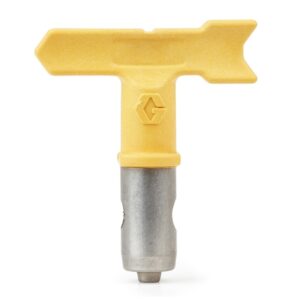

GRACO LINELAZER RAC 5 SPRAY TIP | 4,050 psi (279 bar) rated |
|
|
|
 |
 |
 |
|
|
|---|---|---|---|---|
| GRACO XHD HEAVY DUTY RAC SPRAY TIP | GRACO RAC X AIRLESS SPRAY TIP | GRACO RAC 5 AIRLESS SPRAY TIP | GRACO LINELAZER RAC 5 SPRAY TIP | |
| PSI (BAR) Range | 7,250 psi (500 bar) rated | 4,050 psi (279 bar) rated | 4,050 psi (279 bar) rated | 4,050 psi (279 bar) rated |
| Best Scenarios |
|
|
|
|
| Benefits |
|
|
|
|
| Disadvantages |
|
|
|
|
The biggest problem with airless spray tips is that they wear out! When you combine high pressure, high flow and abrasive materials something has to give. In this instance as the orifice of the tip wears, the spray pattern changes, deteriorating in finish quality. It starts as a stripe with parallel sides and rounded ends, changes to oval, becoming shorter and wider. Finally it turns into a round shape. On average a worn tip will spray 25% more paint and require 20% more labor. Worn tips cost time and money…
Generally, airless spray tips are problem free, provided that they are replaced before becoming too worn. Very little negative feedback is reported by contractors using them.
| ORIFICE SIZE | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAN WIDTH |
IN MM | .007 | .009 | .011 | .013 | .015 | .017 | .019 | .021 | .023 | .025 | .027 | .029 | .031 | .033 | .035 | .037 | .039 | .041 | .043 | .045 | .047 | .049 |
| 2-4(51-102) | 107 | 109 | 111 | 113 | 115 | 117 | 119 | 121 | |||||||||||||||
| 4-6(102-152) | 209 | 211 | 213 | 215 | 217 | 219 | 221 | 225 | 227 | 229 | 231 | 235 | 239 | ||||||||||
| 6-8 (152-203) | 307 | 309 | 311 | 313 | 315 | 317 | 319 | 321 | 323 | 325 | 327 | 329 | 331 | 333 | 335 | 337 | 339 | 341 | 343 | 345 | 347 | ||
| 8-10 (203-254) | 409 | 411 | 413 | 415 | 417 | 419 | 421 | 423 | 425 | 427 | 429 | 431 | 433 | 435 | 437 | 439 | 441 | 443 | 445 | 447 | 449 | ||
| 10-12 (254-305) | 509 | 511 | 513 | 515 | 517 | 519 | 521 | 523 | 525 | 527 | 529 | 531 | 533 | 535 | 537 | 539 | 541 | 543 | 545 | 547 | 549 | ||
| 12-14 (305-356) | 609 | 611 | 613 | 615 | 617 | 619 | 621 | 623 | 625 | 627 | 629 | 631 | 633 | 635 | 637 | 639 | 641 | 643 | 645 | 647 | 649 | ||
| 14-16 (356-406) | 711 | 713 | 715 | 717 | 719 | 721 | 723 | 725 | 727 | 729 | 731 | 733 | 735 | 737 | 739 | 741 | 743 | 745 | 747 | 749 | |||
| 16-18 (406-457) | 813 | 815 | 817 | 819 | 821 | 823 | 825 | 827 | 829 | 831 | 833 | 835 | 837 | 839 | 841 | 843 | 847 | ||||||
| 18-20 (457-508) | 923 | 927 | 931 | 933 | 935 | 937 | 939 | ||||||||||||||||
| FLOW RATE (GPM) | .05 | .09 | .12 | .18 | .24 | .31 | .38 | .47 | .57 | .67 | .77 | .90 | 1.03 | 1.17 | 1.31 | 1.47 | 1.63 | 1.8 | 1.98 | 2.17 | 2.37 | 2.58 | |
| FLOW RATE (LPM) | .20 | .33 | .49 | .69 | .91 | 1.17 | 1.47 | 1.79 | 2.15 | 2.54 | 2.96 | 3.42 | 3.90 | 4.42 | 4.98 | 5.56 | 6.18 | 6.83 | 7.51 | 8.23 | 8.98 | 9.76 | |
| ORIFICE SIZE | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAN WIDTH |
IN MM | .051 | .053 | .055 | .057 | .059 | .061 | .063 | .065 | .067 | .069 | .071 | .075 | .081 | |||||||||
| 2-4(51-102) | |||||||||||||||||||||||
| 4-6(102-152) | |||||||||||||||||||||||
| 6-8 (152-203) | 351 | 355 | |||||||||||||||||||||
| 8-10 (203-254) | 451 | 455 | 459 | 461 | 463 | 465 | 467 | 471 | 475 | 481 | |||||||||||||
| 10-12 (254-305) | 551 | 553 | 555 | 557 | 561 | 567 | 571 | 575 | |||||||||||||||
| 12-14 (305-356) | 651 | 655 | 657 | 659 | 661 | 663 | 665 | 667 | 669 | 671 | 675 | ||||||||||||
| 14-16 (356-406) | 751 | 753 | 755 | 761 | 767 | 771 | 729 | ||||||||||||||||
| 16-18 (406-457) | 851 | 855 | 861 | 863 | 867 | ||||||||||||||||||
| 18-20 (457-508) | |||||||||||||||||||||||
| FLOW RATE (GPM) | 2.79 | 3.05 | 3.25 | 3.49 | 3.74 | 4.0 | 4.26 | 4.53 | 4.82 | 5.11 | 5.41 | 6.04 | 7.04 | ||||||||||
| FLOW RATE (LPM) | 10.57 | 11.41 | 12.29 | 13.20 | 14.14 | 15.12 | 16.13 | 17.17 | 18.24 | 19.34 | 20.48 | 22.85 | 26.66 | ||||||||||
The most important consideration when choosing an airless tip is matching tip to paint specification. The paint manufacturer will make a recommendation for orifice size and usually fan size as well. Generally speaking architectural coatings can be applied with a 4050 psi (279 bar) rated tip and heavy industrial coatings applied with a 7500 psi (517 bar) tip.
Another important consideration is ensuring that 4050 psi (279 bar) rated tip isn’t used on a 7500 psi (517 bar) rated pump. Maximum pressure specification have a safety factor built in to protect the operator against an injection injury. While it may be tempting to use a 4050 psi (279 bar) rated tip on a 7500 psi (517 bar) rated pump for cost or finish reasons, there is a substantial injury risk in doing so.
The three digits represent tip size (fan and orifice) and indicate the amount of paint that flows through the tip. The first digit is half of the fan width (#5 x 2 = 10 inch fan width). The last two digits are the size of the tip orifice in thousandths of an inch. Your actual flow rate will depend on your spraying pressure and the material you are using (high pressure equals more flow; heavier paints equals less flow).
Graco RAC X series tips range from No.2 (102mm) to No.18 (914mm) fan and .18mm to 1.8mm orifice. Graco RAC XHD series tips range from .18mm to 1.2mm orifice and No.2 (102mm) to No.20 (1016mm) fan. Keep in mind that, within these ranges, not every size and fan combination is available.
