Corrosion Control Inspector Field Test Kits
Discover our line of corrosion control inspectors kits – from testing pressure, to profile, to chlorides and abrasive particle size and more.
| Name | Options | Best Scenarios | Benefits | ||
|---|---|---|---|---|---|
 |
Nozzle Pressure Test Kit |
|
Complete nozzle pressure test kit to ensure full (100 psi) air pressure at the blast nozzle | Every drop of 1 psi below 100 psi is a 1.5% loss of efficiency. Having this kit on hand will make sure you can always check that 100psi or higher pressure is being maintained. | |
 |
DeFelsko PosiTector Painting Foreman Inspection Kit |
|
Complete inspection kit for dry film thickness, surface profile and dew point monitoring. Advanced body | DeFelsko PosiTector body and probe interoperability allows for a compact kit to test for a variety of different metrics. | |
 |
DeFelsko® PosiTector Complete Inspection Kit |
|
Complete inspection kit for dry film thickness, surface profile and dew point monitoring. Options for probe and body type. | DeFelsko PosiTector body and probe interoperability allows for a compact kit to test for a variety of different metrics. | |
 |
Surface Preparation Guide Booklet |
|
Visual representation of rust and coating preparation grades on steel substrates. Comparable to SSPC-VIS 1 Visual Standards and Reference Photographs. | Provides standardization of a qualitative measurement that is subject to standards control. |
|
|
|
|
|
|---|---|---|---|---|
| Nozzle Pressure Test Kit | DeFelsko PosiTector Painting Foreman Inspection Kit | DeFelsko® PosiTector Complete Inspection Kit | Surface Preparation Guide Booklet | |
| Options |
|
|
|
|
| Best Scenario | Complete nozzle pressure test kit to ensure full (100 psi) air pressure at the blast nozzle | Complete inspection kit for dry film thickness, surface profile and dew point monitoring. Advanced body | Complete inspection kit for dry film thickness, surface profile and dew point monitoring. Options for probe and body type. | Visual representation of rust and coating preparation grades on steel substrates. Comparable to SSPC-VIS 1 Visual Standards and Reference Photographs. |
| Benefits | Every drop of 1 psi below 100 psi is a 1.5% loss of efficiency. Having this kit on hand will make sure you can always check that 100psi or higher pressure is being maintained. | DeFelsko PosiTector body and probe interoperability allows for a compact kit to test for a variety of different metrics. | DeFelsko PosiTector body and probe interoperability allows for a compact kit to test for a variety of different metrics. | Provides standardization of a qualitative measurement that is subject to standards control. |
| Name | Best Scenarios | Benefits | ||
|---|---|---|---|---|
 |
DeFelsko® PosiTector SmartLink Wireless Gauge | Turns your cell phone or tablet into a virtual PosiTector gauge. Accepts coating thickness, environmental and surface profile probes. | Change probe to gauge to phone/computer protocol to probe direct to phone/computer. Saves time in getting readings from test site into reporting tools. | |
 |
Abrasive Particle Size Testing Kit | Allows for in-house checking of abrasive particle size. Assists in maintaining a good working blend when recycling abrasive. On single use jobs, provides assurance that the range of particle sizes will ensure optimum productivity | Instant checks, no sending to laboratory and waiting for results. | |
 |
ChlorTest CSN Test Kit Complete | Complete kit to check for the presence of chlorides, sulfates, and nitrites. | Chloride testing is by far the most common surface contamination test requested; however, some environments may have the presence of sulfates and nitrates, which also impair adhesion. Have testing for all three contaminants on hand at all times. | |
 |
Dust Tape Test Complete Kit | An ISO compliant kit of instructions, tools, and materials to determine dust levels on a blasted surface prior to painting | Provides standardization of a qualitative measurement that is subject to standards control. |
|
|
|
|
|
|---|---|---|---|---|
| DeFelsko® PosiTector SmartLink Wireless Gauge | Abrasive Particle Size Testing Kit | ChlorTest CSN Test Kit Complete | Dust Tape Test Complete Kit | |
| Best Scenarios | Turns your cell phone or tablet into a virtual PosiTector gauge
Accepts coating thickness, environmental and surface profile probes. |
Allows for in-house checking of abrasive particle size. Assists in maintaining a good working blend when recycling abrasive. On single use jobs, provides assurance that the range of particle sizes will ensure optimum productivity | Complete kit to check for the presence of chlorides, sulfates, and nitrites. | An ISO compliant kit of instructions, tools, and materials to determine dust levels on a blasted surface prior to painting |
| Benefits | Change probe to gauge to phone/computer protocol to probe direct to phone/computer. Saves time in getting readings from test site into reporting tools. | Instant checks, no sending to laboratory and waiting for results. | Chloride testing is by far the most common surface contamination test requested; however, some environments may have the presence of sulfates and nitrates, which also impair adhesion. Have testing for all three contaminants on hand at all times. | Provides standardization of a qualitative measurement that is subject to standards control. |
Inspection Videos
The Defelsko SST for surface testing
New DeFelsko PosiTector Gage Body
How is a Surface Profile Needle Gauge as Accurate as Testex Tape?
DeFelsko SPG Product Overview
The Accurate Way To Test Your Blasting Pressure
Chloride Field Testing Demo with BlastOne and GMA
Abrasive Particle Size Testing
Surface Profile vs. Class of Blast
Is your surface profile costing you in paint?
Why Use Inspector Kits?
A day in the life of a coating inspector will include a multitude of different tests. BlastOne inspection kits contain the equipment and consumables required to meet the range of testing required. The DeFelsco PosiTector “one body, multiple probes” interoperability means that inspectors kits can be kept compact. The untidy briefcase with missing components is now a thing of the past.
Common Issues With Inspector Kits
The most common issue with inspectors’ kits is allowing consumables and components to go missing. Get in the habit of doing a stocktake daily, weekly, or monthly to see what is missing. Then reorder two to three times your daily/weekly/monthly requirements.
Important Considerations When Choosing The Right Inspectors Kit
The most important issue in choosing an inspector’s kit is whether it will include all the equipment and consumables requires for testing to meet the facility owners/material manufacturers/consultants stipulated specifications.
Frequently Asked Questions
What is included in the coating inspector’s kits?

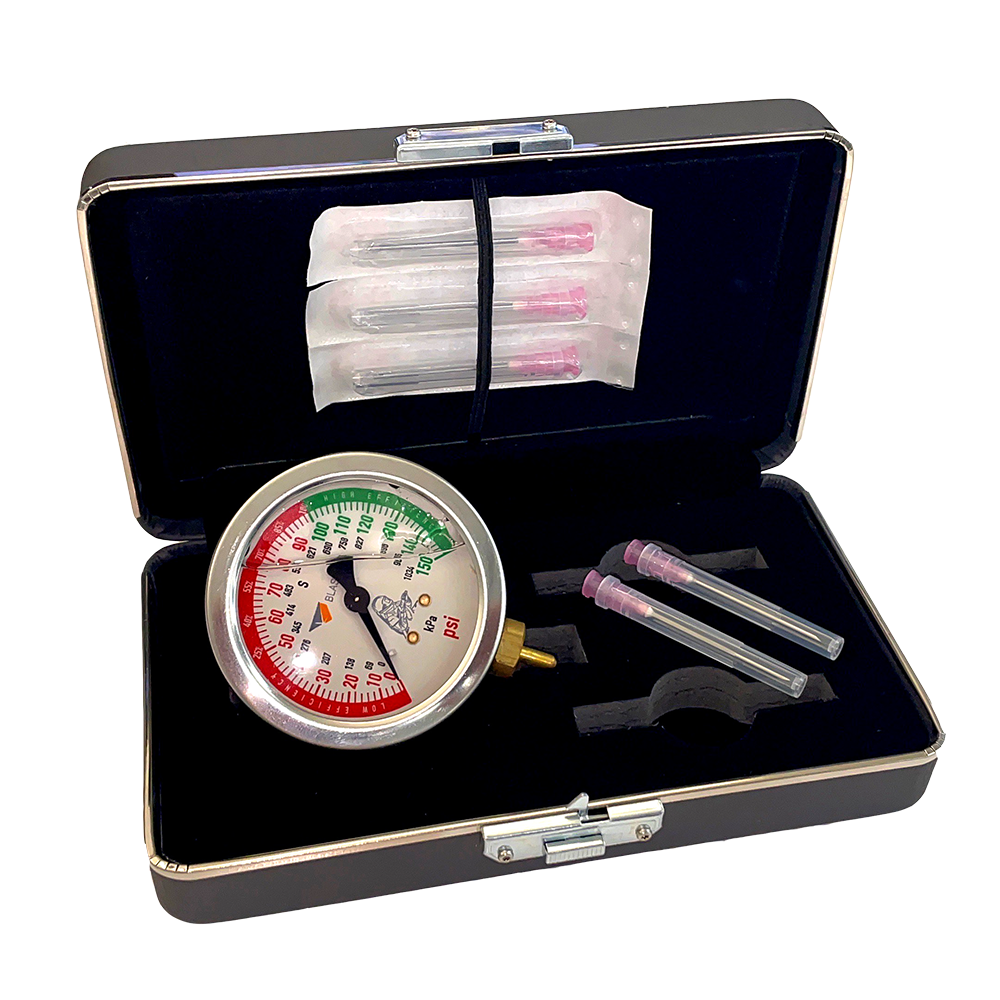

Nozzle Pressure Test Kit:
- Liquid filled stainless steel pressure gage
- Four needles and instructions
DeFelsko® PosiTector Painting Foreman Inspection Kit:
- Advanced PosiTector 6000 gauge body
- PosiTector 6000 DFT coating thickness probe
- Positector DPM probe dew point probe
- Positector RTR surface profile probe
- Precision plastic shims, glass zero plate and metal shim
- Protective rubber holster with belt clip, wrist strap
- Hard shell case

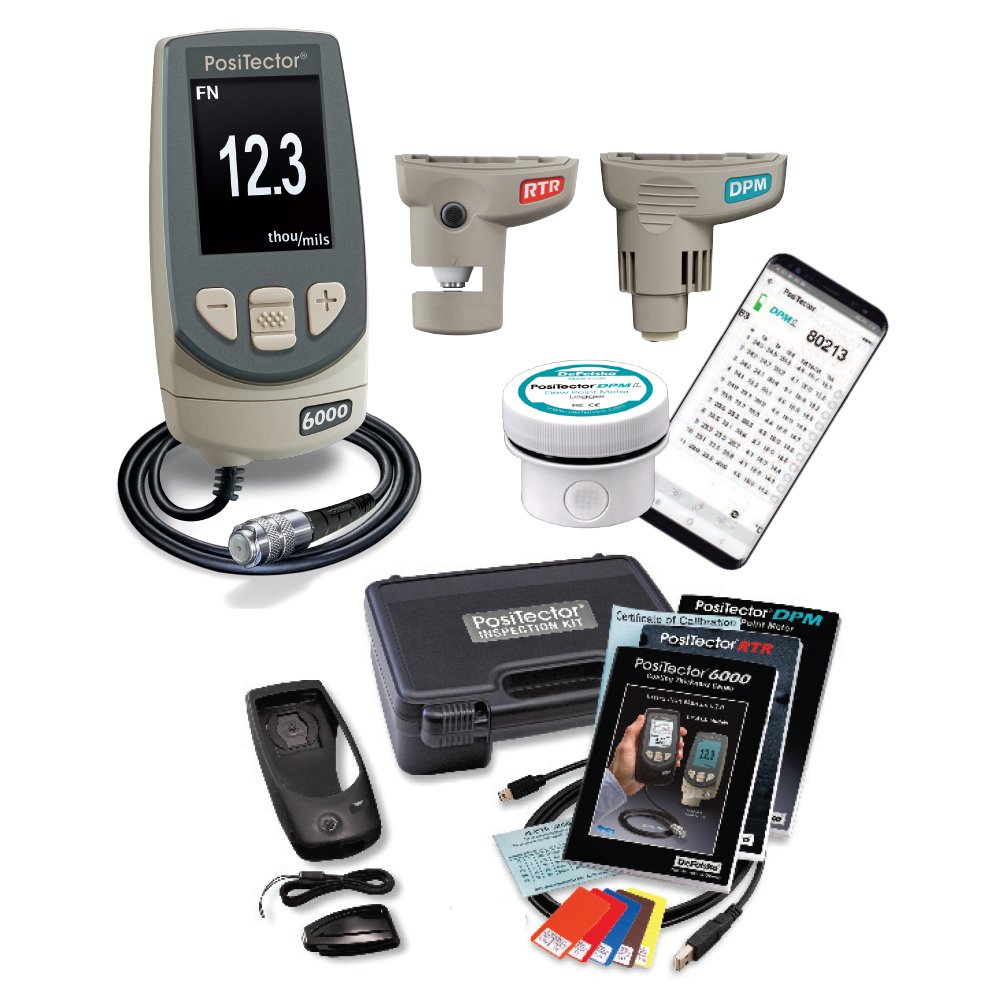

DeFelsko® PosiTector Complete Inspection Kit:
- Your choice of Standard or Advanced PosiTector 6000 gauge body
- Your choice of Ferrous only or combination PosiTector 6000 DFT coating thickness probe, integral or cabled
- Positector DPM probe dew point probe
- Positector RTR surface profile probe
- Precision plastic shims, glass zero plate and metal shim
- Protective rubber holster with belt clip, wrist strap
- Hard shell case
Surface Preparation Guide Booklet:
- Flip-top, wire bound, reference book

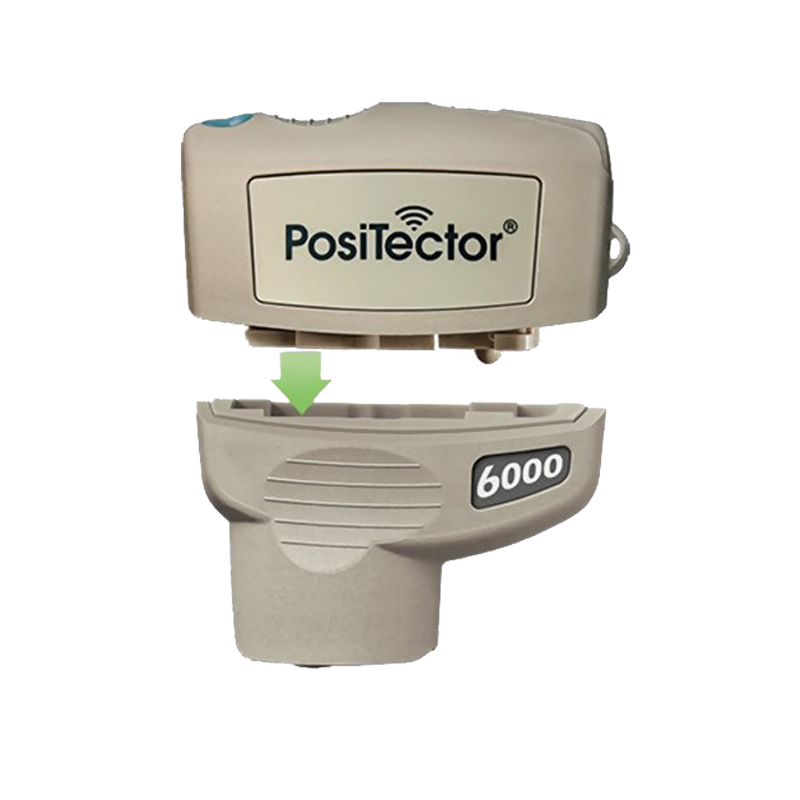

DeFelsko® PosiTector SmartLink Wireless Gauge:
- Bluetooth Connection device to link probe to computer/phone

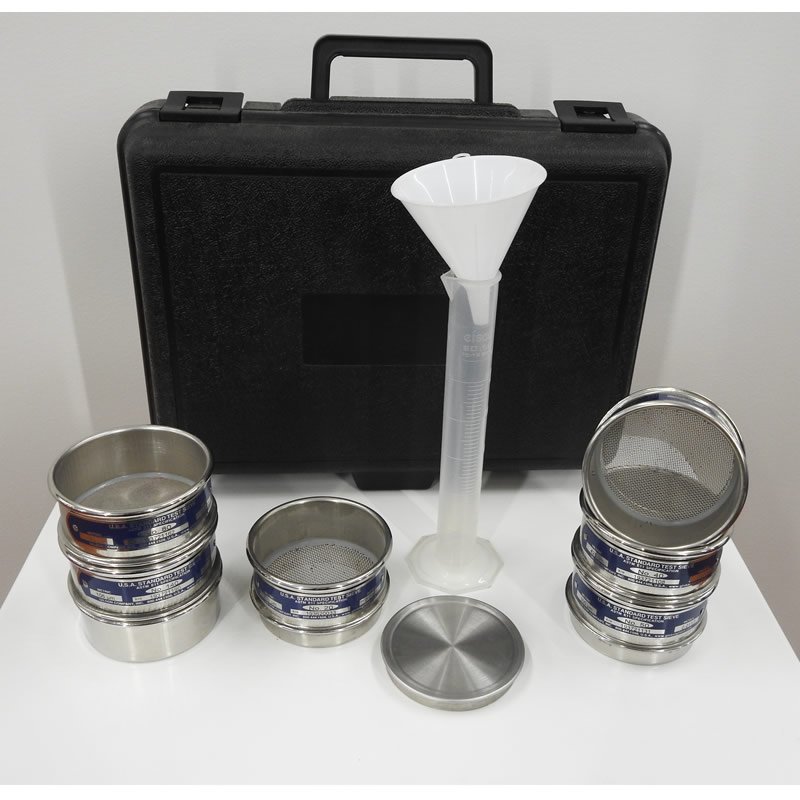

Abrasive Particle Size Testing Kit:
- Six (6) ASTM E11 Standard mesh stacking sieves
- Graduated cylinder, funnel, and carrying case.

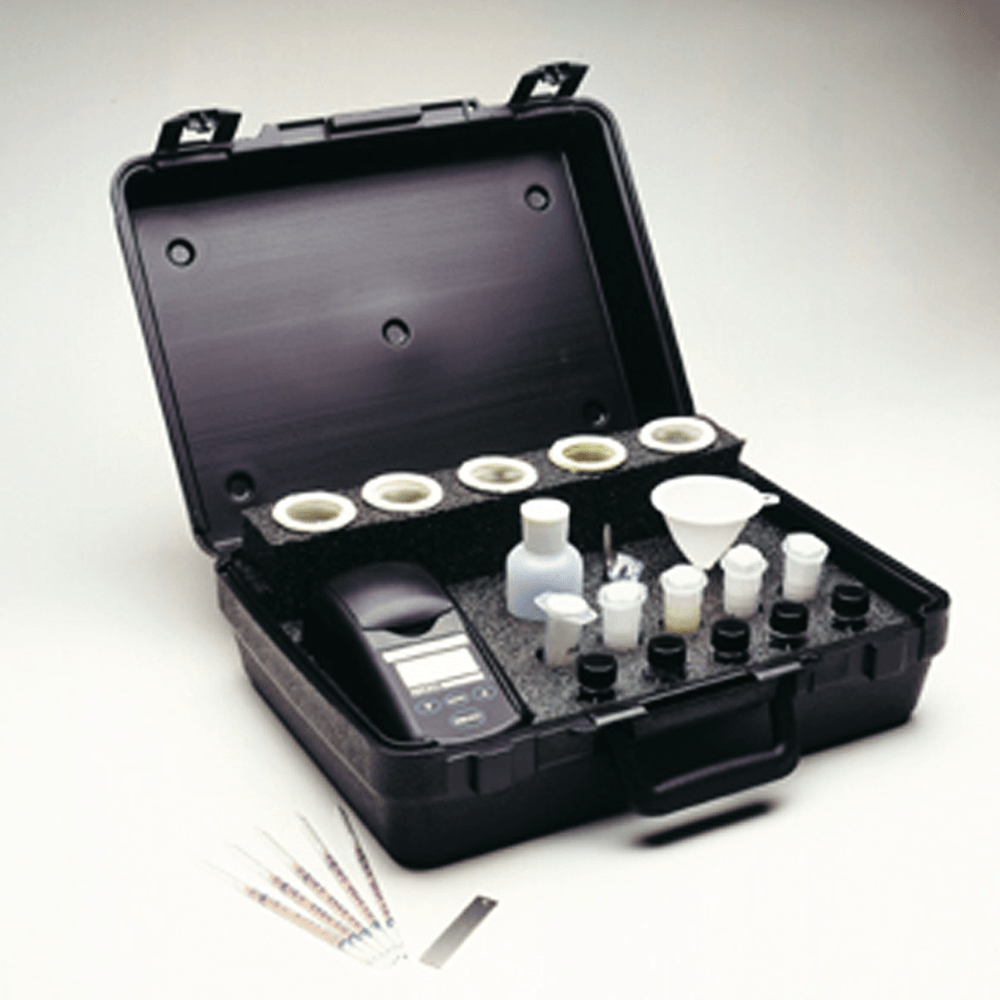

ChlorTest CSN Test Kit Complete:
- Five (5) Chloride tests, five Sulfate tests, five Nitrate tests
- Photometer
- Hard shell case

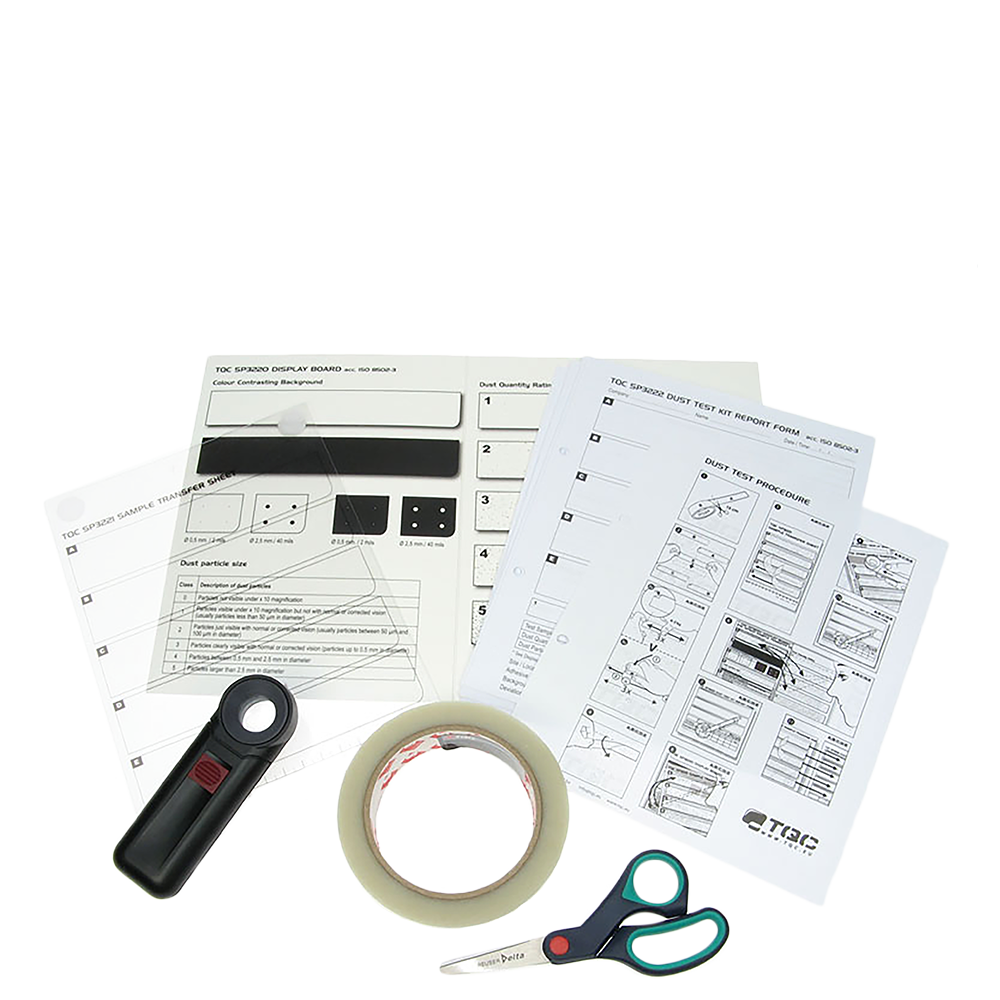

Dust Tape Test Complete Kit:
- Binder with all necessary forms and visual comparator
- Tape, scissors
- 10X Illuminated Magnifier
