Heavy Duty Sand & Abrasive Blast Nozzles
ABRASIVE MEDIA SANDBLASTING NOZZLES
BlastOne is a leading supplier of sandblast nozzles to industrial blast and paint companies worldwide. Our team is able to recommend the best type for your application whether you seek long lasting sini silicon nitride nozzles with a tough polyurethane jacket, tungsten carbide lasting 100-250 hours, standard silicon carbide or even alumina.
We also offer our blast nozzles in either contractor, medium, or fine threaded options. Whether you’re interested in trying a new type or simply replace an old favorite, give BlastOne a call and let us ship one out today.
Showing 1–15 of 28 results
-
The world's quietest blast nozzle! Click for Buying Guide
- Up to 16dBA noise reduction
- Up to 45% less fatigue compared to standard blast nozzles
- Improved nozzle geometry
- New technology quick-connect nozzle silencer
- Durable and lightweight Silicon Nitride nozzle and silencer liner
- Slimline ergonomic nozzle jacket
- Standard contractor nozzle inlet thread
- Designed to optimise the use of GMA garnet
- 2 versions available
- Standard Pressure Nozzle effective between 90-110 psi
- Low Pressure Nozzle effective between 70-90 psi
- FREE TRIAL AVAILABLE
Act quick! Limited supply.
-
BNSBXQ10-1- WATCH VIDEO IN THE IMAGE SLIDER
- Highest productivity hand-held blast nozzle available
- Over double the productivity of a #8 high-performance blast nozzle with less operator fatigue
- Half the thrust of other #10 blast nozzles available - Feels like you're blasting with a #7 nozzle
- Up to 16dBA noise reduction - That's 75% quieter!
- Ideal for blasting acres of steel such as storage tanks, bridges, and ship hulls
- Standard contractor nozzle inlet thread
- Delivers faster cleaning rates and increased profit by reducing project duration
- Requires 750cfm compressor
- FREE TRIAL AVAILABLE!
BNSBXQ10-1- WATCH VIDEO IN THE IMAGE SLIDER
- Highest productivity hand-held blast nozzle available
- Over double the productivity of a #8 high-performance blast nozzle with less operator fatigue
- Half the thrust of other #10 blast nozzles available - Feels like you're blasting with a #7 nozzle
- Up to 16dBA noise reduction - That's 75% quieter!
- Ideal for blasting acres of steel such as storage tanks, bridges, and ship hulls
- Standard contractor nozzle inlet thread
- Delivers faster cleaning rates and increased profit by reducing project duration
- Requires 750cfm compressor
- FREE TRIAL AVAILABLE!
Part Number Purchase Price BNSBXQ10-1 $4,037.00 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$4,037.00
-
-
All the power. Half the size!- Up to 16dBA noise reduction
- Up to 45% less fatigue compared to standard blast nozzles
- Improved nozzle geometry
- New technology quick-connect nozzle silencer
- Durable and lightweight Silicon Nitride nozzle and silencer liner
- Slimline ergonomic nozzle jacket
- Standard contractor nozzle inlet thread
- Designed to optimise the use of GMA garnet
- 2 versions available
- Standard Pressure Nozzle effective between 90-110 psi
- Low Pressure Nozzle effective between 70-90 psi
- FREE TRIAL AVAILABLE
Act quick! Limited supply.
-
The SnakeBite XP is the high-performance nozzle used in the highly successful SnakeBite XQ silenced configuration. As the XP uses a simple bump cap on the end (instead of the silencer), it does not have the noise and thrust reduction of the XQ. It is very fast and exceeds the performance of our hyper nozzle. Details as follows:
- Performance:
- The advanced modeling used when designing this Snakebite XP hyper nozzle has taken blasting performance to a whole new level. The refined internal geometry coupled with the non-silencing bump-cap produces very fast cleaning speed indeed.
- Liner:
- The new internal geometry when combined with the silicon nitride composition extends usable life greatly.
- Jacket:
- Anodized aluminum with ergonomic shape makes for a very comfortable grip.
- Sizes:
- Available in the following orifice sizes: 6, 7, 8, & 10
- Overall length varies from 10" to 13", depending on orifice size.
- Thread type:
- Available in standard 2" Contractor thread only. (See You May Also Like nozzle thread adapters below if you want to use with fine thread nozzle holders.)
Note: Inquire for details about our free trial offer.
- Performance:
-
- Replacement silencers for the SnakeBite family of blast nozzles
- Up to 45% less operator fatigue
- Up to 16dB noise reduction
- 2 versions available
- Standard Pressure Silencer effective between 90-110 psi
- Low-Pressure Silencer effective between 70-90 psi
-

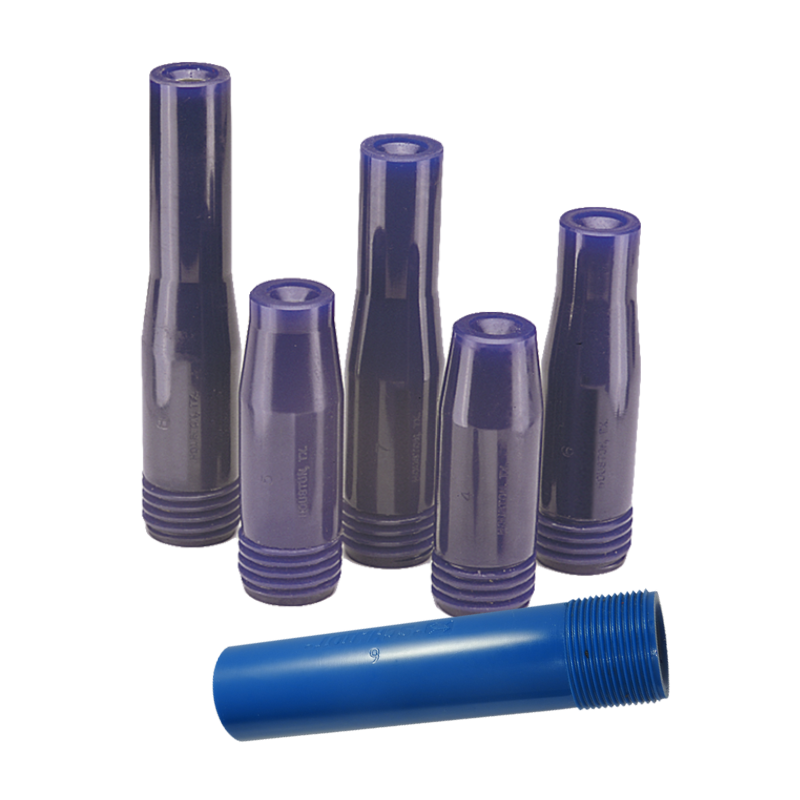

Industry Leading Blast Nozzle
- SiNi II grade silicon nitride liner
- Shock absorbent, lightweight urethane jacket protects the blast nozzle liner
- Vacuum molded urethane thread will not 'jam' in blasting nozzle holder
- Half the weight of conventional tungsten carbide abrasive blast nozzles
- 2" UNC (50mm) coarse Contractor thread
- 1¼" (32 mm) wide throat entry, long venturi except Ultra-3 & Ultra-4 have 1" (25 mm) throat entry
-
- 2" UNC (50mm) Contractor thread
- 1¼" (32mm) wide throat entry, extra long venturi
- Extra long venturi increases performance by up to 30%

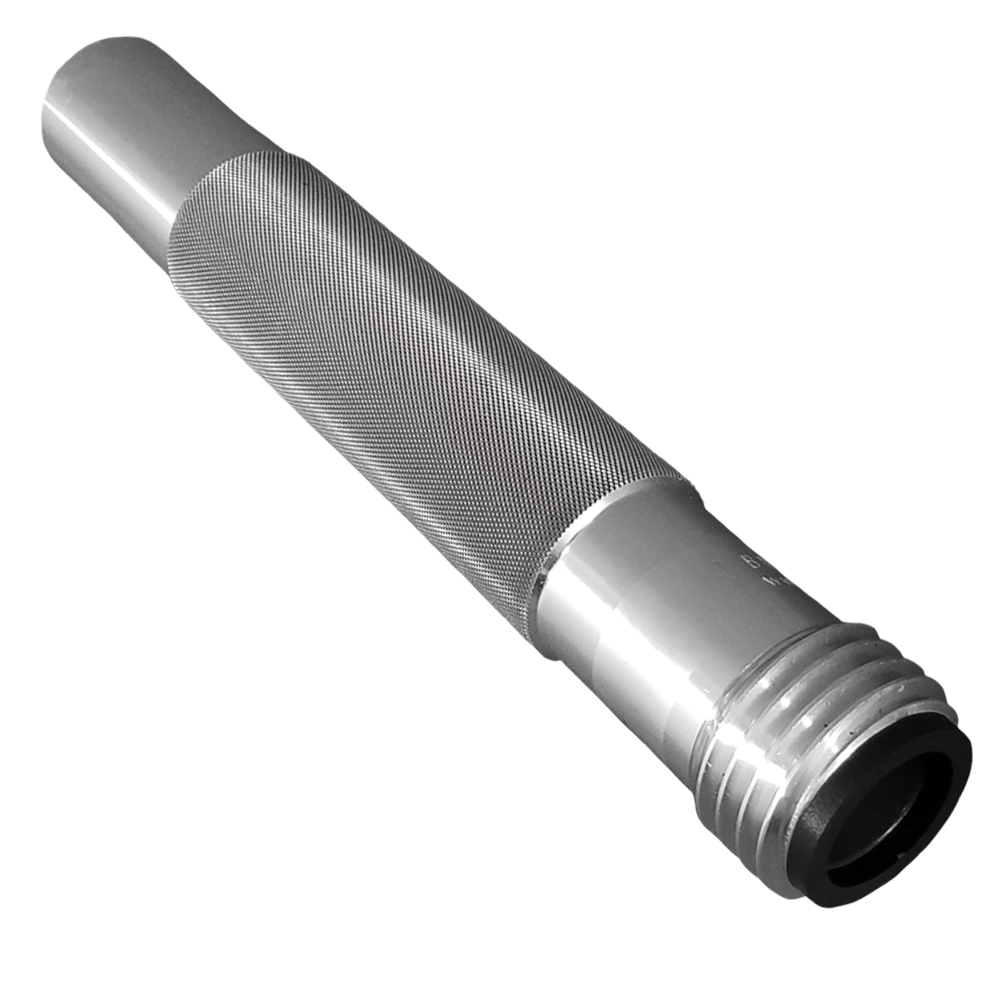

- SiALON II grade silicon nitride liner
- Aluminum jacket and thread with urethane cushioning
- New feature: Non-slip knurl
-

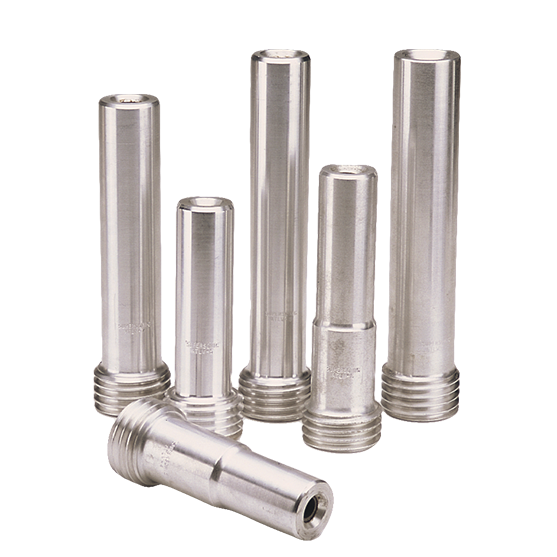

Introducing the Supersonic Tungsten Carbide Blast Nozzle (SKU: P-BNATLW) with a 1 ¼" throat entry and durable aluminum jacket - a contractor's top choice for blasting efficiency.
- 2" UNC (50 mm) coarse Contractor thread
- 1 ¼" (32 mm) wide throat entry, long venturi
- Tungsten carbide liner
- 'The Original' Contractor favourite
- Standard weight aluminum jacket and thread
- Use HF G32P nozzle washers
-
The biggest revolution in Water Jetting! New precision engineered material grade tetraCORE diamond for optimised productivity and reduce operating cost for water jetting projects. Experience 10-15 times longer life than sapphire nozzles! tetraCORE diamond nozzles ensure:- Up to 60,000 psi operating pressure
- Zero ID edge degradation over use
- Premium jet stream coherency & integrity
- Optimised jet stream length and consistency
- Maximised uptime and productivity
- 100% testing of all nozzles prior to shipping
-

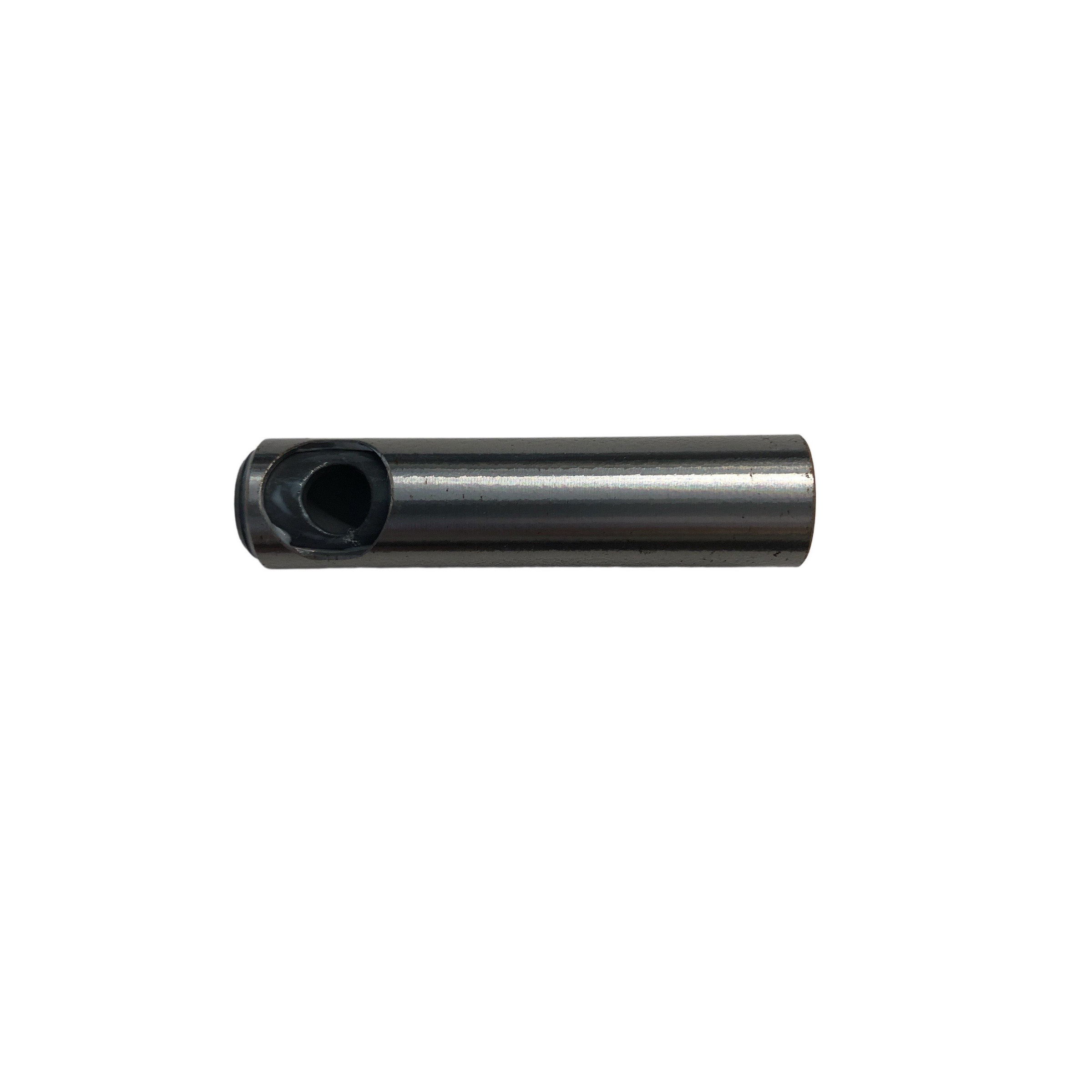

Tite-Space nozzles are angle nozzles, designed for use in areas that are especially difficult to access, and feature:- 3/8" NPT Thread in either Male or Female configuration
- Male version has brass threads and requires a minimum opening clearance of 1". This version is 1-7/8" long.
- Female version has steel threads and requires a minimum opening clearance of only ¾". This version is 3-1/8" long.
- These nozzles are often used in conjunction with our Tite Space Invader Blasting Kit, available here
- Angle options include:
- 45° & 60° forward blast
- 90° right angle blast
- 135° reverse blast
- Some options available in double, triple or quad orifices in addition to single.
- Note: Using nozzles with multiple orifices will multiply the compressed air CFM requirement accordingly.
- Stock version uses tungsten carbide lining.
-

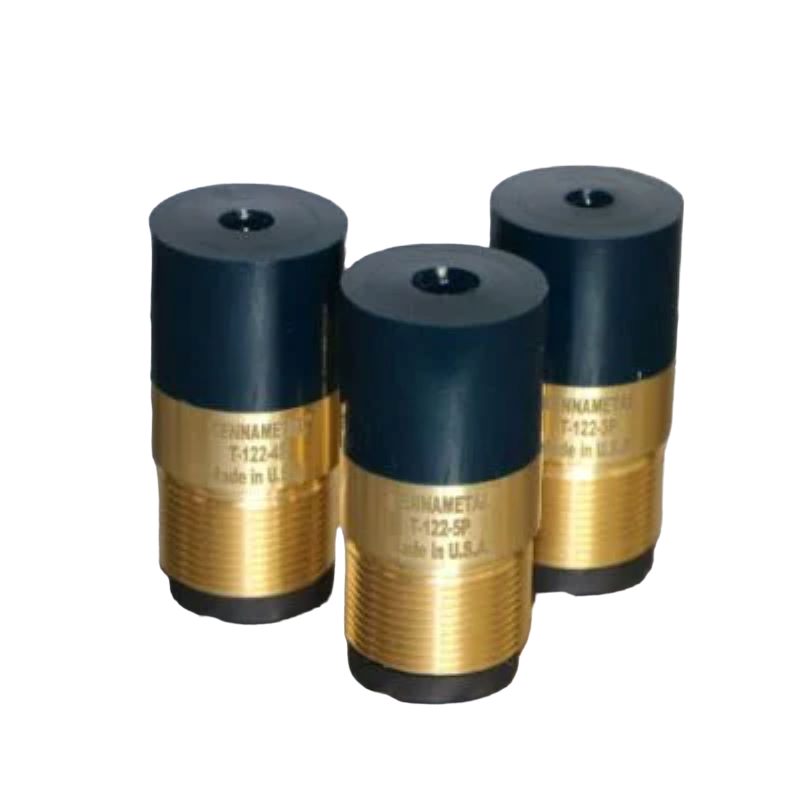

Short nozzles with straight bore are made for close-range spot blasting. The blast pattern is small, making it ideal for cleaning small areas, railings, etc. Other details as follows:- Fine thread, 1-¼" - 11-½" NPSM
- Available in sizes from #3 to #8
- Tungsten carbide liner
-
Short venturi nozzles are made for close-range blasting. The venturi allows the widest possible pattern in limited space environments. Other details as follows:- Available in either Contractor thread (50mm) or Fine thread (1-¼")
- Available in orifice sizes from #3 to #12
- Tungsten carbide liner
- Multiple jacket types available
-
BNWBHPAdapts a contractor thread nozzle to a wet blasting nozzle. More control than with a halo nozzle.- Injects water internally into the abrasive / air stream
- Adapter connects to the nozzle holder, and holds a contractor thread nozzle.
- Includes needle valve to optimize mixture
- Requires a pressure washer to operate, set for 500-1000 psi, 2-4 GPM flow
BNWBHPAdapts a contractor thread nozzle to a wet blasting nozzle. More control than with a halo nozzle.- Injects water internally into the abrasive / air stream
- Adapter connects to the nozzle holder, and holds a contractor thread nozzle.
- Includes needle valve to optimize mixture
- Requires a pressure washer to operate, set for 500-1000 psi, 2-4 GPM flow
-
Nozzle holder for blast hose- Connects the blast nozzle to the blast hose
- Choose your blast nozzle thread type;
- 3/4" Medium Mitey-Mite Thread
- 1-1/4" Industrial Fine Thread
- 2" Coarse Contractor Thread *Contractor Favourite*
- Reference the table below for the size to fit your blast hose
- Available in Nylon, Brass or Aluminium
- Industry Commonly Referred to As: HE1, HE-1, HE2, HE-2, HE3, HE-3, NHP1, NHP2, NHP3, NH1, NH-1, NH2, NH-2, NH3, NH-3
-
- 3/4" NPSM (20mm) 'M' thread
- 1/2" (13mm) throat entry
- Straight bore
- Tungsten carbide liner
- Aluminum jacket and thread
- Use HF GFBS-P nozzle washers (1 included)
A TIP ON WHEN TO REPLACE YOUR SAND BLAST NOZZLE
Even a very small increase in blasting nozzle size will result in a very large increase in ‘air and abrasive consumption’. When worn 1/16” (2mm) larger, it is time to be replaced. Use a size analyzer kit to check your nozzle regularly (we recommend at least ONCE PER WEEK). You’ll be surprised how much your production decreases with a worn sand blasting nozzle! Wet blasting & WIN (Water Induction) also available
SANDBLASTING & ABRASIVE BLAST NOZZLES
NOTE: Efficiency drops 1.5% for every 1 psi below 100 at the sand blasting nozzle. This means a 14% efficiency drop at 90 psi, 26% efficiency lost at 80 psi and almost half lost at 60 psi. Efficiency goes up as pressure increases. 120 psi improves performance by 30%. Actual efficiency increase/ decrease will vary depending on abrasive type and size, blast nozzle type, size and wear, hose sizes and wear, temperature, moisture content of compressed air, etc. Use a abrasive wet or dry blast nozzle pressure gauge to measure air pressure at the nozzle. Make allowance for increased air consumption due to wear, air leaks, breathing airline filter, respirator breathing air and any pneumatic equipment using air from the compressor. A good rule of thumb is to use a compressor twice the capacity of the grit consumption.
