Heavy Duty Sand & Abrasive Blast Nozzles
Showing 16–28 of 28 results
-

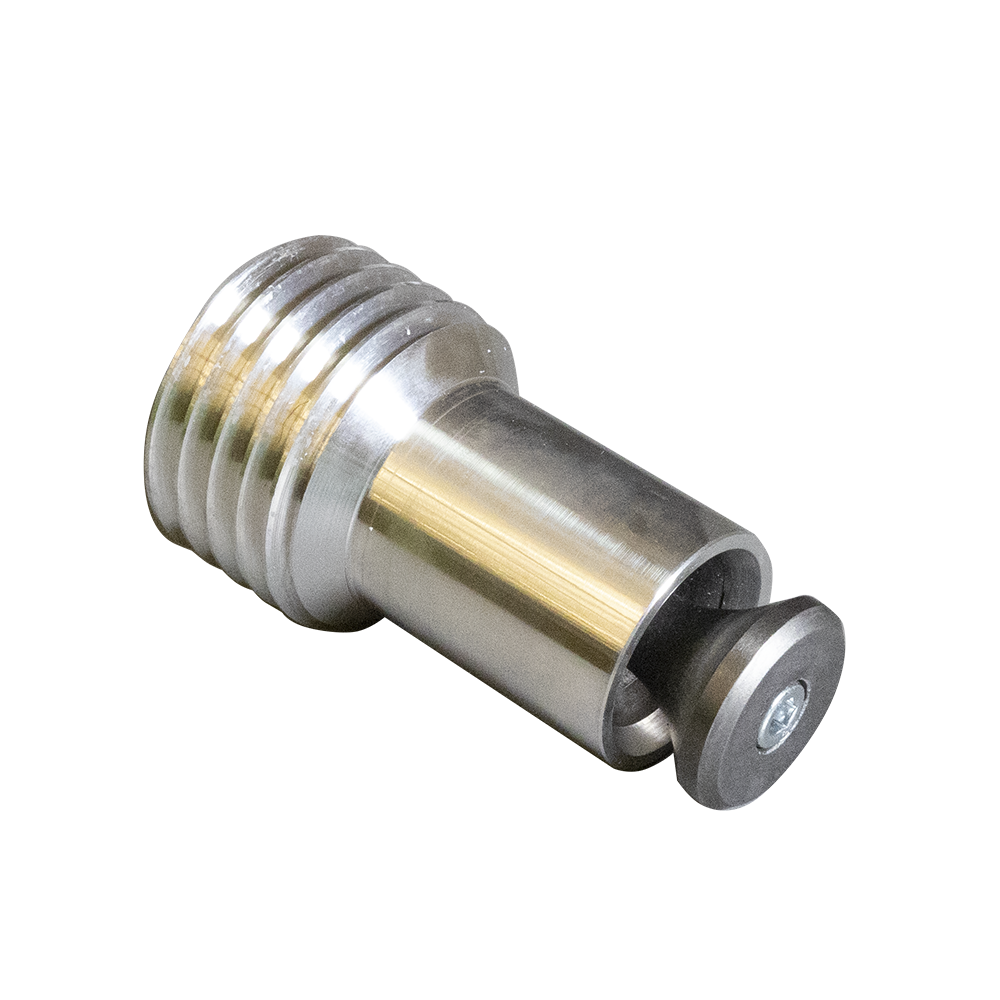

BNATC360CThe 360° internal pipe blasting nozzle is ideal for use when blast cleaning small interior pipes ranging in size from 65 - 125mm in diameter.
- Wear-resistant angle type blasting nozzle
- Made from tungsten carbide
- Up to 400 hours of blast life
- Aluminum thread, 50mm for NHP nozzle holder
- Aluminum jacket
BNATC360CThe 360° internal pipe blasting nozzle is ideal for use when blast cleaning small interior pipes ranging in size from 65 - 125mm in diameter.
- Wear-resistant angle type blasting nozzle
- Made from tungsten carbide
- Up to 400 hours of blast life
- Aluminum thread, 50mm for NHP nozzle holder
- Aluminum jacket
-
- Used for blasting pipes 3"-12" Internal Diameter
- Uses tungsten carbide deflection head and 1/2" throat nozzle
- Select the unit that will best match your Air Supply:
- 1/2" Throat Nozzle: 250 cfm
- 5/8" Throat Nozzle: 400 cfm
- Neither of these packages come with a transport carriage - Order Separately
- Collar and Button 3"-5" Pipes
- Scissor Type 5"-12" Pipes
- Successful Pipe Internal Projects require some specialist knowledge - contact our team for assistance
-
BNASB15MThe "Jumbo RotorBlast Blast Nozzle 5/16" (SKU: BNASB15M) is a high-quality tungsten carbide nozzle, perfectly designed for RotorBlast internal pipe blasting with a 5/16" (8.0mm) orifice and medium thread.- Blast Nozzle Jumbo RotorBlast
- Jumbo RotorBlast Blast Nozzle Tungsten Carbide, 5/16" (8.0mm) Orifice, Medium Thread
- Also fits spin blast / spinblaster
BNASB15MThe "Jumbo RotorBlast Blast Nozzle 5/16" (SKU: BNASB15M) is a high-quality tungsten carbide nozzle, perfectly designed for RotorBlast internal pipe blasting with a 5/16" (8.0mm) orifice and medium thread.- Blast Nozzle Jumbo RotorBlast
- Jumbo RotorBlast Blast Nozzle Tungsten Carbide, 5/16" (8.0mm) Orifice, Medium Thread
- Also fits spin blast / spinblaster
-

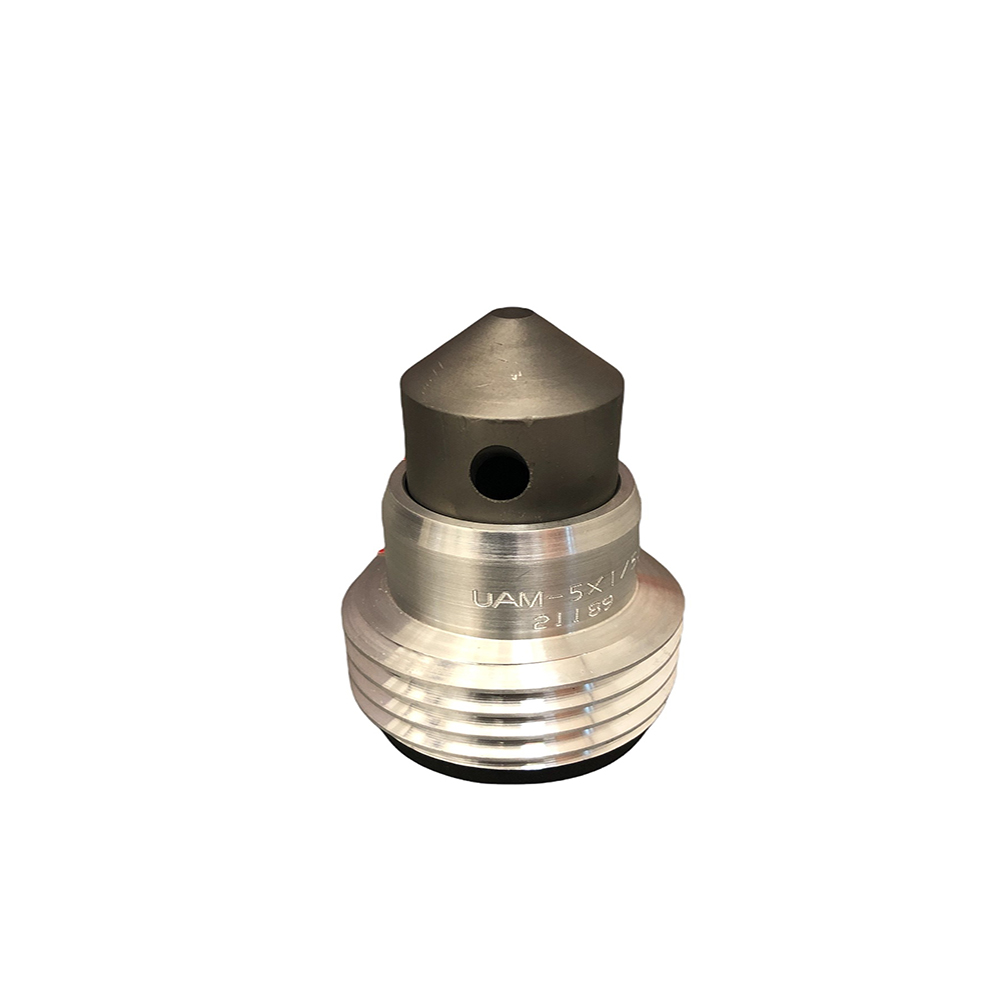

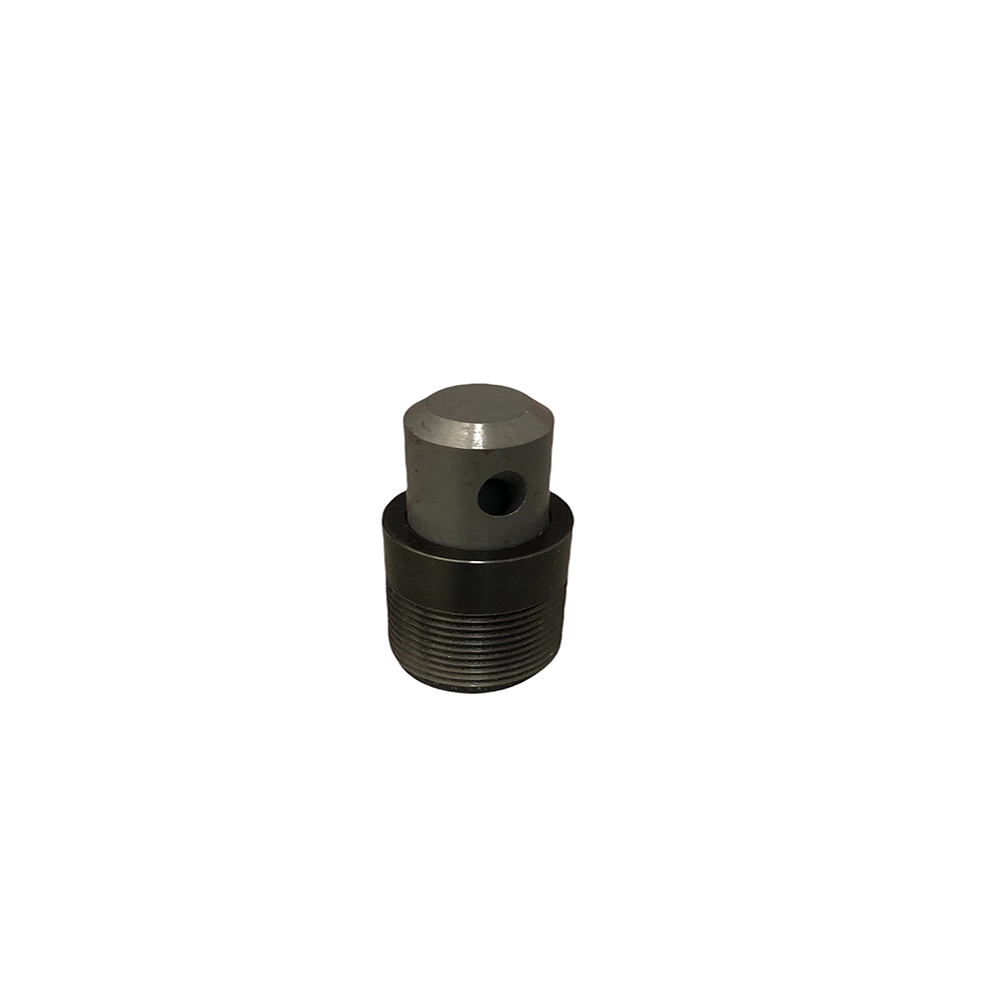

- Ideal for blasting recesses, pipe internals, behind angles, etc.
- 2" UNC (50mm) coarse Contractor thread 'C' or 1 1/4" NPSM (32mm) Fine Industrial thread 'F'
- 3/4" (20mm) throat entry
- 45° single or triple (equi-spaced) side outlets
- Tungsten carbide liner
- **Triple orifice nozzles have triple air & abrasive consumption!
-
BNASB17M- Blast Nozzle Jumbo RotorBlast
- Jumbo RotorBlast Blast Nozzle Tungsten Carbide, 3/8" (9.5mm) Orifice, Medium Thread
- Also fits spin blast / spinblaster
BNASB17M- Blast Nozzle Jumbo RotorBlast
- Jumbo RotorBlast Blast Nozzle Tungsten Carbide, 3/8" (9.5mm) Orifice, Medium Thread
- Also fits spin blast / spinblaster
-
The Water Induction Nozzle (aka WIN nozzle) is an economical way to enter the wet blasting market. Commonly used in smaller projects, it offers excellent water flow control. Additional Details:
- Use with standard dry blasting equipment. No modifications required.
- Connects to standard garden hose, or you can use a tank with a standard 12v pump if you need to add rust inhibitor to the water.
- Typically stocked with tungsten carbide liner and contractor threads, it is also available with silicon nitride liner and/or fine threads. Contact us for details.
-
- 3/4" NPSM (20mm) 'M' thread
- 1/2" (13mm) throat entry
- 45° single or triple (equi-spaced) side outlets
- Tungsten carbide liner
- **Triple orifice nozzles have triple air and abrasive consumption!
-
INH131PBAGThe “Blast Nozzle Wear Size Analyzer Gauge” (SKU: INH131PBAG) efficiently determines the internal diameter and wear level of a blast nozzle orifice, ensuring optimal blasting performance.- Used to determine the internal diameter of a blast nozzle orifice
- Allows you to determine the level of wear of the blast nozzle
- Comes with a removable cap and crayon
- Has size markings to allow you to see quickly what size your nozzle is
- Sold Individually
INH131PBAGThe “Blast Nozzle Wear Size Analyzer Gauge” (SKU: INH131PBAG) efficiently determines the internal diameter and wear level of a blast nozzle orifice, ensuring optimal blasting performance.- Used to determine the internal diameter of a blast nozzle orifice
- Allows you to determine the level of wear of the blast nozzle
- Comes with a removable cap and crayon
- Has size markings to allow you to see quickly what size your nozzle is
- Sold Individually
Part Number Purchase Price INH131PBAG $152.40 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$152.40
-
-
BAHNGKitThe “Blast Nozzle Pressure Test Kit” (SKU: BAHNGKit) by BlastOne ensures quick and accurate nozzle pressure testing. Comes complete with a stainless steel pressure gauge, needles, and a protective leather-bound case.
- For testing air pressure at the nozzle
- Test kit includes:
- Liquid filled stainless steel pressure gauge with dual pressure & efficiency scale
- Four needles and instructions
- Protective leather bound case
BAHNGKitThe “Blast Nozzle Pressure Test Kit” (SKU: BAHNGKit) by BlastOne ensures quick and accurate nozzle pressure testing. Comes complete with a stainless steel pressure gauge, needles, and a protective leather-bound case.
- For testing air pressure at the nozzle
- Test kit includes:
- Liquid filled stainless steel pressure gauge with dual pressure & efficiency scale
- Four needles and instructions
- Protective leather bound case
-
HFANHE1Upgrade your Combo valve system with the Aluminum Nozzle Holder & Blow Down Hose Adapter (SKU: HFANHE1). Expertly designed for a secure fit and built to last, it’s perfect for coupling with the BH20 replacement hose.
- Blowdown Hose Adapter
- Works with Combo valve system
- 1-1/4" NPS Thread
- Use BH20 for blow down replacement hose
HFANHE1Upgrade your Combo valve system with the Aluminum Nozzle Holder & Blow Down Hose Adapter (SKU: HFANHE1). Expertly designed for a secure fit and built to last, it’s perfect for coupling with the BH20 replacement hose.
- Blowdown Hose Adapter
- Works with Combo valve system
- 1-1/4" NPS Thread
- Use BH20 for blow down replacement hose
-

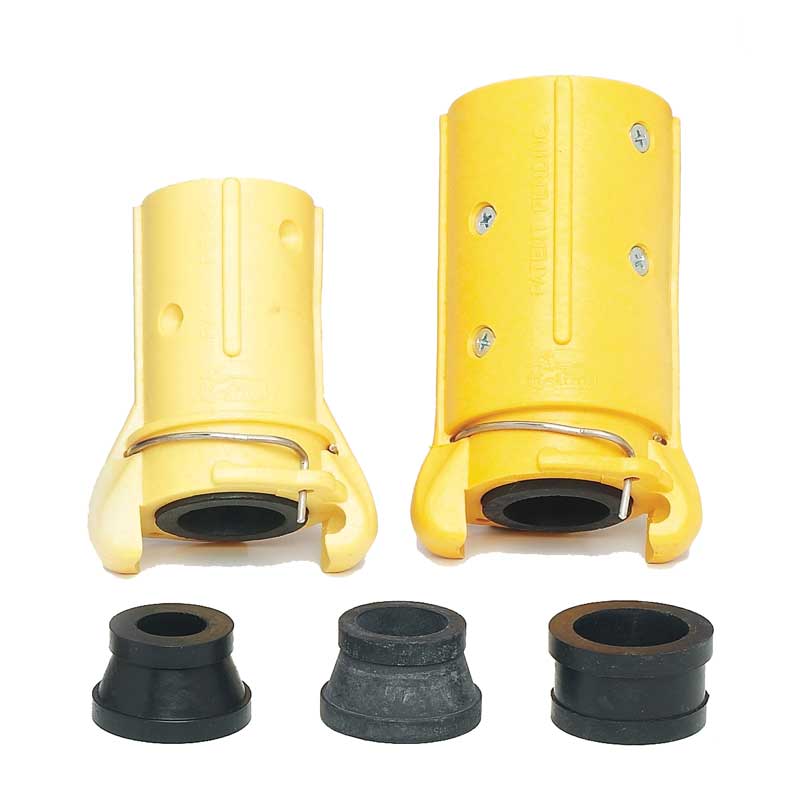

- For use with Nylon Coupling Series: PCG-1; PCG-2; PCG-3;
- Material: Double-lipped rubber
- Compatibility:
- PCG-1: 3/4″ ID and Smaller Blast Hose
- PCG-2: 1″ ID Blast Hose
- PCG-3: 1-1/4″ ID and Larger Blast Hose
- Sold as a pack of 10
-
HFGMRXP- Single Lipped MRL Rubber
- Compatible with Mega Max Couplings
- Large 1 3/4" (45mm) Bore for maximum efficiency
- Pack of 10
HFGMRXP- Single Lipped MRL Rubber
- Compatible with Mega Max Couplings
- Large 1 3/4" (45mm) Bore for maximum efficiency
- Pack of 10
-
HFGMRLPThe "Standard Claw and Bore Metal Coupling Gaskets MRL" (SKU: HFGMRLP) is a durable replacement gasket, designed for standard metallic claw couplings. Sold in packs of 10, suitable for systems blasting over 80psi.- Single Lipped MRL Rubber, Compatible: Standard Claw Metallic Couplings, 1-¼ (32mm) Bore Size, Pack 10
- Work great with blasting systems that blast at pressure over 80psi
HFGMRLPThe "Standard Claw and Bore Metal Coupling Gaskets MRL" (SKU: HFGMRLP) is a durable replacement gasket, designed for standard metallic claw couplings. Sold in packs of 10, suitable for systems blasting over 80psi.- Single Lipped MRL Rubber, Compatible: Standard Claw Metallic Couplings, 1-¼ (32mm) Bore Size, Pack 10
- Work great with blasting systems that blast at pressure over 80psi
A TIP ON WHEN TO REPLACE YOUR SAND BLAST NOZZLE
Even a very small increase in blasting nozzle size will result in a very large increase in ‘air and abrasive consumption’. When worn 1/16” (2mm) larger, it is time to be replaced. Use a size analyzer kit to check your nozzle regularly (we recommend at least ONCE PER WEEK). You’ll be surprised how much your production decreases with a worn sand blasting nozzle! Wet blasting & WIN (Water Induction) also available
SANDBLASTING & ABRASIVE BLAST NOZZLES
NOTE: Efficiency drops 1.5% for every 1 psi below 100 at the sand blasting nozzle. This means a 14% efficiency drop at 90 psi, 26% efficiency lost at 80 psi and almost half lost at 60 psi. Efficiency goes up as pressure increases. 120 psi improves performance by 30%. Actual efficiency increase/ decrease will vary depending on abrasive type and size, blast nozzle type, size and wear, hose sizes and wear, temperature, moisture content of compressed air, etc. Use a abrasive wet or dry blast nozzle pressure gauge to measure air pressure at the nozzle. Make allowance for increased air consumption due to wear, air leaks, breathing airline filter, respirator breathing air and any pneumatic equipment using air from the compressor. A good rule of thumb is to use a compressor twice the capacity of the grit consumption.
