Abrasive Blasting Equipment Deadman Control Systems & Remote Control Systems (RCS Systems) for safe operation of sand blast pots
Sandblaster safety is paramount for any blasting operation and on every jobsite. BlastOne offers both pneumatic and electric remote control handles and accessories to give operators the control necessary to keep themselves safe and maintain control over the blasting system.
Check out out our line of Deadman Control Handles and equipment.
Showing 1–15 of 19 results
-

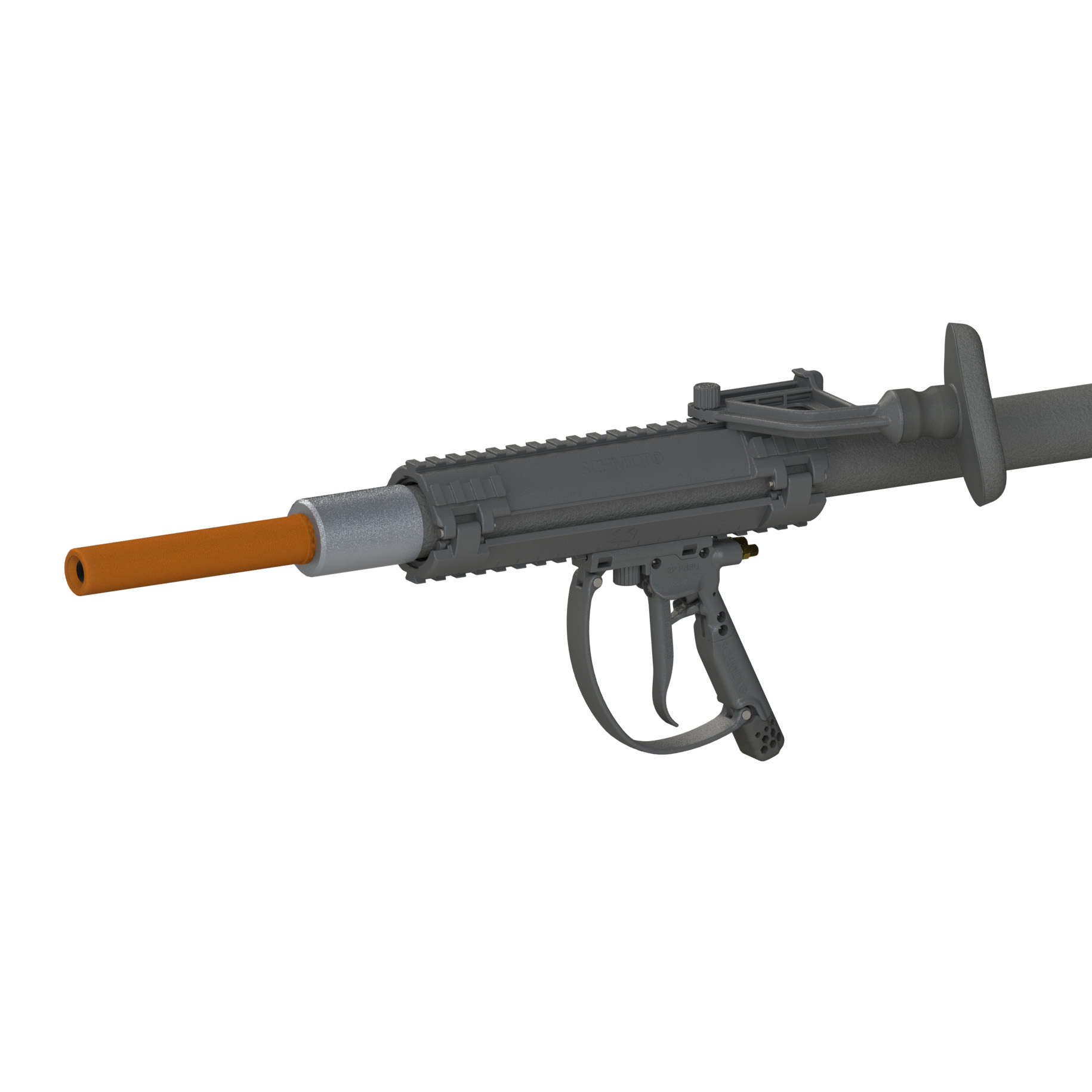

The latest innovation in deadman safety technology from Axxiom is the BAABS (Blasting Accessories and Assist Bracket System). Intended to be the safest deadman on the market, it mechanically prevents inadvertent activation. The Schmidt BAABS deadman is such a leap forward in safety technology that Axxiom provides them as standard equipment with most new blast pot or valve retrofit purchases.*
All BAABS use the Axxiom G3 trigger deadman configurable as either electric or pneumatic.
All BAABS units are capable of being fitted with the BAABS blast light for improved vision in dim or dusty environments. (Note: When the light is used with the Subcompact BAABS, there is not room for the thrust brace.)
*The standard configuration provided with new equipment is the Compact size. See Product Description tab for all size options.
-

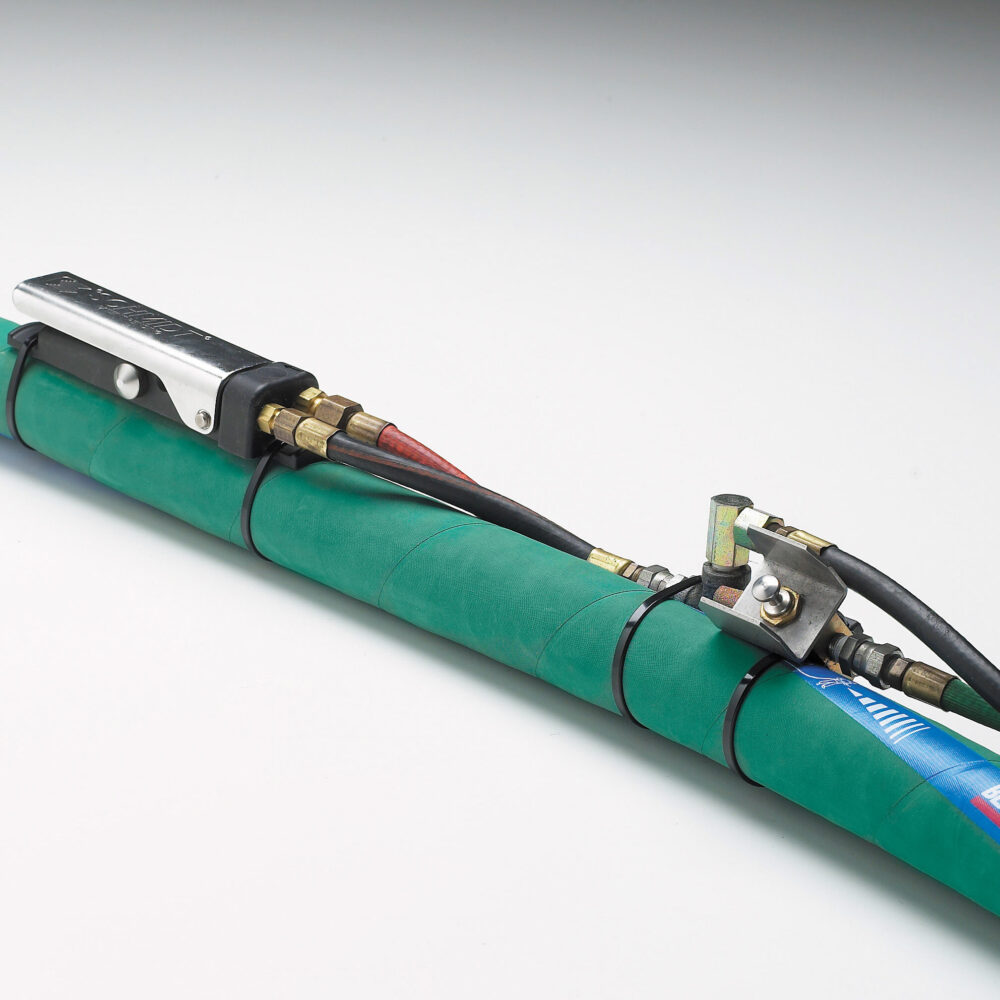

DM2152ACRK
- Pneumatic Complete Retrofit kit includes:
- Triple-line coupled remote control hose
- Control hose connections for air supply
- Auto air valve and Thompson Valve II metering valve
- Pneumatic push-pull abrasive on-off switch
- Response deadman handle
DM2152ACRK- Pneumatic Complete Retrofit kit includes:
- Triple-line coupled remote control hose
- Control hose connections for air supply
- Auto air valve and Thompson Valve II metering valve
- Pneumatic push-pull abrasive on-off switch
- Response deadman handle
-

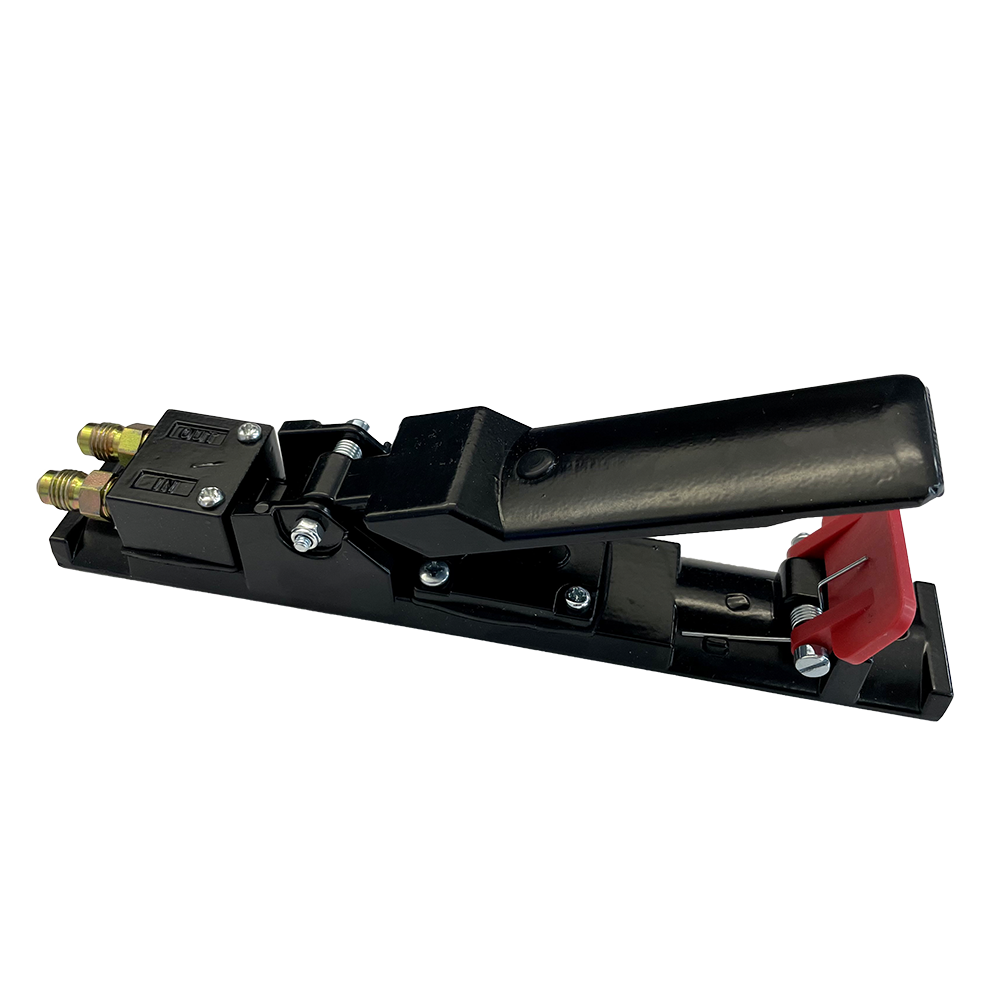

DMRGN1000
- Conventional bleeder-type deadman control handle
- 1/4" (6mm) (supply) x 1/8" (3mm) (return) threaded connectors
- Large lever design
- Use only with equipment designed for bleeder-style handles - DO NOT use with Combo or Thompson Valves
DMRGN1000- Conventional bleeder-type deadman control handle
- 1/4" (6mm) (supply) x 1/8" (3mm) (return) threaded connectors
- Large lever design
- Use only with equipment designed for bleeder-style handles - DO NOT use with Combo or Thompson Valves
-
- Industry Standard - Manufactured by Schmidt
- Compact, slimline design
- Light handle action - 30% easier then other handles to hold down
- Available as Electric or Pneumatic
-

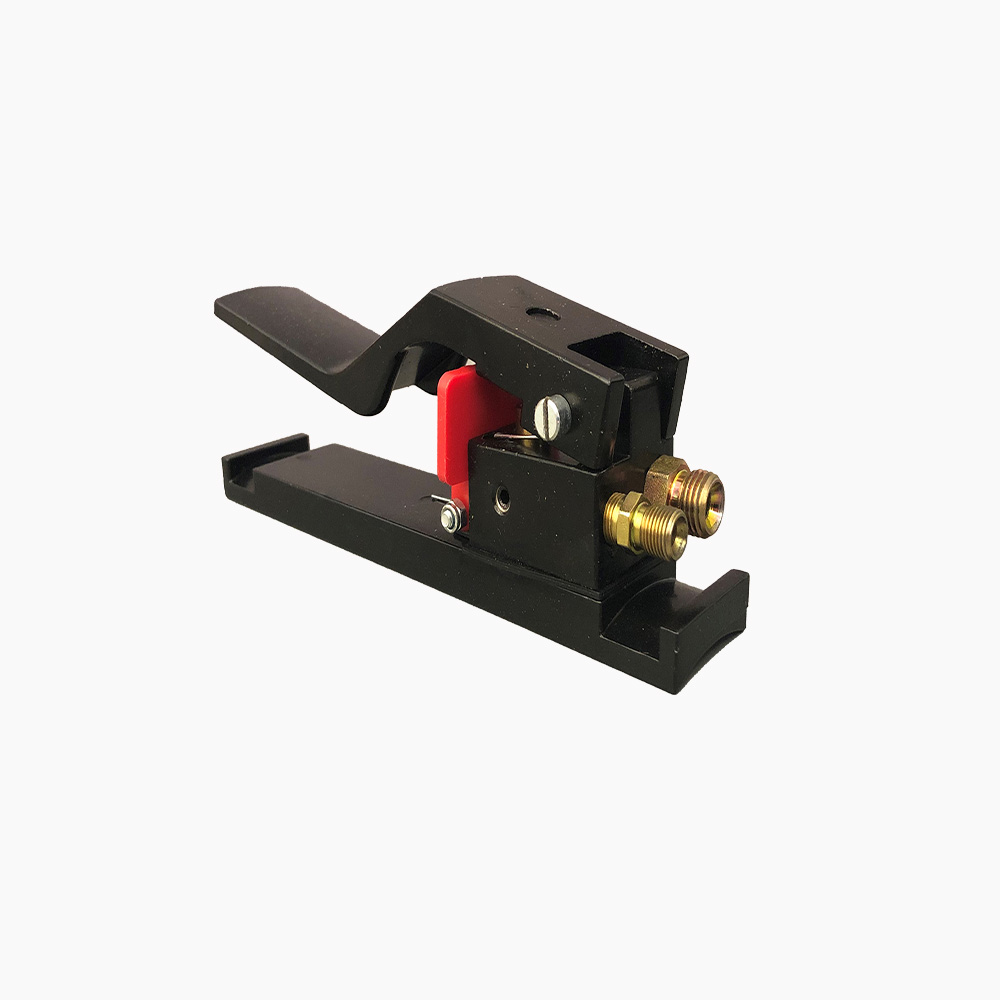

DM2263001
- Pneumatically operated via twinline hoses.
- Works with all twinline pneumatic remote control systems
- 1/4"(6 mm) air supply threaded connector
- 1/8" (3 mm) air return threaded connector
- Operate by pulling down the safety flap and holding the large handle down
DM2263001- Pneumatically operated via twinline hoses.
- Works with all twinline pneumatic remote control systems
- 1/4"(6 mm) air supply threaded connector
- 1/8" (3 mm) air return threaded connector
- Operate by pulling down the safety flap and holding the large handle down
-

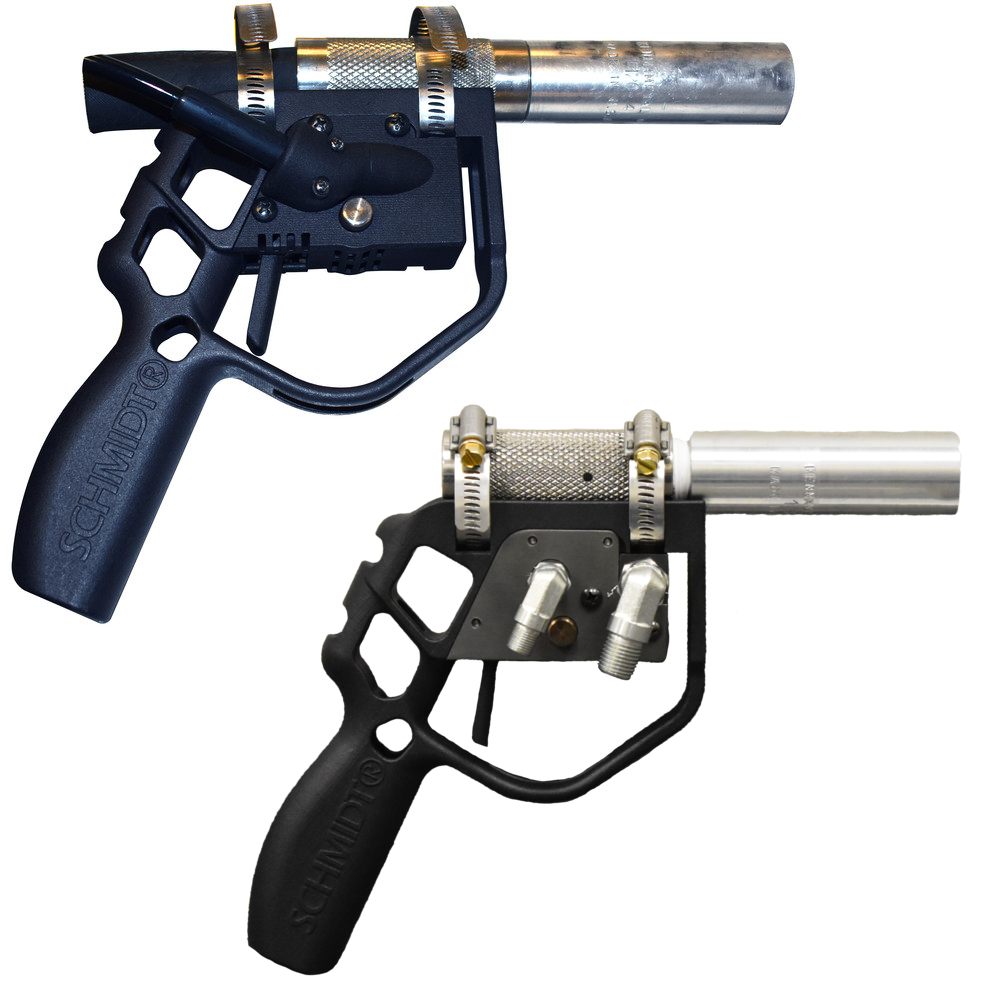

- Tried and proven deadman controls now available in a trigger style option
- Reduces strain on the operator
- Great for smaller nozzles #3 to #6
- Available as electric or pneumatic deadman controls
- Sold Individually
- Genuine Parts - Manufactured by Schmidt® / Axxiom Manufacturing
-

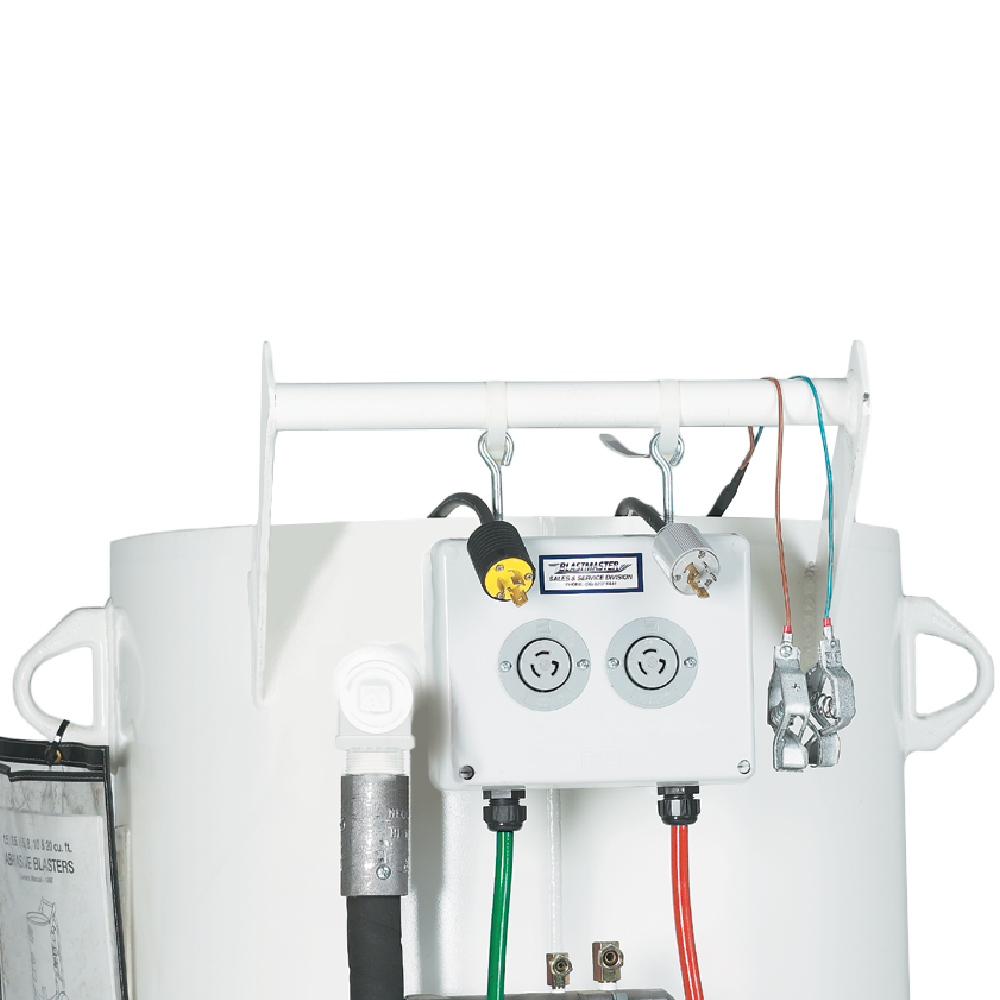

DMECK100B
- 12 Volt Electric Controls
- Contains all components in a neat weather-proof box
- Comes with 5 metre battery cable with alligator clips
- Comes with response electric deadman handle, 20 metre deadman cable and TwistLok plug connectors
DMECK100B- 12 Volt Electric Controls
- Contains all components in a neat weather-proof box
- Comes with 5 metre battery cable with alligator clips
- Comes with response electric deadman handle, 20 metre deadman cable and TwistLok plug connectors
-

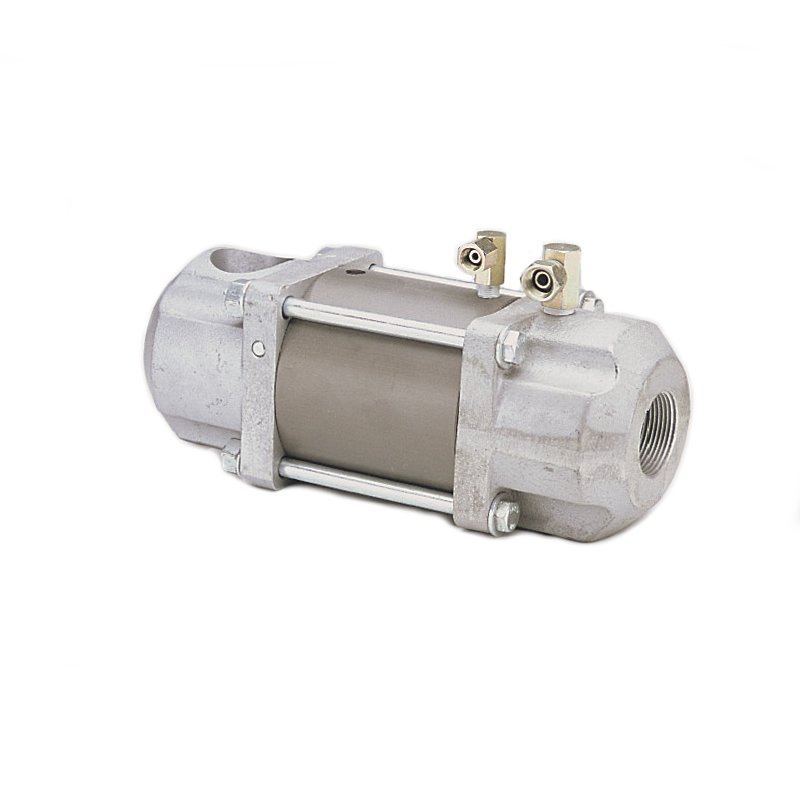

DM2223000
- Combo Valve
- Combines inlet and exhaust valve functions
- Full-ported, 1¼ (32 mm) thread, inlet side
- Pneumatic operation requires 60psi to close exhaust valve
- Rugged, compact design
- Simple to install and service
DM2223000- Combo Valve
- Combines inlet and exhaust valve functions
- Full-ported, 1¼ (32 mm) thread, inlet side
- Pneumatic operation requires 60psi to close exhaust valve
- Rugged, compact design
- Simple to install and service
-
- Deadman-operated control valve (solenoid). Pneumatic or electric versions available.
- Uses an electric or pneumatic charge to push over the shuttle which opens ports to control the deadman system
- Provides sharp, clean and rapid response
- Improves safety
- Installs between twinline and inlet valve
- Reduces wear on both the remote control exhaust valve and the abrasive metering valve
-
DM226300299Ensure the smooth operation of your Pneumatic Response Deadman Handle with the "Response Deadman Service Kit" (SKU: DM226300299). This complete kit features genuine parts by Schmidt/Axxiom Manufacturing for efficient in-field repairs.
- Service Kit for Response Deadman
- Service Kit for Pneumatic Response Deadman Handle
DM226300299Ensure the smooth operation of your Pneumatic Response Deadman Handle with the "Response Deadman Service Kit" (SKU: DM226300299). This complete kit features genuine parts by Schmidt/Axxiom Manufacturing for efficient in-field repairs.- Service Kit for Response Deadman
- Service Kit for Pneumatic Response Deadman Handle
-
DM222300099
- 2223-000-99
- Full Repair Kit for the Combo Valve.
DM222300099- 2223-000-99
- Full Repair Kit for the Combo Valve.
-

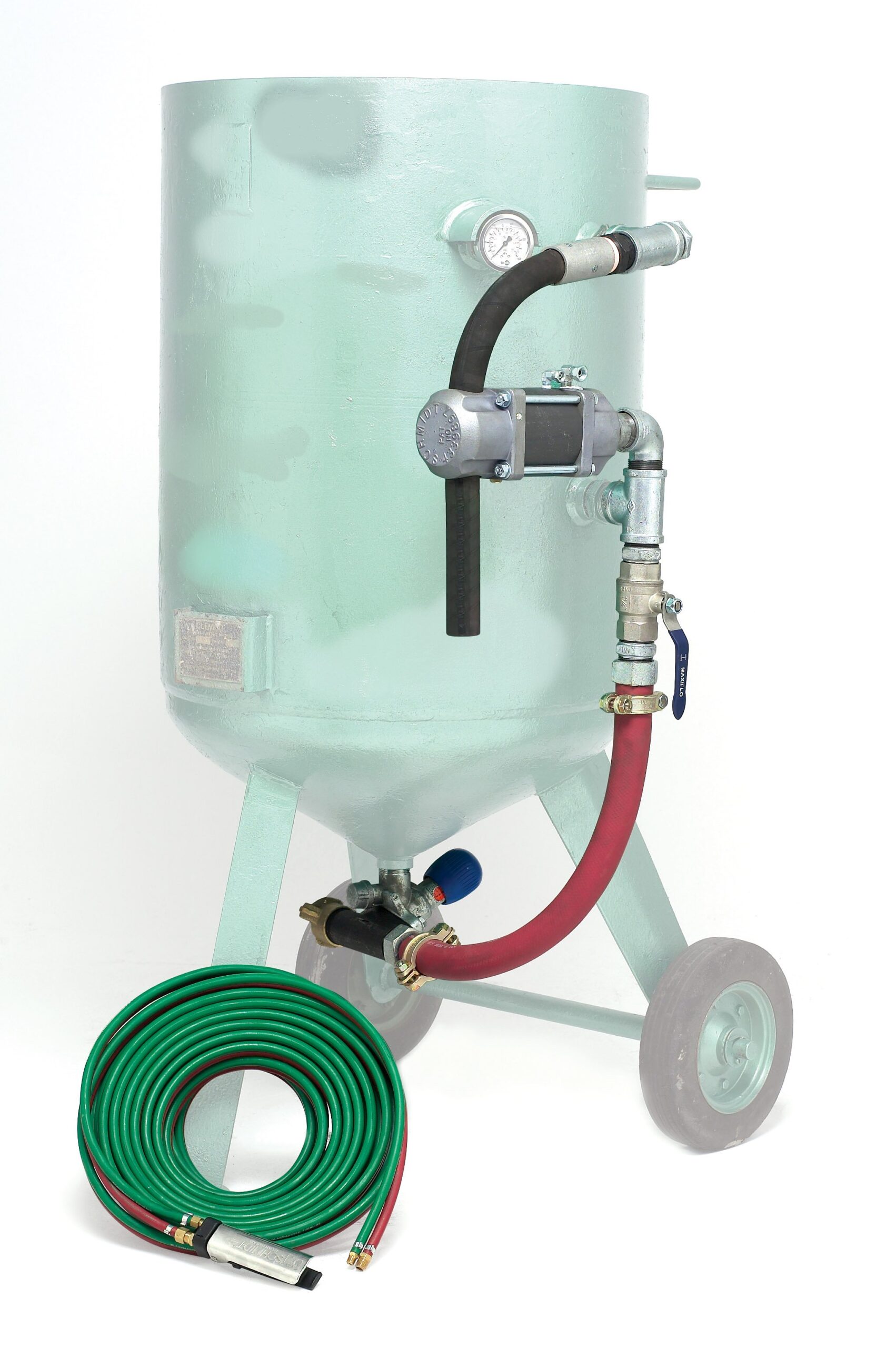

DM2223RK00
- Kit is designed to replace the Dual inlet/outlet valve systems
- Retrofit Kit includes:
- 1 -¼ (32 mm) Combo Valve with blowdown hose
- Response deadman control handle and twinline hose
- All fittings needed
- Note: Does not include the Pusher Line Kit or MicroValve - order separately
DM2223RK00- Kit is designed to replace the Dual inlet/outlet valve systems
- Retrofit Kit includes:
- 1 -¼ (32 mm) Combo Valve with blowdown hose
- Response deadman control handle and twinline hose
- All fittings needed
- Note: Does not include the Pusher Line Kit or MicroValve - order separately
-
- Abrasion-resistant, flex-coated control cable
- 12 Volt rated for electric deadman controls
- 3-Pin Twistlock connectors used for all deadman cables
- 2-wire is used for Battery connections only
- Optional heavy duty cable for use with steel grit or other high wear areas
-
The Sure-Fire Electric Deadman Remote Control Handle (SKU: P-DMWTXE) is a compact, hands-free electrically-operated tool. Available in 12V and 24V options, it's designed for enhanced operational control. Note: Accessories like TwistLok plug and extension cable sold separately.
- Compact 'hands-free' design
- Ball and chain not included - operator must use as per instruction manual
- 12 Volt or 24 Volt electric operation
- 2-wire is standard or 3-position toggle switch for use with integrated remote abrasive cut-off switch
- Order TwistLok plug and/or extension cable separately
-

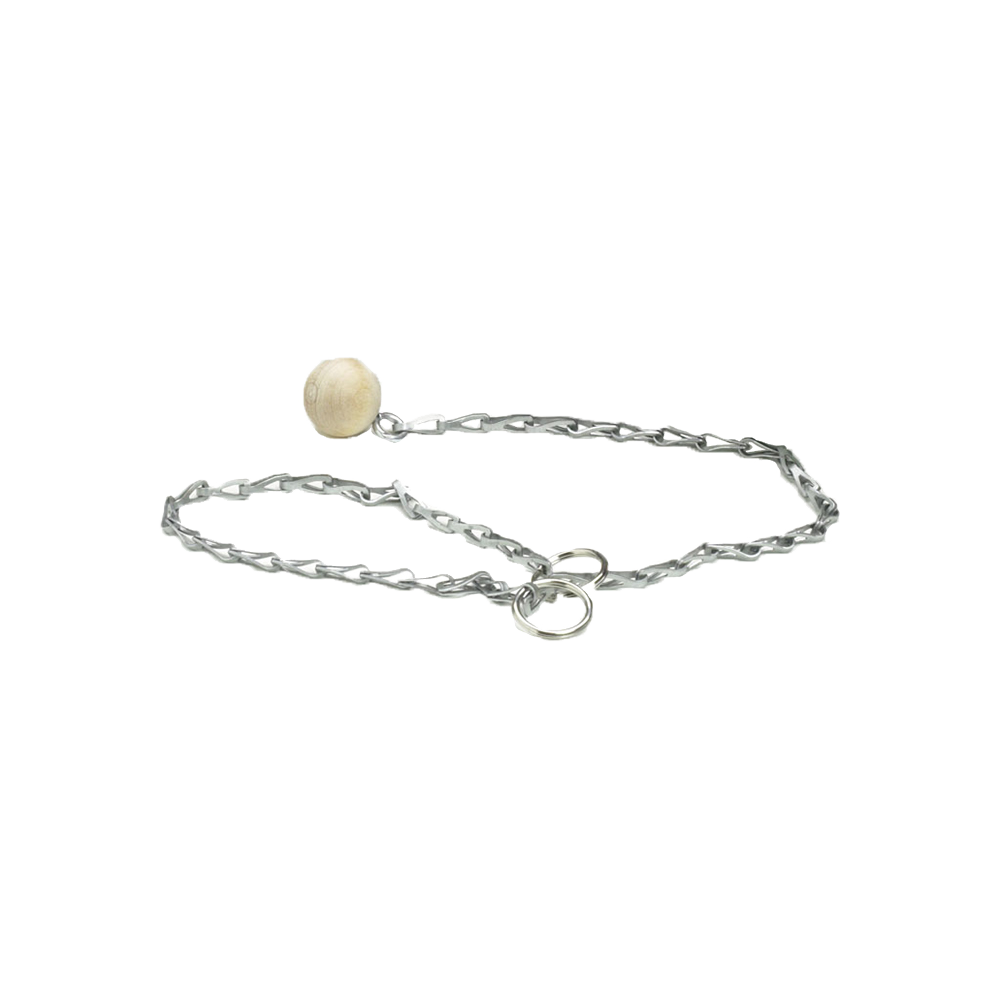

DMWTX1102
- Replacement ball and chain for Western Tech remote control handle
- Operator must use as per instruction manual and conduct Risk Assessment based on end user and site conditions to determine if this product can be upgraded to a safer option.
- BlastOne Consider that it is not safe to use a ball to 'trigger' the deadman
- Use this ball and chain as a door knocker instead
- Sold Individually
DMWTX1102- Replacement ball and chain for Western Tech remote control handle
- Operator must use as per instruction manual and conduct Risk Assessment based on end user and site conditions to determine if this product can be upgraded to a safer option.
- BlastOne Consider that it is not safe to use a ball to 'trigger' the deadman
- Use this ball and chain as a door knocker instead
- Sold Individually
