Abrasive Blasting Metering Valves & Parts
The heart of any blast pot is the abrasive metering valve, which acts as the carburetor to feed the blasting abrasive into the high pressure & high velocity compressed air stream. The blast abrasive, whether GMA Garnet, Steel Grit, Blasting Sand, Aluminium Oxide, Glass Bead Abrasive – is feed precisely grain by grain – to provide optimum blasting results. Too much abrasive will flood the airstream and slow down the blasting operation. Too little abrasive with starve the blasting compressed air stream, and be ineffective. Setting the abrasive metering valve accurately is imperative to high production sand blasting operations. If you are looking for genuine Schmidt Thompson Valves, Micro Valve or TeraValve – BlastOne has these available for your convenience.
Showing 1–15 of 66 results
-
- Pressure-release deadman control valve i.e., blast machine depressurizes when the deadman handle is released.
- Used when an overhead hopper automatically feeds abrasive into a blast machine.
- Rugged stainless steel body, compact, isolated 2-bolt construction.
- Doubles blast machine refill cycle time.
- Virtual Position Indicator illustrates orifice size, giving the ability to set abrasive flow quickly and consistently.
- Set and forget – flow rates stay set where you put them.
- High wear, rugged plunger seal.
- Stainless steel body for long life.
- Improved urethane clean-out port enabling quick removal of obstructions while improving port and valve life.
- Fit a rebuild kit while the valve is still fitted to the blast machine.
- Sold individually.
- Genuine Products – Manufactured by Schmidt / Axxiom Manufacturing
-

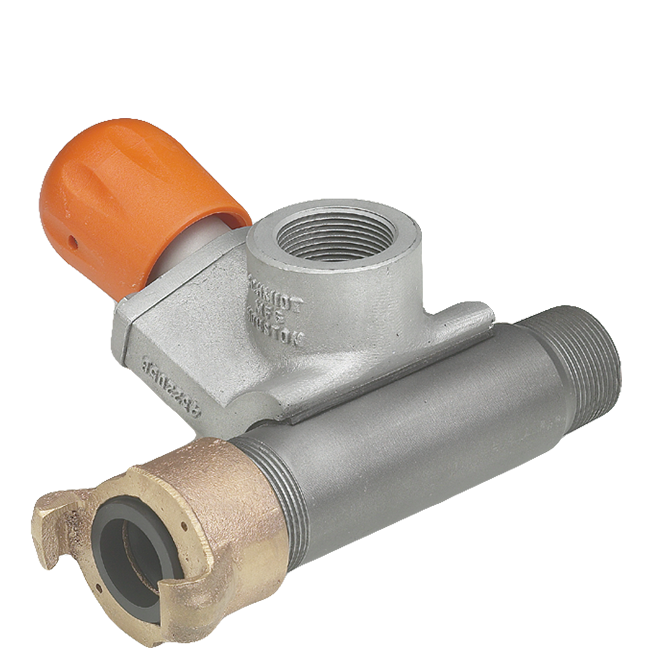

Schmidt changed the abrasive blasting industry when they introduced the MicroValve™. Now known as the MicroValve I (or the Original Microvalve), it is still available although most pressure-release Schmidt pots now use the newer MicroValve III®.
It features:
- Simple threaded screw-type metering
- Hardened steel threaded base nipple
- (The brass threaded coupling shown is available separately.)
- Genuine Products - Manufactured by Schmidt® / Axxiom Manufacturing
-
- The original Thompson® Valve invented by Bob Schmidt
- Suits a pressure hold system, which retains the pressure in the blast pot, until the deadman handle is depressed
- Meters the flow of blasting grit, garnet abrasive sand
- 3 Nipple size configurations:
- 1 ¼ (32 mm) x 1 ¼ (32 mm)
- 1 ½" (38 mm) x 1 ½" (38 mm)
- 2" (50 mm) x 2" (50 mm)
- Threaded-plunger metering design with air actuated operation
- The Thompson® Valve is suitable for use with all approved blasting abrasives
- Fits most sand blast hoppers, blast pots or abrasive blasting machines
- Genuine Parts - Manufactured by Schmidt® / Axxiom Manufacturing
-

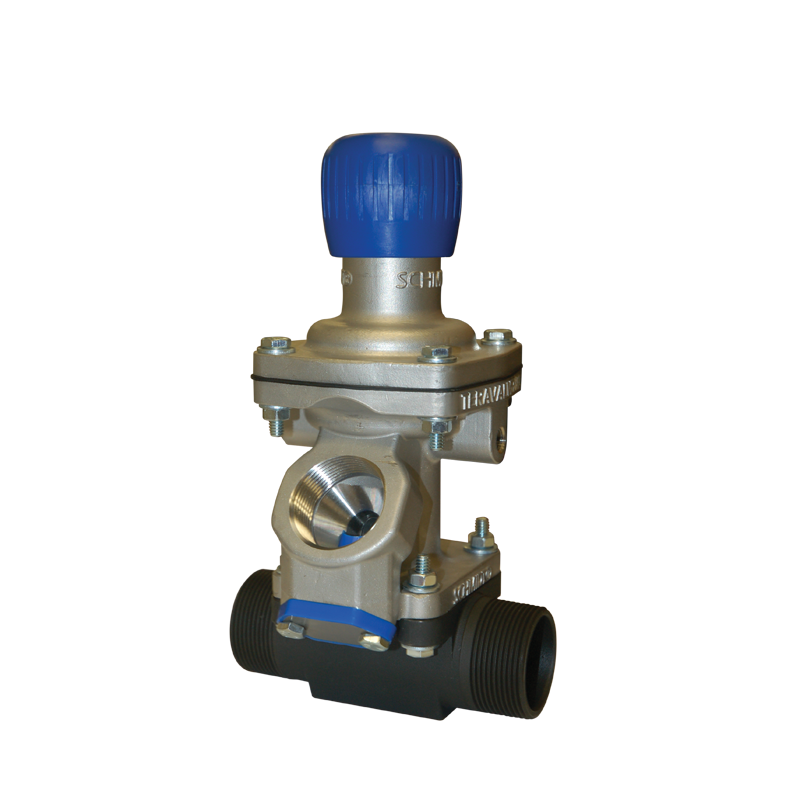

The industry-proven Schmidt TeraValve™ XL metering valve is revolutionary in its ability to provide high performance abrasive metering while boasting an enhanced service life.
- Durable. The XL (extended life) technology offers more durability - even when blasting with aggressive media like aluminum oxide or steel grit.
- Convenient. No special modifications are required to swap an older pressure-hold valve (like the Thompson) to a Tera. Even older pressure-release pots can be upgraded with a TeraValve Retrofit Kit, as long as there is at least 6" clearance from the bottom of the pot.
- Preferred. BlastOne provides the Tera Valve as standard equipment on all new blast equipment. In addition, we use them in our own rental fleet.
-
- Will transform your blast pot into a pressure hold system
- Retrofit Kit includes:
- Thompson Valve Series II with TC Sleeve
- Full pusherline kit
- Automatic air valve and all interconnecting hoses
- Control line strainer and pneumatic control valve
- Response pneumatic deadman handle and Twinline
-
GV214900099- Schmidt abrasive blasting equipment / Axxiom Manufacturing part number 2149-000-99
- Repair Kit for Thompson Valve
- Complete Repair kit for Old Style Thompson Valve including the Tungsten Carbide Plunger
GV214900099- Schmidt abrasive blasting equipment / Axxiom Manufacturing part number 2149-000-99
- Repair Kit for Thompson Valve
- Complete Repair kit for Old Style Thompson Valve including the Tungsten Carbide Plunger
Part Number Purchase Price GV214900099 $983.90 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$983.90
-
-

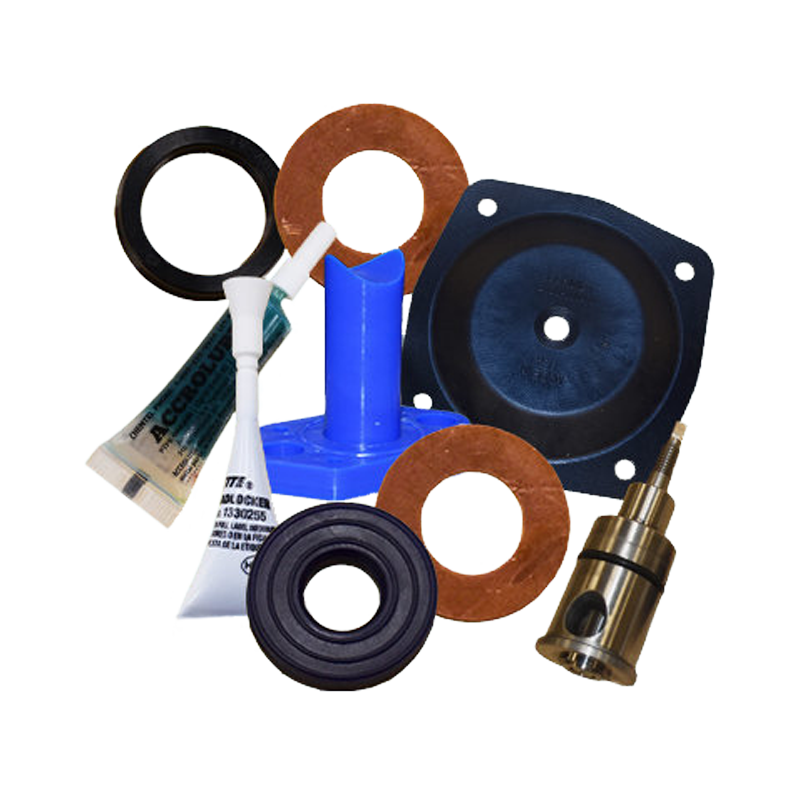

GV213000099- OEM Rebuild Kit for TeraValve™ XL
- Includes Tungsten Carbide Sleeve & Plunger along with Seal kit
- Schmidt® / Axxiom part # 2130-000-99
- Includes: GV213000004, GV213000006, GV213000007, GV213000008, GV213000009, GV213000010
GV213000099- OEM Rebuild Kit for TeraValve™ XL
- Includes Tungsten Carbide Sleeve & Plunger along with Seal kit
- Schmidt® / Axxiom part # 2130-000-99
- Includes: GV213000004, GV213000006, GV213000007, GV213000008, GV213000009, GV213000010
Part Number Purchase Price GV213000099 $1,279.40 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$1,279.40
-
-
Have a good pot that you hate to throw away? The TeraValve™ Complete Blast Pot Retrofit Kit allows you to obtain state-of-the-art pressure-hold abrasive metering technology and save money in the process! Details as follows:
- Your existing pot must be structurally sound and must have at least 150mm clearance below it.
- The retrofit kit includes a new TeraValve™ as well as all other valves, piping, deadman handle/controls, and hoses required for a complete upgrade.
- Note: Handway and pop-up components are available separately, if needed. In addition, you may want to consider the optional VBS II muffler and/or a union-end ball valve / quick connect (if you have the necessary clearance). See Related Products below.
- Retrofit kits are available in either pneumatic or electric and are offered in both 32mm and 38mm valve sizes.
- Installation instructions are included in the box (and under the Documents tab here). If installation assistance is needed, call us for friendly tech support via phone or we can arrange to have our technicians perform the installation for you.
-

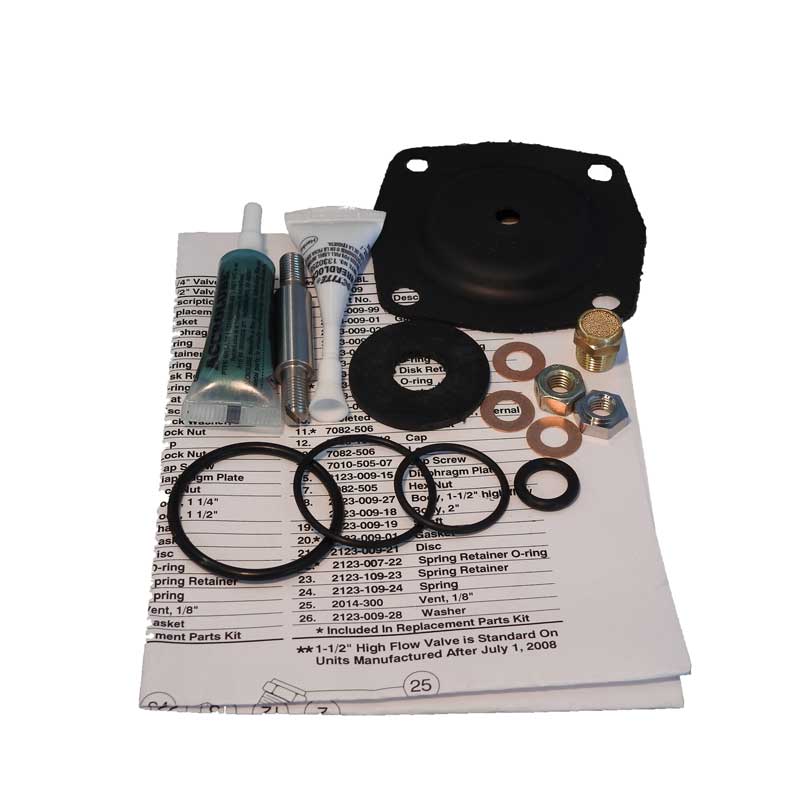

DM212300699- 2123-006-99
- Service Kit for the 1" (25mm) Auto Air Valve.
DM212300699- 2123-006-99
- Service Kit for the 1" (25mm) Auto Air Valve.
Part Number Purchase Price DM212300699 $138.30 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$138.30
-
-

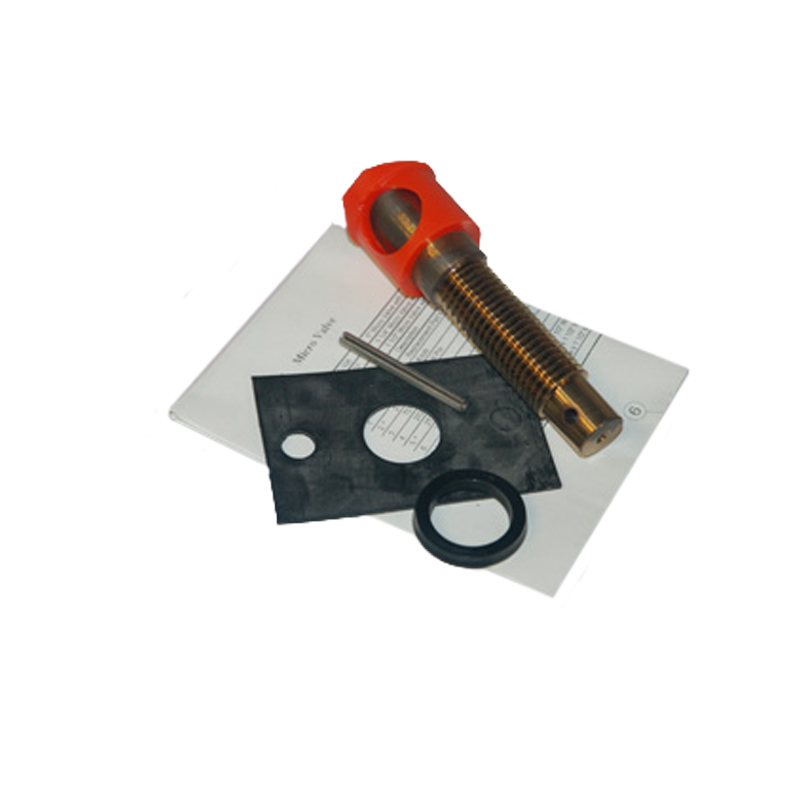

GV212510099- OEM Complete Service Kit suit MicroValve® 1
- Schmidt / Axxiom Part # 2125-100-99
- Includes 1 (ea) of GV212500004, GV212500005, GV212500009, GV212510008, and GV214800006
GV212510099- OEM Complete Service Kit suit MicroValve® 1
- Schmidt / Axxiom Part # 2125-100-99
- Includes 1 (ea) of GV212500004, GV212500005, GV212500009, GV212510008, and GV214800006
Part Number Purchase Price GV212510099 $325.30 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$325.30
-
-

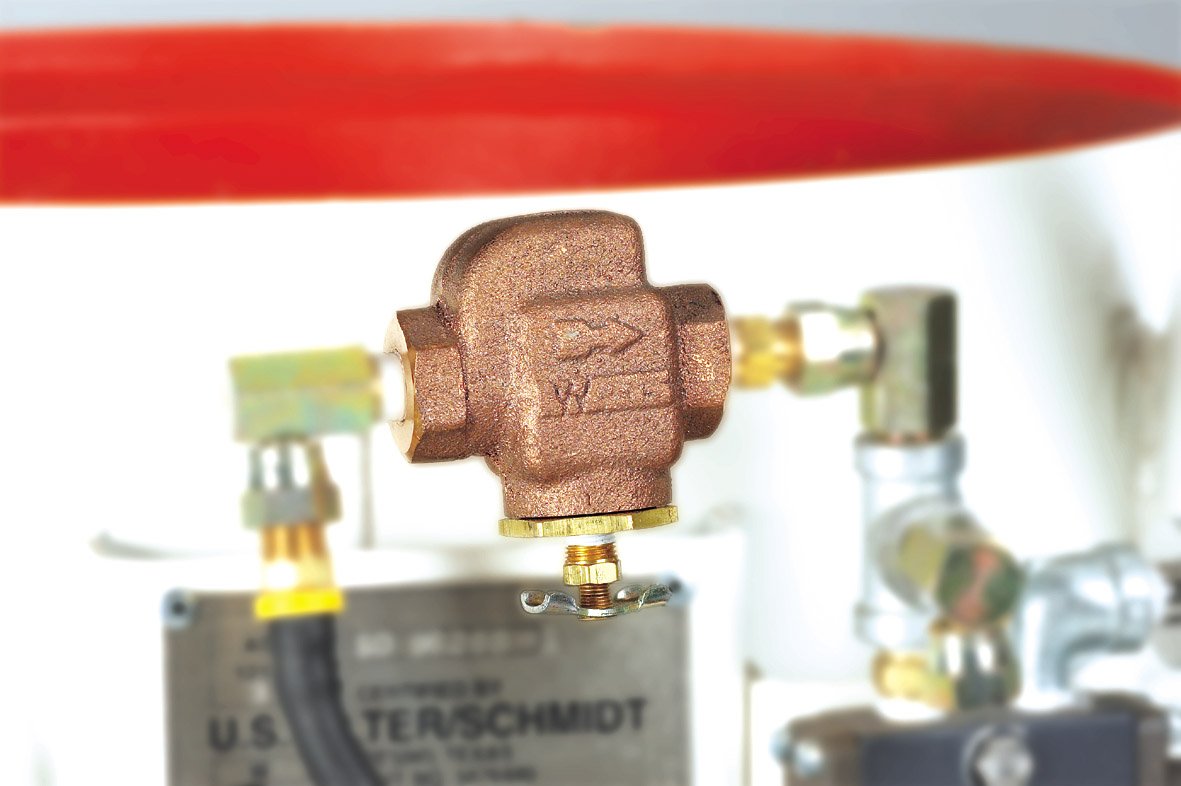

AF230190290- Keeps Abrasive grit and dust out of the controls of your blast pot
- Helps maintain valve response and speed
- Extends valve seal life
- Must have essential for any blast pot.
- Easy to maintain and clean
- Uses a 90 micron bronze element
- 1/4" inlet fittings
AF230190290- Keeps Abrasive grit and dust out of the controls of your blast pot
- Helps maintain valve response and speed
- Extends valve seal life
- Must have essential for any blast pot.
- Easy to maintain and clean
- Uses a 90 micron bronze element
- 1/4" inlet fittings
Part Number Purchase Price AF230190290 $206.00 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$206.00
-
-
GV213000006- Replacement OEM Plunger for TeraValve™ XL
- Tungsten Carbide for long life
- Schmidt® / Axxiom part # 2130-000-06
- NOTE - this is included in the Extended Rebuild kit GV213000099
GV213000006- Replacement OEM Plunger for TeraValve™ XL
- Tungsten Carbide for long life
- Schmidt® / Axxiom part # 2130-000-06
- NOTE - this is included in the Extended Rebuild kit GV213000099
Part Number Purchase Price GV213000006 $653.40 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$653.40
-
-
BlastOne has replacement parts for all Axxiom / Schmidt metering valves. This group includes the various sizes of pipe nipples, at the bottom of the base.- 19mm x 19mm (¾" x ¾") (Axxiom part #: 2130-005-12)
- 25mm x 32mm (1" x 1-¼") (Axxiom part #: 2130-006-12)
- 32mm x 32mm (1-¼" x 1-¼") (Axxiom part #: 2130-007-12)
- 38mm x 38mm (1-½" x 1-½") (Axxiom part #: 2130-008-12)
- NEW - 51mm x 51mm (2" x 2") (Axxiom part #: 2130-009-12F), offers maximum flow for high volume applications, such as VertiDrive robot.
- Base of Hardened Steel for extended usability
- Genuine Schmidt® Product
-
WHEL999314VLP-24 MagnaValve, 200-1000 Lbs flow rate, no sensor, 2.5" high 24 VdcWHEL999314VLP-24 MagnaValve, 200-1000 Lbs flow rate, no sensor, 2.5" high 24 VdcPart Number Purchase Price WHEL999314 Request Quote Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.Request Quote
-
-

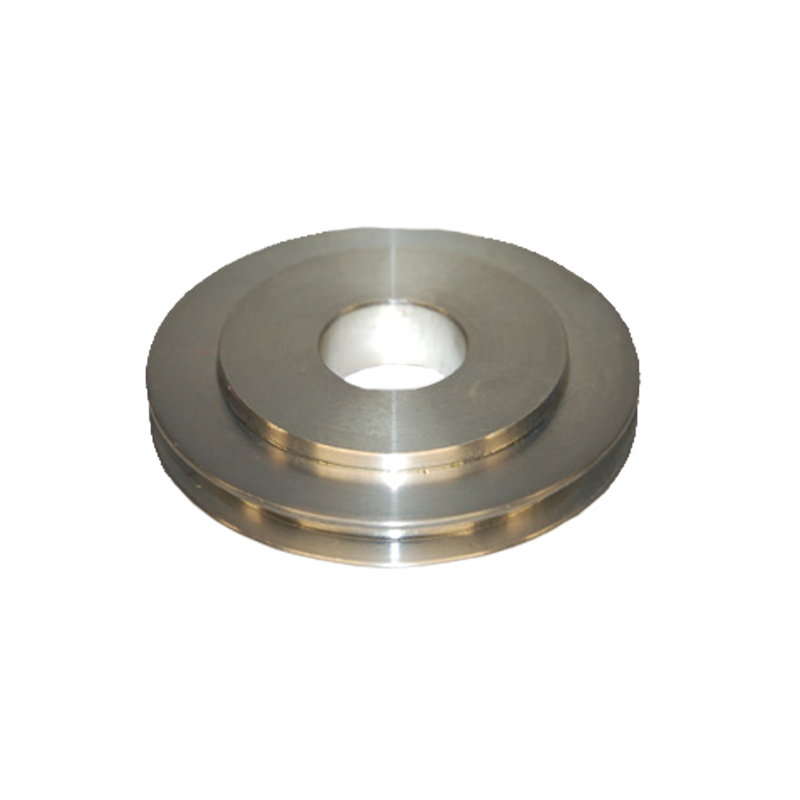

Part Number Purchase Price DM222300011 $99.30 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$99.30
-
BlastOne is a leading supplier of sandblast valves to the global corrosion control industry. If you are needing abrasive mixing valves, sandblaster metering valves, deadman valves, auto air check, air pressure regulators, exhaust valves, full bore ball or inlet valves, BlastOne is ready to ship to your location.
We are proud suppliers of Schmidt Micro, Thompson and Tera Valves and offer their corresponding service and replacement kits. When it comes to sandblasting valves, parts, and accessories we offer superior equipment.
