Blasting & Painting Industry Moisture Removal Systems & Equipment
Air Prep Systems
Having dry and high pressure (above 100 psi) compressed air is an essential ingredient in an industrial sandblasting operation. Whether you are blasting in the open or in an enclosed industrial blasting room, an ample supply of dry compressed air will make your job easier, make your sandblasting production more efficient and dramatically reduce downtime and time wastage due to blast abrasive clumping. It has the added advantage of being able to optimize your grit valve or abrasive valve – to reduce abrasive consumption. The best and most economical method of removing moisture from the compressed air stream – is using a air prep system or sandblasting air dryer. These abrasive blasting air dryers have large ports and non-restricted air passages which results in no or minimal pressure loss/pressure drop through the air prep system.
Showing all 3 results
-

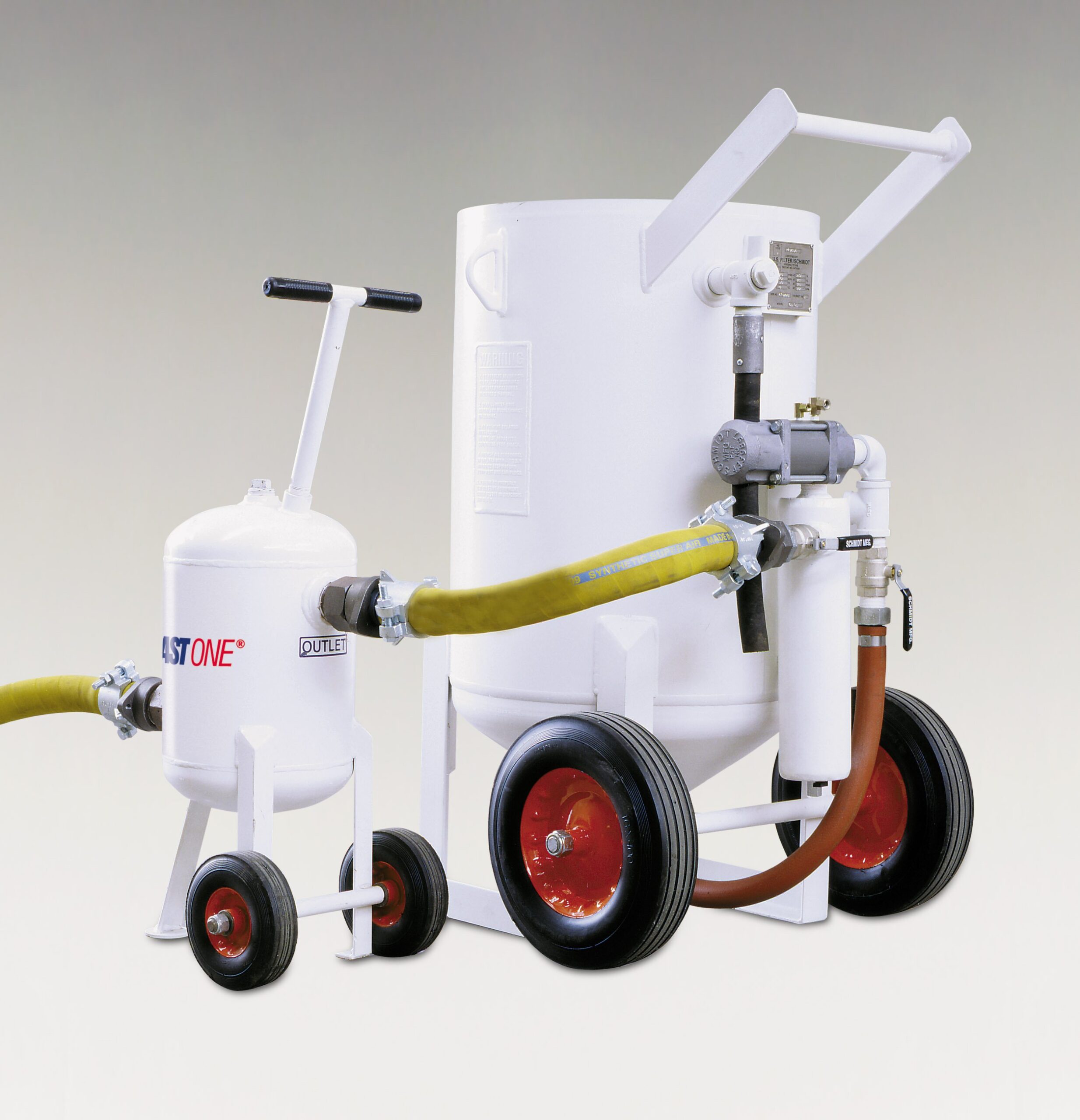

- Inlet size 2" (50 mm) female thread
- Outlet sizes: 2" (50 mm) female thread - 1" (25 mm) female thread - plugged (top outlet)
- Rated for up to 800 cfm airflow volume at 150 PSI
- Connected in-line close to blast machine
- Expansion flow-chamber design with internal stainless steel coalescer
- Highly effective moisture droplet removal for peak productive blasting with minimal pressure loss
- Supplied with manual drain valve
- Includes axle, wheels and handle
- Air fittings not included - specify and order separately
-
- Installed at blast machine inlet for final stage moisture droplet removal before air enters blast machine
- Tangential flow and elementless design
- Minimal pressure loss for peak blasting productivity
- Supplied with manual drain valve
- Optional autodrain accessory available
- Male threaded inlet and outlet ports
- Inlet fitting or ball valve not supplied - order separately
- Specify Size - 250cfm or 400cfm, based on the size of your blast nozzle and compressor
- Includes internal stainless steel coalescer
-
- The Premium Industry Standard AirDryer
- Uses Aftercooler design to cool the air for maximum moisture removal
- Pneumatic Fan motor
- Easy Maintenance
- Size based on the size of your compressor
A top priority for corrosion control contractors is knowing how to dry air for sandblasting. It is essential that you remove the moisture from your compressed air for efficient blasting. Moisture can cause your abrasive to clog, slow down your blasting speed and even cause your freshly blasted surface to rust.
Cool, dry air exits the air dryer and is connected to the hose for your blast machine. The result keeps moisture from the blasting surface which minimizes any potential rusting before the protective coating is applied.
Air dryers are used to dry the air between the compressor and the blasting or spraying equipment. Warm, moist air from the compressor enters the air prep dryer and travels into a radiator where the air is cooled. As the temperature drops from warm to cool, it then enters the expansion tank which causes the water to drop to the bottom. Cool, dry air exits the air dryer and is connected to the hose for your blast machine. The result keeps moisture from the blasting surface which minimizes any potential rusting before the protective coating is applied.
