Blasting
Showing 121–135 of 367 results
-
- Diesel Compressor with steel canopy
- Undercarriage with fixed towbar, brakes, ball coupling and jockey wheel (select models)
- LED road lights (select models)
- Spillage free frame & AS1210 vessel including aftercooler and water separator
-
- Inlet size 2" (50 mm) female thread
- Outlet sizes: 2" (50 mm) female thread - 1" (25 mm) female thread - plugged (top outlet)
- Rated for up to 800 cfm airflow volume at 150 PSI
- Connected in-line close to blast machine
- Expansion flow-chamber design with internal stainless steel coalescer
- Highly effective moisture droplet removal for peak productive blasting with minimal pressure loss
- Supplied with manual drain valve
- Includes axle, wheels and handle
- Air fittings not included - specify and order separately
-
- 3/4" NPSM (20mm) 'M' thread
- 1/2" (13mm) throat entry
- Straight bore
- Tungsten carbide liner
- Aluminum jacket and thread
- Use HF GFBS-P nozzle washers (1 included)
-
BNATC360C
The 360° internal pipe blasting nozzle is ideal for use when blast cleaning small interior pipes ranging in size from 65 - 125mm in diameter.
- Wear-resistant angle type blasting nozzle
- Made from tungsten carbide
- Up to 400 hours of blast life
- Aluminum thread, 50mm for NHP nozzle holder
- Aluminum jacket
BNATC360CThe 360° internal pipe blasting nozzle is ideal for use when blast cleaning small interior pipes ranging in size from 65 - 125mm in diameter.
- Wear-resistant angle type blasting nozzle
- Made from tungsten carbide
- Up to 400 hours of blast life
- Aluminum thread, 50mm for NHP nozzle holder
- Aluminum jacket
-

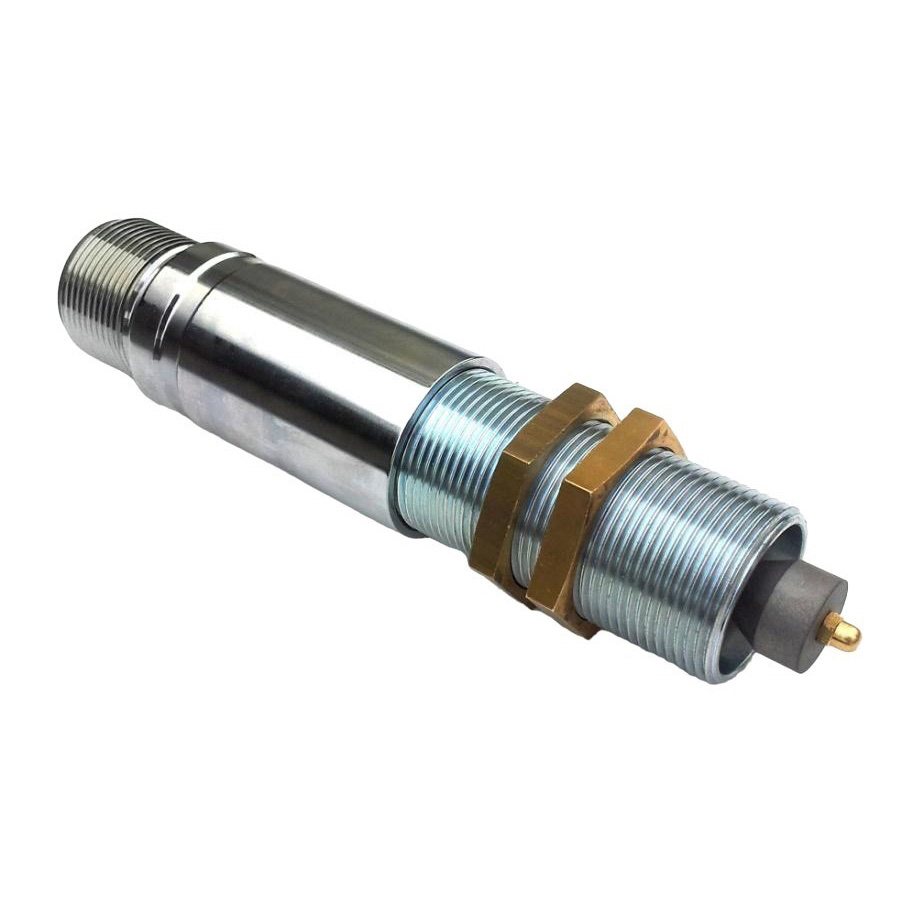

- Used for blasting pipes 3"-12" Internal Diameter
- Uses tungsten carbide deflection head and 1/2" throat nozzle
- Select the unit that will best match your Air Supply:
- 1/2" Throat Nozzle: 250 cfm
- 5/8" Throat Nozzle: 400 cfm
- Neither of these packages come with a transport carriage - Order Separately
- Collar and Button 3"-5" Pipes
- Scissor Type 5"-12" Pipes
- Successful Pipe Internal Projects require some specialist knowledge - contact our team for assistance
-
BNASB15MThe "Jumbo RotorBlast Blast Nozzle 5/16" (SKU: BNASB15M) is a high-quality tungsten carbide nozzle, perfectly designed for RotorBlast internal pipe blasting with a 5/16" (8.0mm) orifice and medium thread.
- Blast Nozzle Jumbo RotorBlast
- Jumbo RotorBlast Blast Nozzle Tungsten Carbide, 5/16" (8.0mm) Orifice, Medium Thread
- Also fits spin blast / spinblaster
BNASB15MThe "Jumbo RotorBlast Blast Nozzle 5/16" (SKU: BNASB15M) is a high-quality tungsten carbide nozzle, perfectly designed for RotorBlast internal pipe blasting with a 5/16" (8.0mm) orifice and medium thread.- Blast Nozzle Jumbo RotorBlast
- Jumbo RotorBlast Blast Nozzle Tungsten Carbide, 5/16" (8.0mm) Orifice, Medium Thread
- Also fits spin blast / spinblaster
-
- Ideal for blasting recesses, pipe internals, behind angles, etc.
- 2" UNC (50mm) coarse Contractor thread 'C' or 1 1/4" NPSM (32mm) Fine Industrial thread 'F'
- 3/4" (20mm) throat entry
- 45° single or triple (equi-spaced) side outlets
- Tungsten carbide liner
- **Triple orifice nozzles have triple air & abrasive consumption!
-
BNASB17M
- Blast Nozzle Jumbo RotorBlast
- Jumbo RotorBlast Blast Nozzle Tungsten Carbide, 3/8" (9.5mm) Orifice, Medium Thread
- Also fits spin blast / spinblaster
BNASB17M- Blast Nozzle Jumbo RotorBlast
- Jumbo RotorBlast Blast Nozzle Tungsten Carbide, 3/8" (9.5mm) Orifice, Medium Thread
- Also fits spin blast / spinblaster
-
- Pressure-release deadman control valve i.e., blast machine depressurizes when the deadman handle is released.
- Used when an overhead hopper automatically feeds abrasive into a blast machine.
- Rugged stainless steel body, compact, isolated 2-bolt construction.
- Doubles blast machine refill cycle time.
- Virtual Position Indicator illustrates orifice size, giving the ability to set abrasive flow quickly and consistently.
- Set and forget – flow rates stay set where you put them.
- High wear, rugged plunger seal.
- Stainless steel body for long life.
- Improved urethane clean-out port enabling quick removal of obstructions while improving port and valve life.
- Fit a rebuild kit while the valve is still fitted to the blast machine.
- Sold individually.
- Genuine Products – Manufactured by Schmidt / Axxiom Manufacturing
-
Schmidt changed the abrasive blasting industry when they introduced the MicroValve™. Now known as the MicroValve I (or the Original Microvalve), it is still available although most pressure-release Schmidt pots now use the newer MicroValve III®.
It features:
- Simple threaded screw-type metering
- Hardened steel threaded base nipple
- (The brass threaded coupling shown is available separately.)
- Genuine Products - Manufactured by Schmidt® / Axxiom Manufacturing
-
The Water Induction Nozzle (aka WIN nozzle) is an economical way to enter the wet blasting market. Commonly used in smaller projects, it offers excellent water flow control. Additional Details:
- Use with standard dry blasting equipment. No modifications required.
- Connects to standard garden hose, or you can use a tank with a standard 12v pump if you need to add rust inhibitor to the water.
- Typically stocked with tungsten carbide liner and contractor threads, it is also available with silicon nitride liner and/or fine threads. Contact us for details.
-
- 3/4" NPSM (20mm) 'M' thread
- 1/2" (13mm) throat entry
- 45° single or triple (equi-spaced) side outlets
- Tungsten carbide liner
- **Triple orifice nozzles have triple air and abrasive consumption!
-
INH131PBAGThe “Blast Nozzle Wear Size Analyzer Gauge” (SKU: INH131PBAG) efficiently determines the internal diameter and wear level of a blast nozzle orifice, ensuring optimal blasting performance.
- Used to determine the internal diameter of a blast nozzle orifice
- Allows you to determine the level of wear of the blast nozzle
- Comes with a removable cap and crayon
- Has size markings to allow you to see quickly what size your nozzle is
- Sold Individually
INH131PBAGThe “Blast Nozzle Wear Size Analyzer Gauge” (SKU: INH131PBAG) efficiently determines the internal diameter and wear level of a blast nozzle orifice, ensuring optimal blasting performance.- Used to determine the internal diameter of a blast nozzle orifice
- Allows you to determine the level of wear of the blast nozzle
- Comes with a removable cap and crayon
- Has size markings to allow you to see quickly what size your nozzle is
- Sold Individually
-
- The original Thompson® Valve invented by Bob Schmidt
- Suits a pressure hold system, which retains the pressure in the blast pot, until the deadman handle is depressed
- Meters the flow of blasting grit, garnet abrasive sand
- 3 Nipple size configurations:
- 1 ¼ (32 mm) x 1 ¼ (32 mm)
- 1 ½" (38 mm) x 1 ½" (38 mm)
- 2" (50 mm) x 2" (50 mm)
- Threaded-plunger metering design with air actuated operation
- The Thompson® Valve is suitable for use with all approved blasting abrasives
- Fits most sand blast hoppers, blast pots or abrasive blasting machines
- Genuine Parts - Manufactured by Schmidt® / Axxiom Manufacturing
-
The industry-proven Schmidt TeraValve™ XL metering valve is revolutionary in its ability to provide high performance abrasive metering while boasting an enhanced service life.
- Durable. The XL (extended life) technology offers more durability - even when blasting with aggressive media like aluminum oxide or steel grit.
- Convenient. No special modifications are required to swap an older pressure-hold valve (like the Thompson) to a Tera. Even older pressure-release pots can be upgraded with a TeraValve Retrofit Kit, as long as there is at least 6" clearance from the bottom of the pot.
- Preferred. BlastOne provides the Tera Valve as standard equipment on all new blast equipment. In addition, we use them in our own rental fleet.
