Blast Hose Nozzle Holder Fittings

SKU: P-HFNH

Nozzle holder for blast hose

Connects the blast nozzle to the blast hose
Choose your blast nozzle thread type;

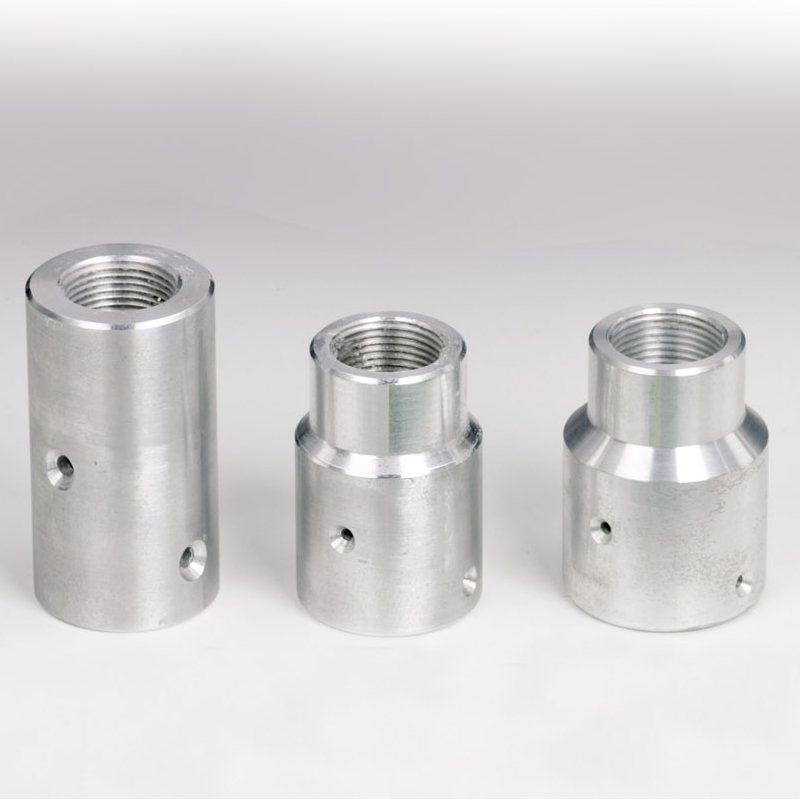

- 3/4″ Medium Mitey-Mite Thread
- 1-1/4″ Industrial Fine Thread
- 2″ Coarse Contractor Thread *Contractor Favourite*
Reference the table below for the size to fit your blast hose

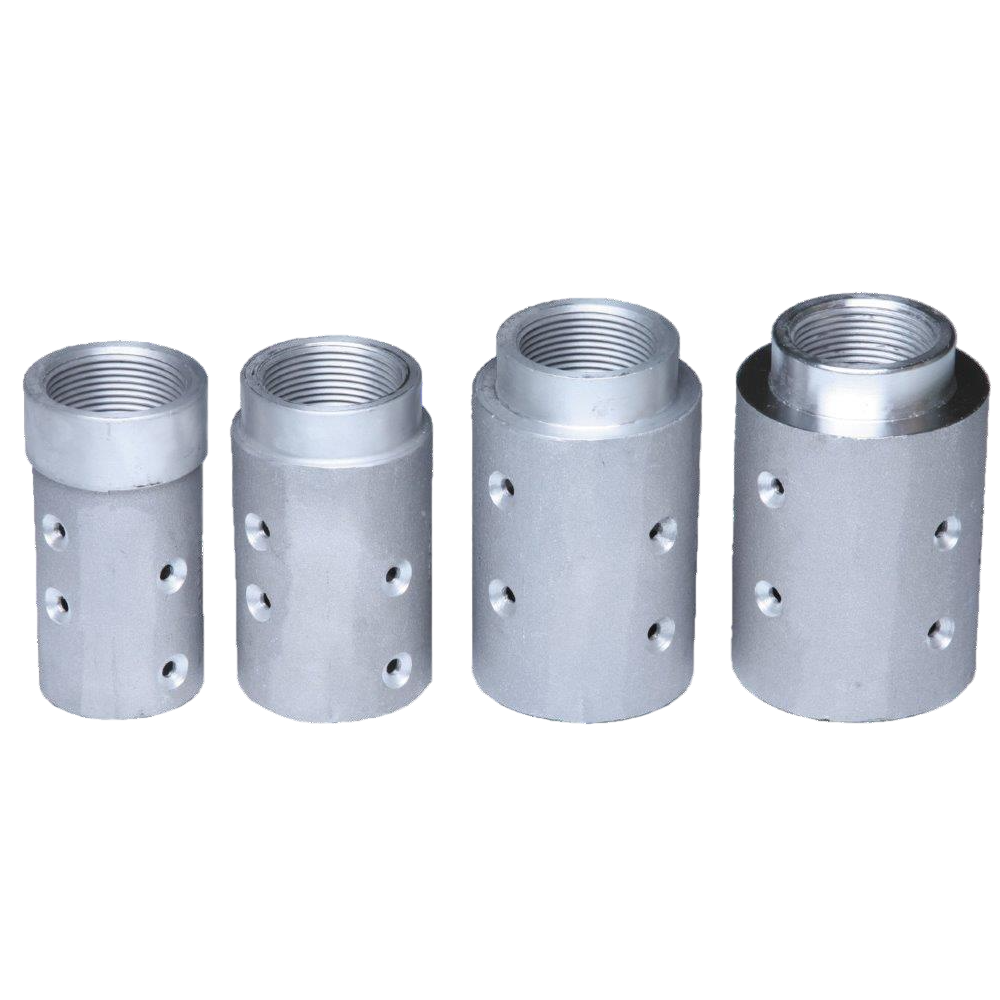

Available in Nylon, Brass or Aluminium
Industry Commonly Referred to As: HE1, HE-1, HE2, HE-2, HE3, HE-3, NHP1, NHP2, NHP3, NH1, NH-1, NH2, NH-2, NH3, NH-3

Categories: All Products, Blasting, Blasting Parts & Consumables, Heavy Duty Sand & Abrasive Blast Nozzles Tags: aluminium, blast, brass, coars, contractor, fit, fittings, HE-1, HE-2, HE-3, HE2, HE3, holder, hose, industrial, Industry Commonly Referred to As: HE1, medium, nh, NH-1, NH-2, NH-3, NH1, NH2, NH3, NHP1, NHP2, NHP3, nozzle, nylon, size

Blast Hose Nozzle Holder Fittings

SKU: P-HFNH

Web price i

$31.97 - $112.13
$27.80 - $97.50 (excludes GST)

Ship to

OD
Thread Type
Composition
Quantity

$27.80 – $97.50

					Purchase Price

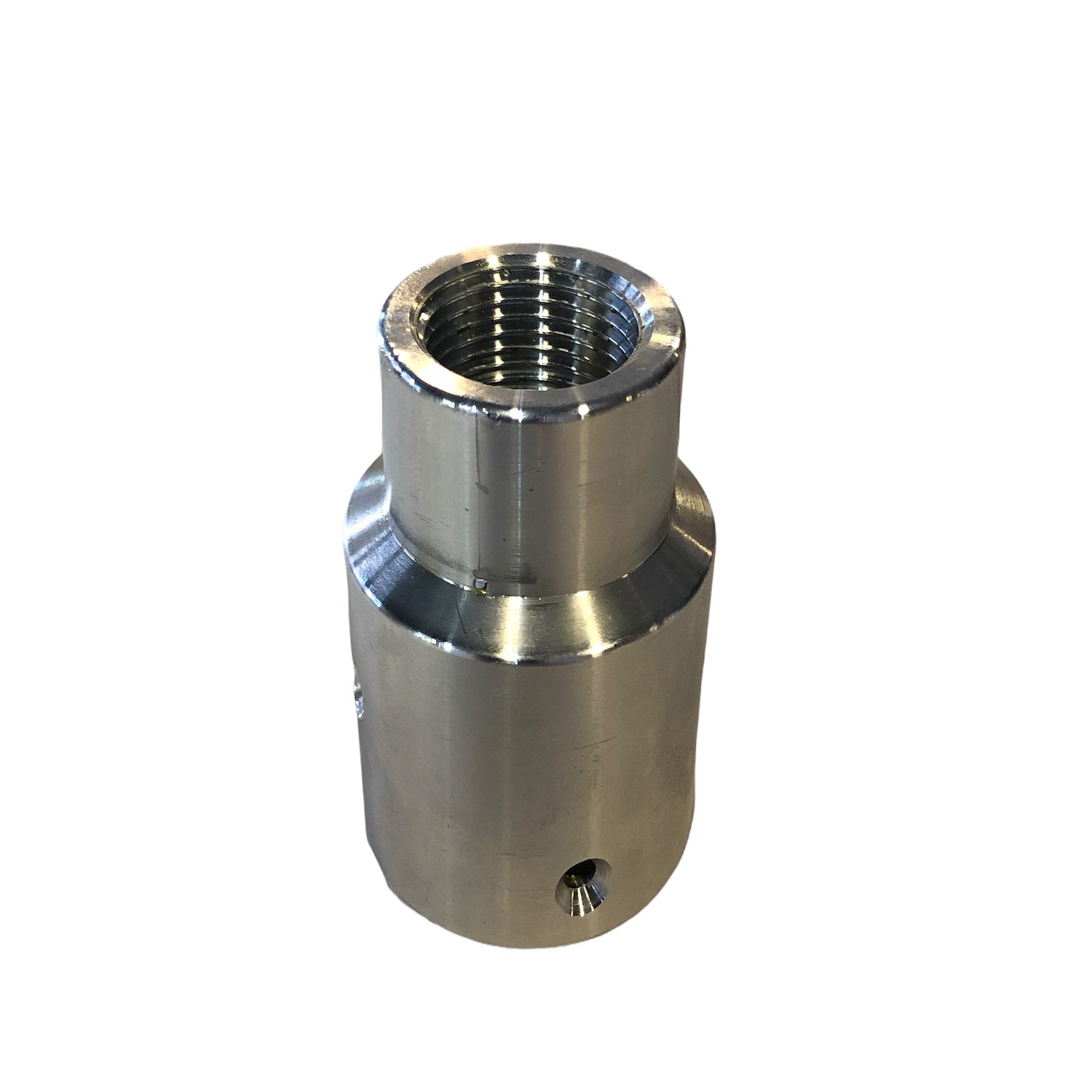

HFANH0M	Q-3/4 / NH-3/4 (1 11/32")	Medium 3/4" (Mitey-Mite)	Aluminium	-	$66.36 $57.70 (excludes GST)

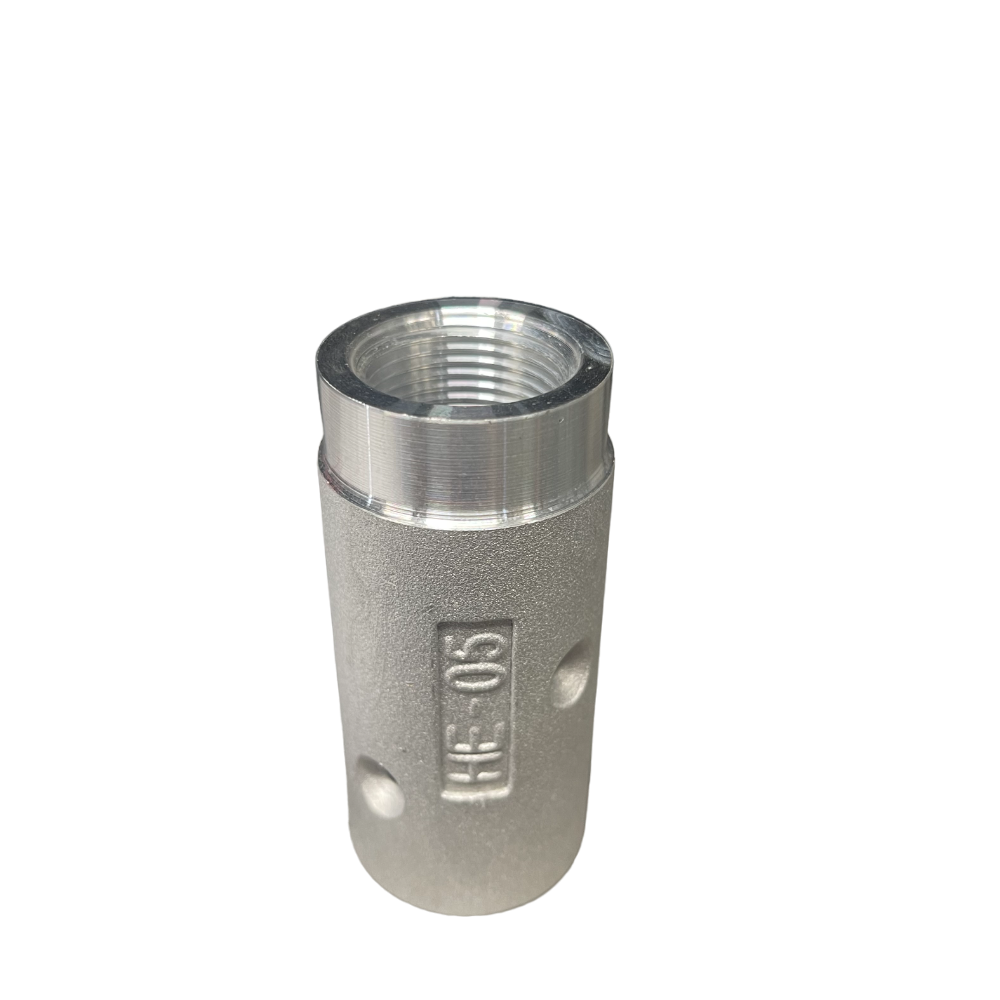

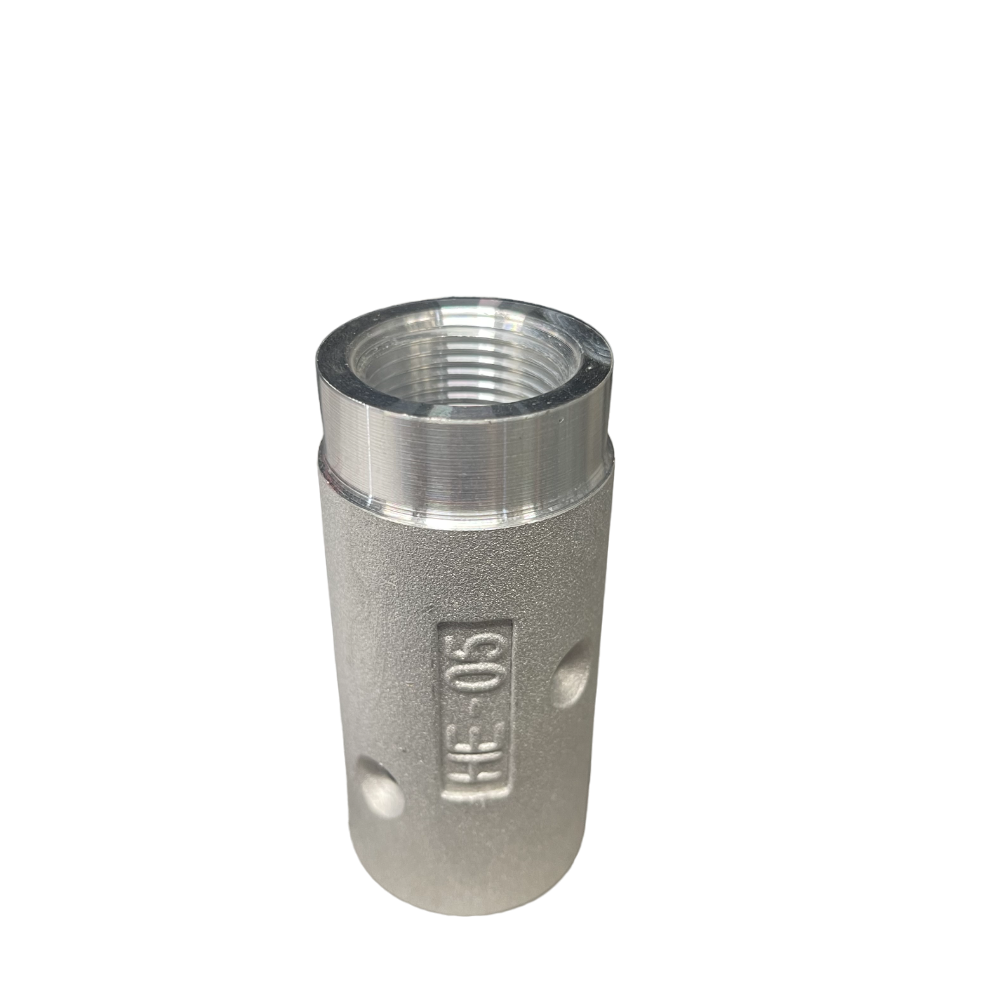

HFANH12M	Q-05/HE-05 (1 3/16")	Medium 3/4" (Mitey-Mite)	Aluminium	-	$31.97 $27.80 (excludes GST)

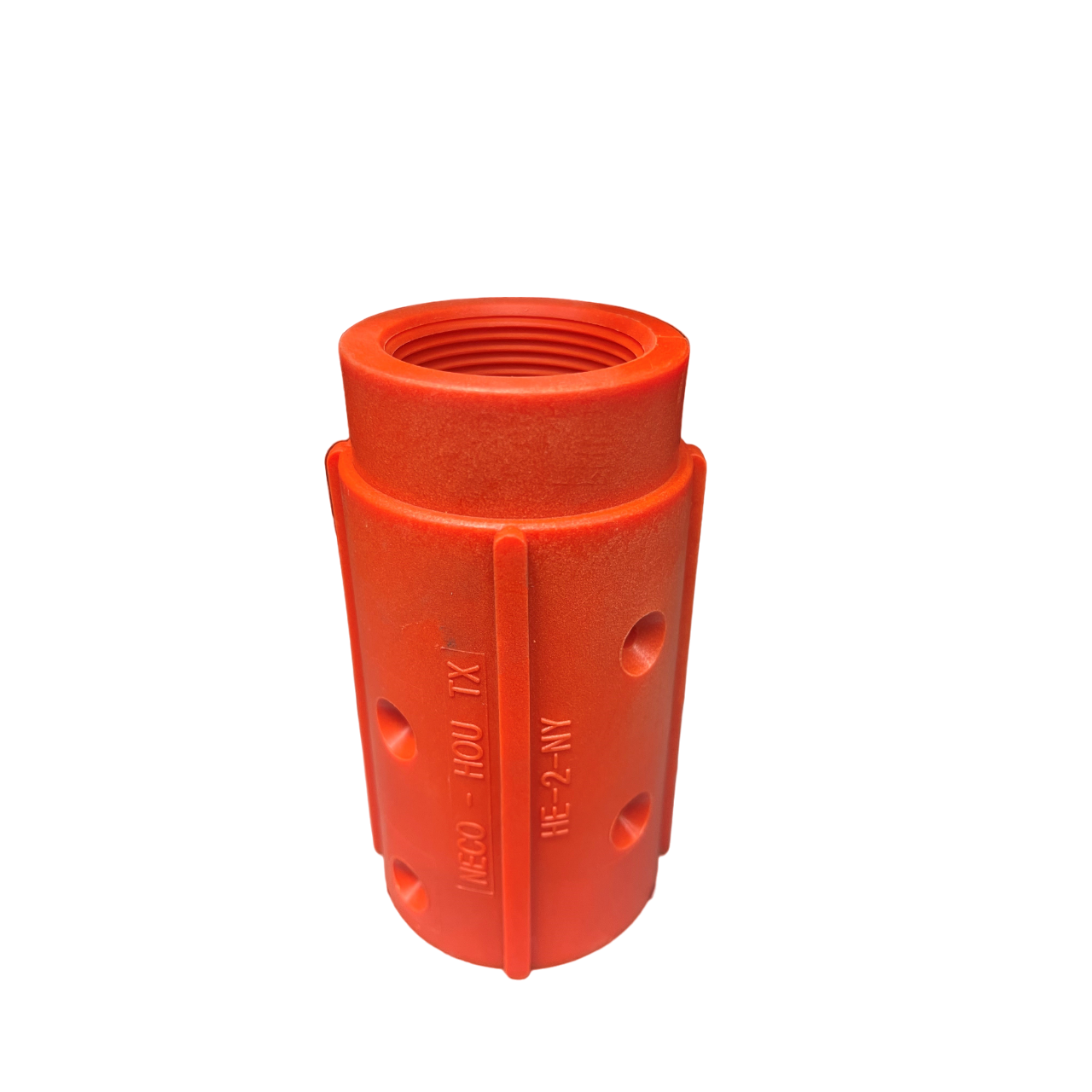

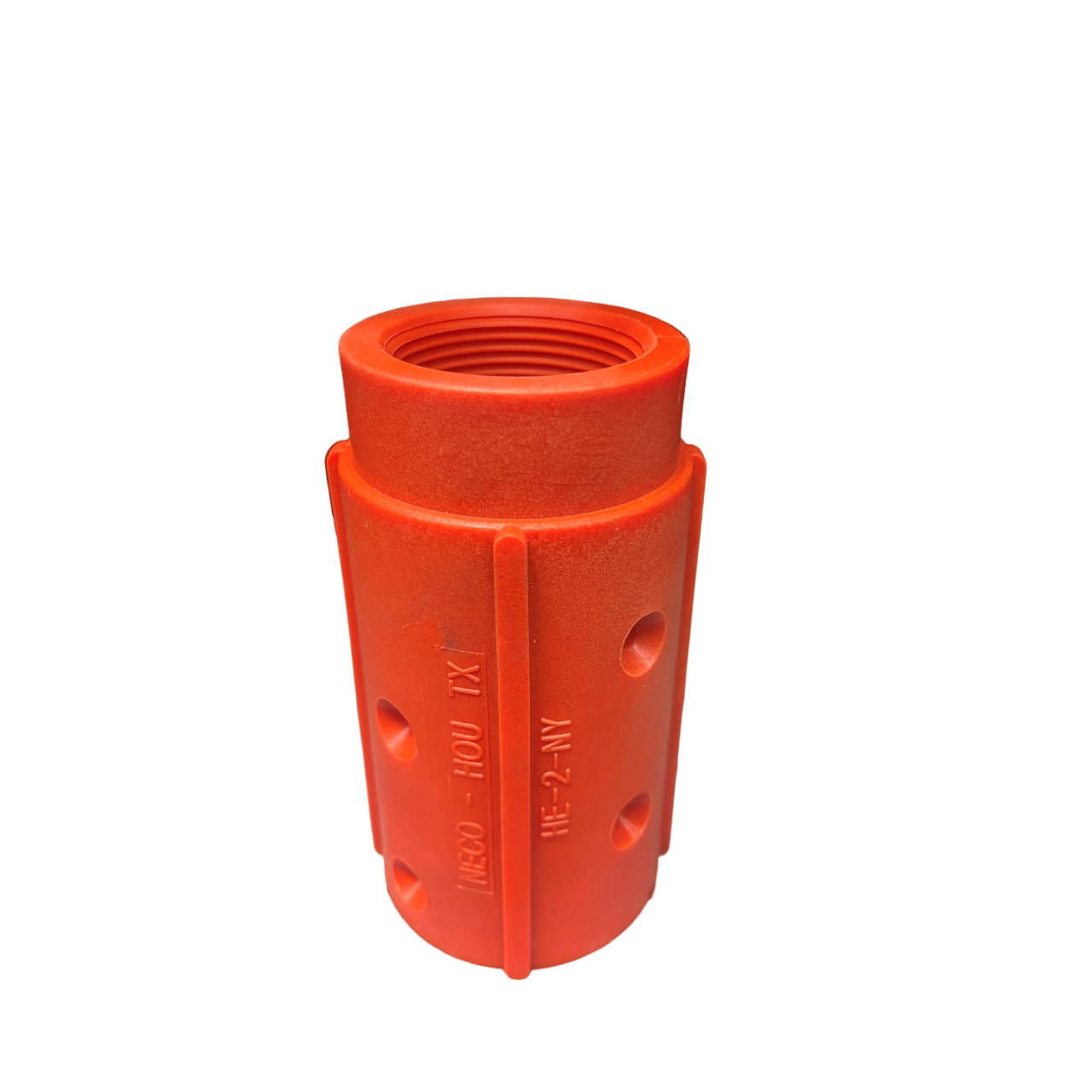

HFPHE2	Q2 / HE2 (1 7/8")	Fine 1-1/4" (Industrial)	Nylon	-	$52.56 $45.70 (excludes GST)

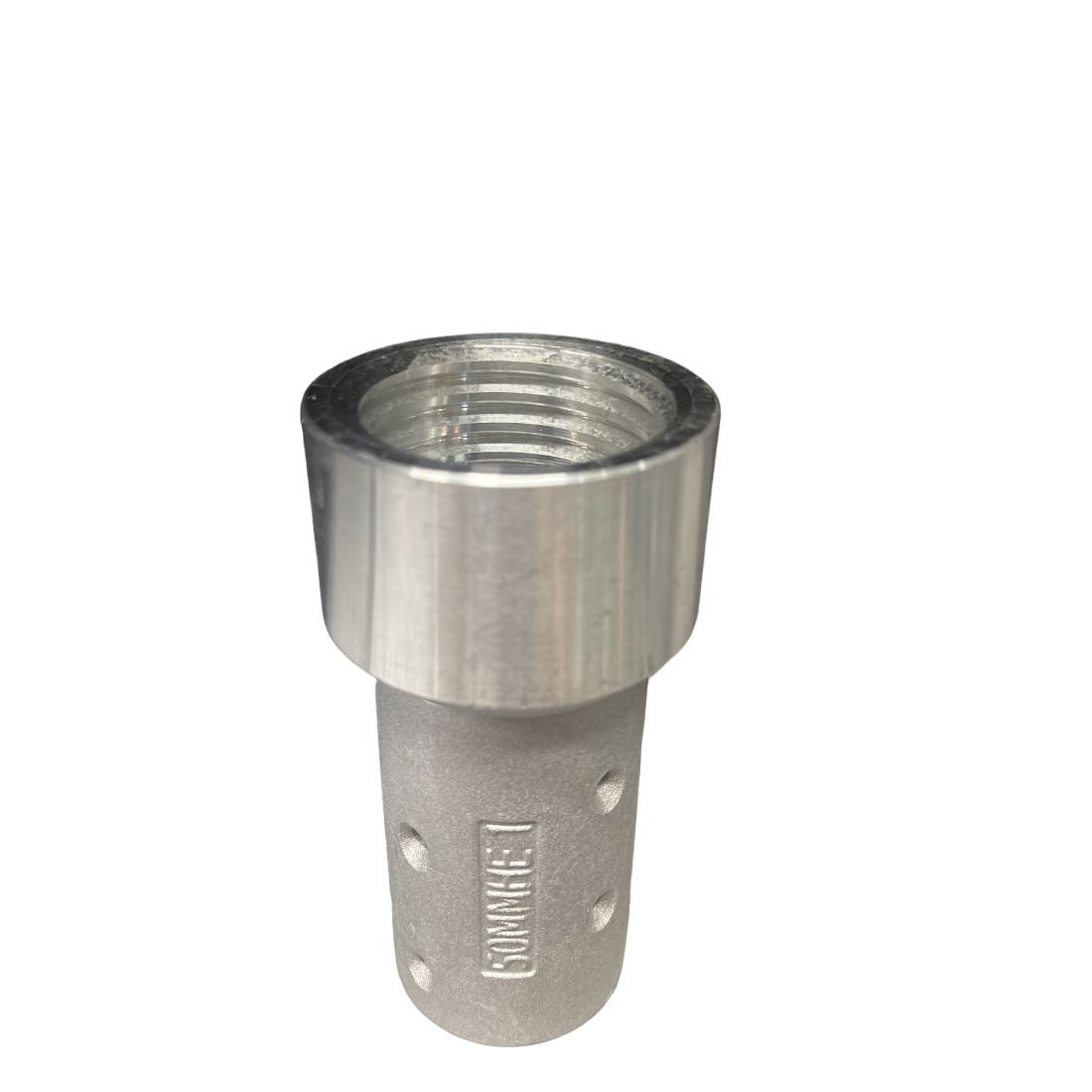

HFANH1C	Q1 / HE1 (1 9/16")	Coarse 2" (Contractor)	Aluminium	-	$50.72 $44.10 (excludes GST)

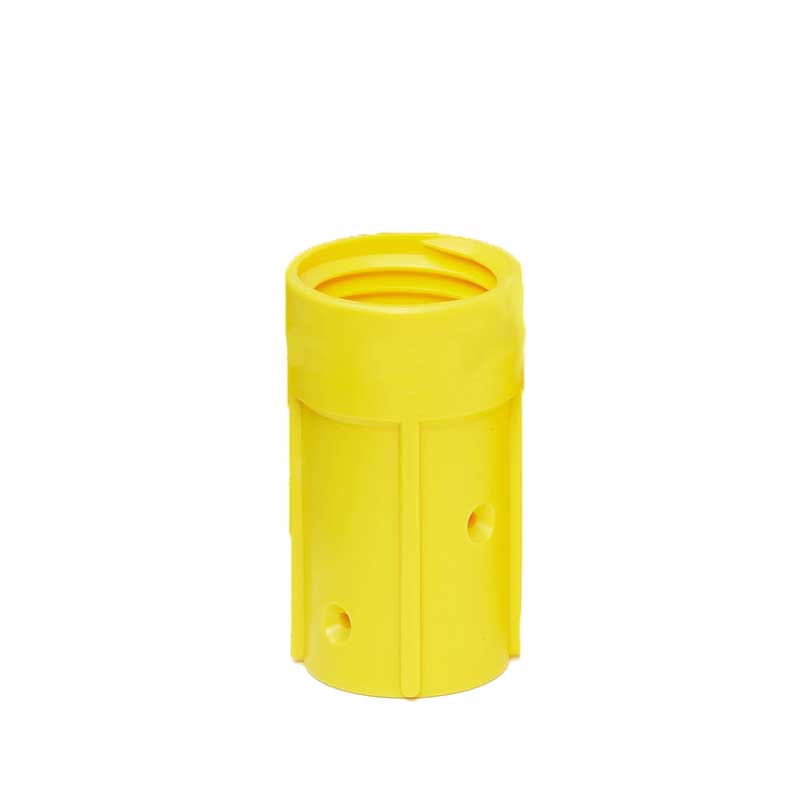

HFPNH1	Q1 / HE1 (1 9/16")	Coarse 2" (Contractor)	Nylon	-	$48.88 $42.50 (excludes GST)
HFANH1M	Q1 / HE1 (1 9/16")	Medium 3/4" (Mitey-Mite)	Aluminium	-	$71.99 $62.60 (excludes GST)
HFPNH2	Q2 / HE2 (1 7/8")	Coarse 2" (Contractor)	Nylon	-	$40.25 $35.00 (excludes GST)
HFANH2C	Q2 / HE2 (1 7/8")	Coarse 2" (Contractor)	Aluminium	-	$51.98 $45.20 (excludes GST)

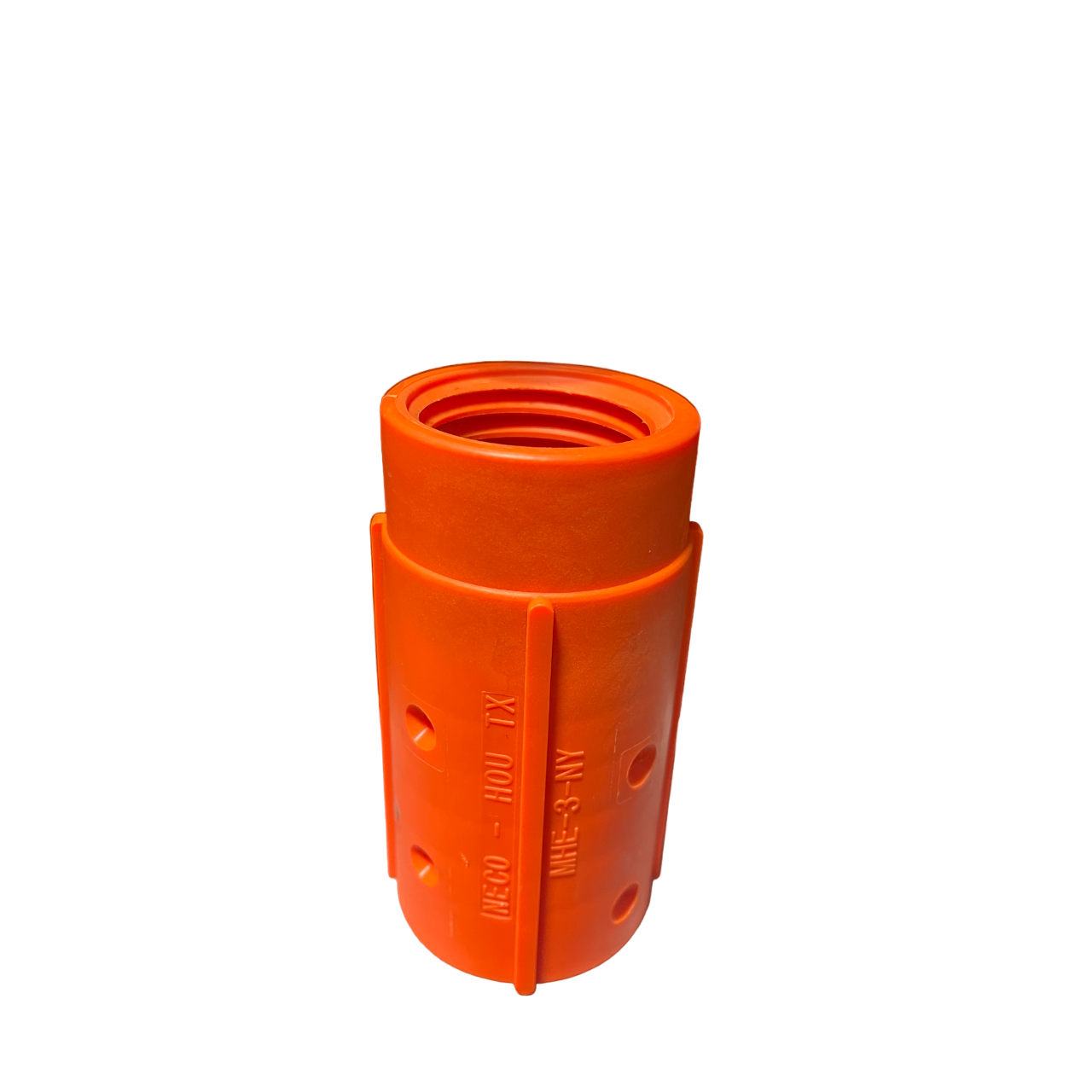

HFPNH3	Q3 / HE3 (2 5/32")	Coarse 2" (Contractor)	Nylon	-	$67.05 $58.30 (excludes GST)

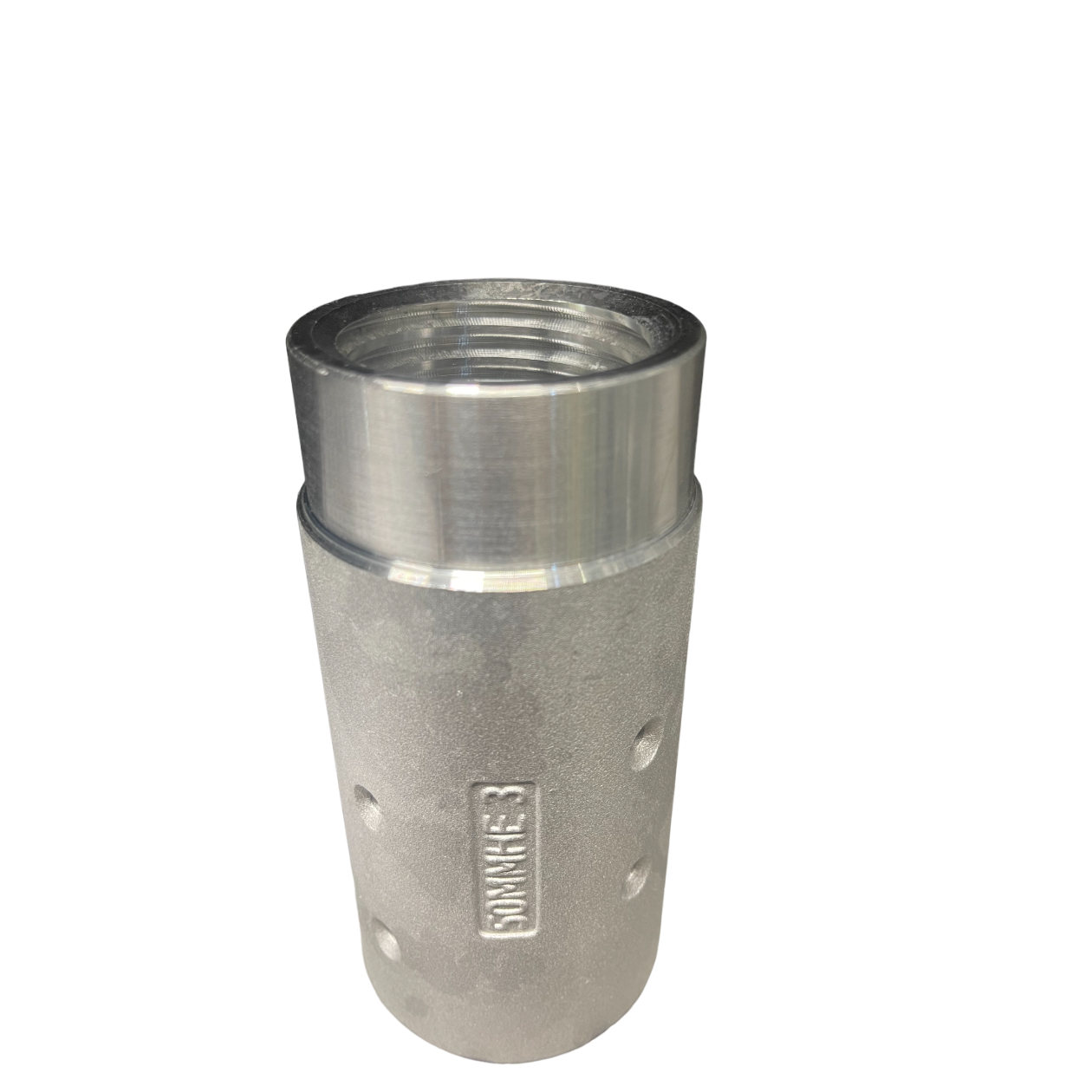

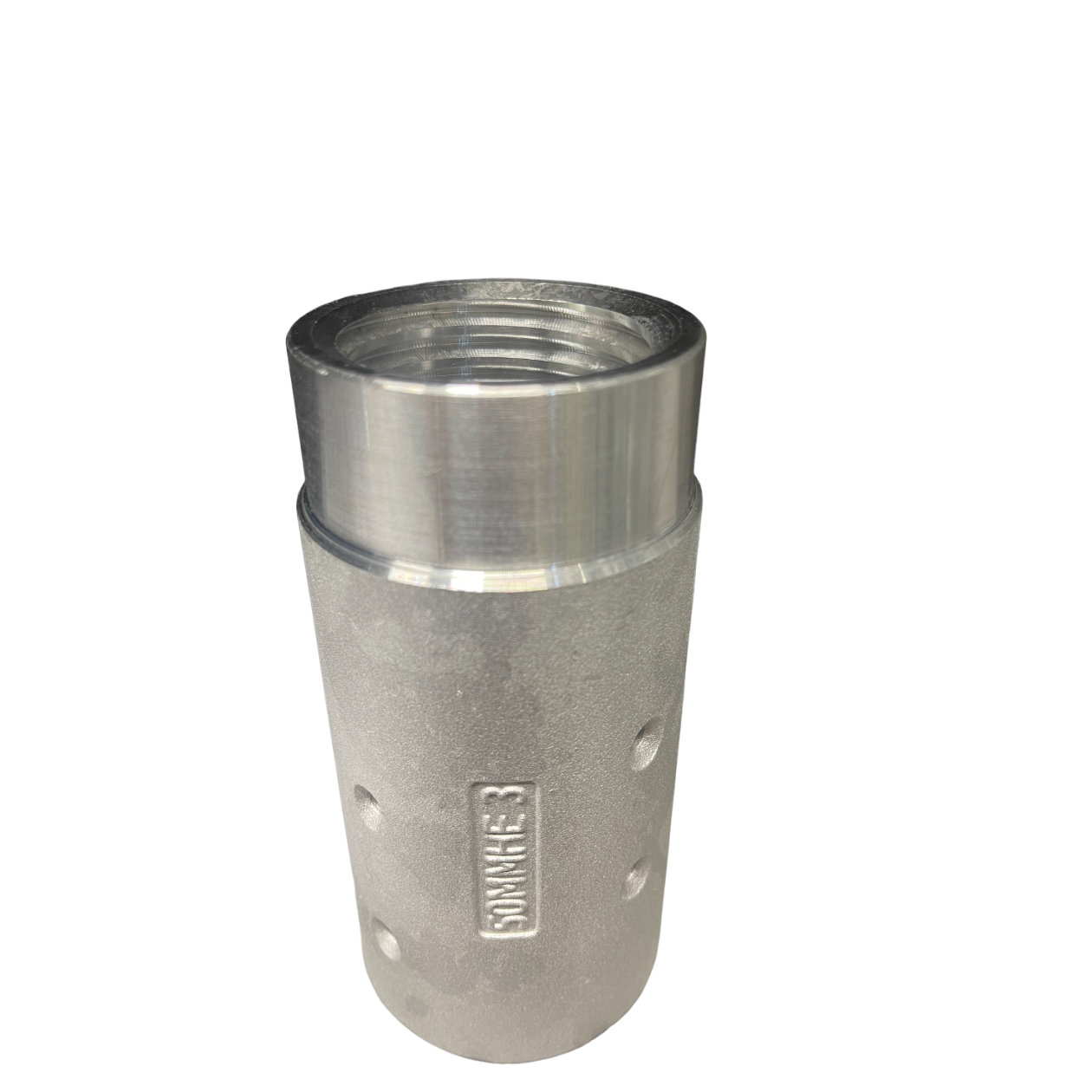

HFANH3C	Q3 / HE3 (2 5/32")	Coarse 2" (Contractor)	Aluminium	-	$66.01 $57.40 (excludes GST)

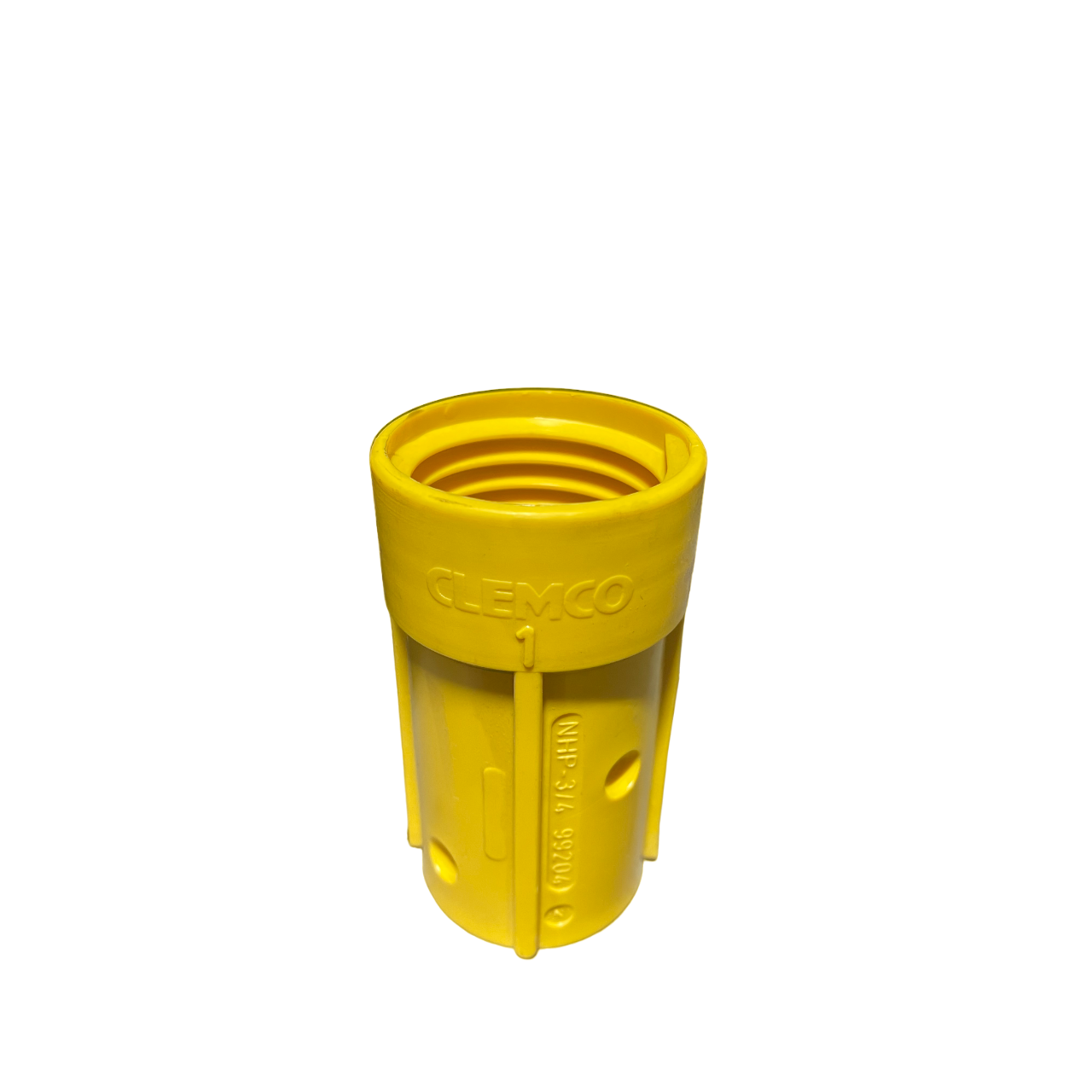

HFPNH34	Q-3/4 / NH-3/4 (1 11/32")	Coarse 2" (Contractor)	Nylon	-	$42.90 $37.30 (excludes GST)

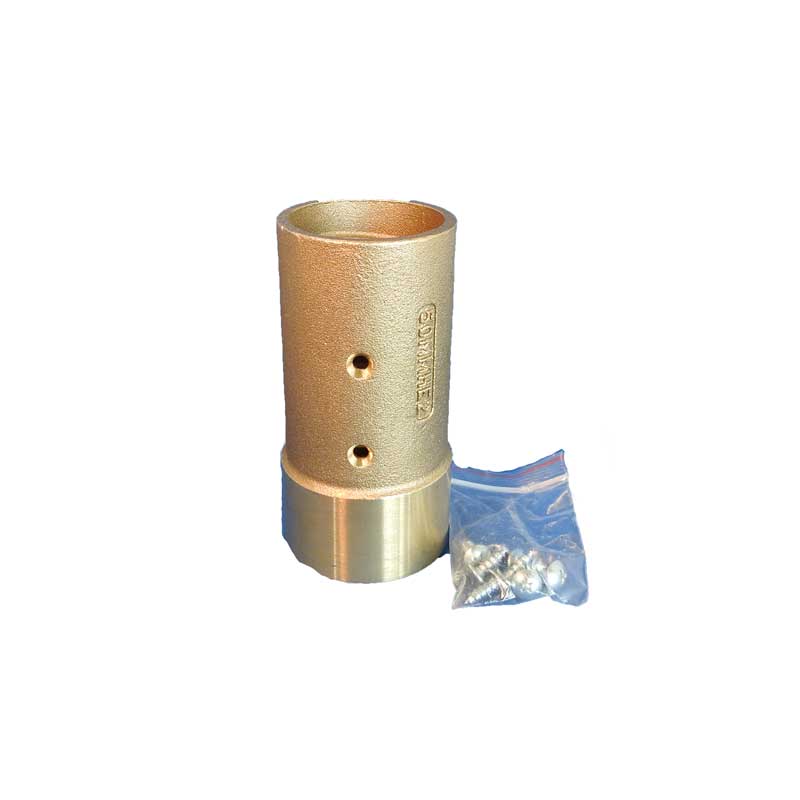

HFBNH2C	Q2 / HE2 (1 7/8")	Coarse 2" (Contractor)	Brass	-	$112.13 $97.50 (excludes GST)

Add to Cart

Description

BlastOne nozzle holders are available in a variety of materials – including brass, nylon and aluminium. Most are also available in both fine (NPSM) and coarse (Contractor) thread. Use only undercut screws for attaching to blast hose. Contact BlastOne for instructions on correct fitting of nozzle holders.

BlastOne nozzle holders are installed on the end of blast hose using an external friction fit with sealant and short screws which penetrate the out side wall of the hose – the screws are not to penetrate through the inner wall of the hose. The blasting nozzle then connects to the nozzle holder, usually with a thread or flange. It is imperative for the life of the blast nozzle to ensure that there is no air leaks and the nozzle holder is fitted correctly according to all procedures and safety documents. BlastOne stocks a wide range of blast cleaning accessories, including wet blast units, industrial soda blasters, robotic abrasive blasting, cart supplies, shot blasting supplies, Decon units and sand blast equipment.

Industry Commonly Referred to As: HE1, HE-1, HE2, HE-2, HE3, HE-3, NHP1, NHP2, NHP3, NH1, NH-1, NH2, NH-2, NH3, NH-3
