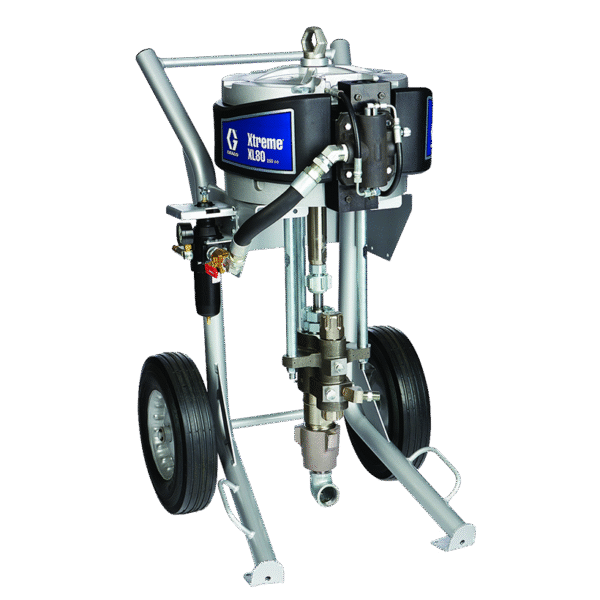

Graco Xtreme XL Airless Spray Painting Machine
- Leading Graco spray technology
- aka – King High Flow Sprayer
- 10,000 13inch Air Motor
- Ideal for large jobs that require a high-output sprayer
- Configured with the Graco XL air motor – the largest air motor Graco has ever built
- Handles the workload equivalent of multiple sprayers
- Includes: Integrated filter, heavy duty cart, air kit, siphon kit and hose/gun kit
Graco Xtreme XL Airless Spray Painting Machine
SKU: P-GMXLDescription
Graco Xtreme XL Pump

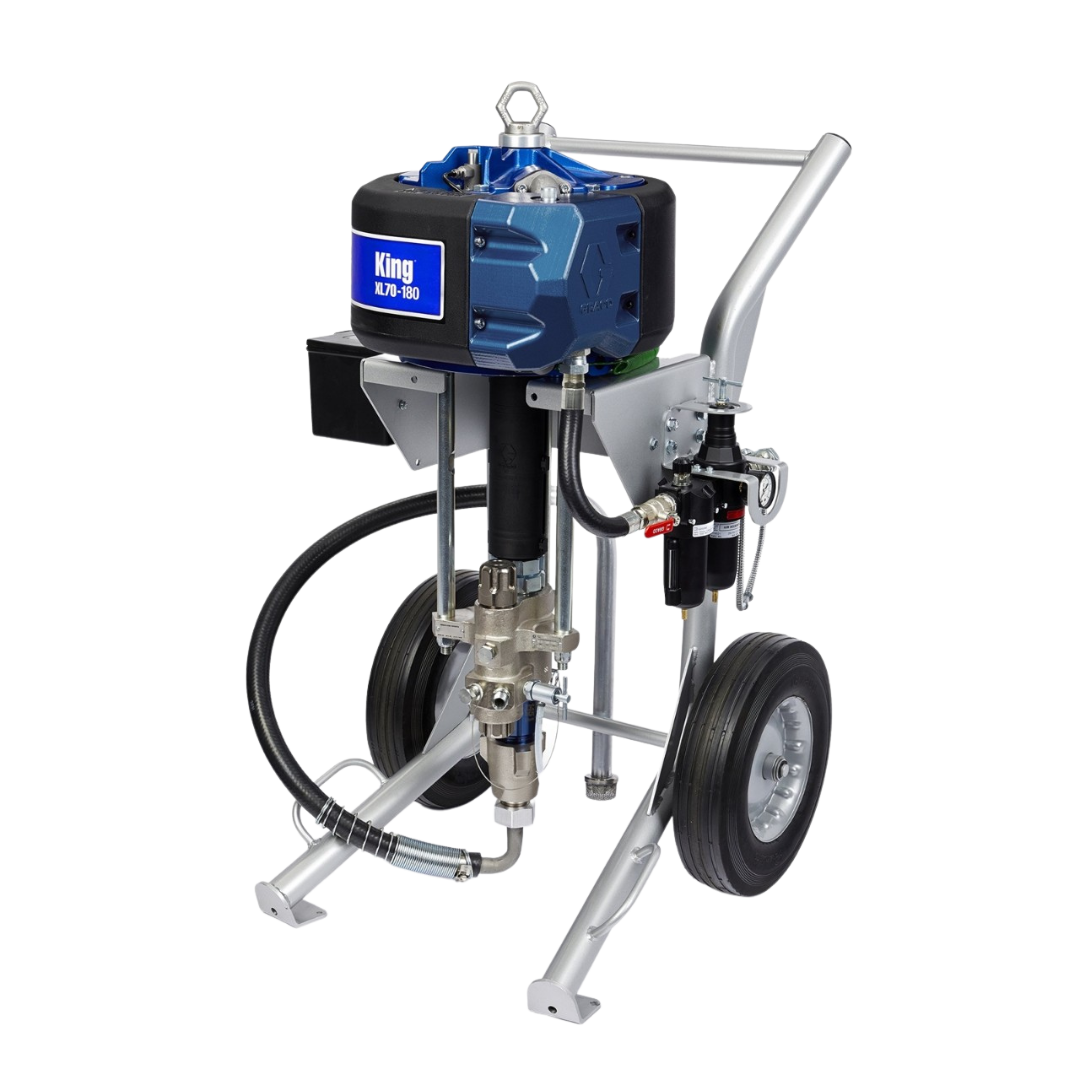

The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before.
| Motor Package | XL 3400 | XL 6500 | XL 10000 |
| Output per Cycle | 180-220cc | 145-290cc | 250-430cc |
|---|---|---|---|
| Maximum Working Pressure | 3150-3800 psi (217-262 bar, 21.7-26.2 MPa) |
4550-7250 psi (313-500 bar, 31.3-50.0 MPa) |
4800-7250 psi (88-100 bar, .07-.60 MPa) |
| Maximum Air Input Pressure | 100 psi (7.0 bar, .07 MPa) |
80-100 psi (5.5-7.0 bar, .07-.55 MPa) |
88-100 psi (6.0-7.0 bar, .07-.60 MPa) |
| Output at 60 Cycles/min | 2.9-3.4 gpm 11.0-12.9 lpm |
2.3-4.6 gpm 8.7-17.0 lpm |
4.0-6.7 gpm 15.1-25.4 lpm |
