Pop-Up Valve and Shaft for Schmidt® Blast Pot

Description

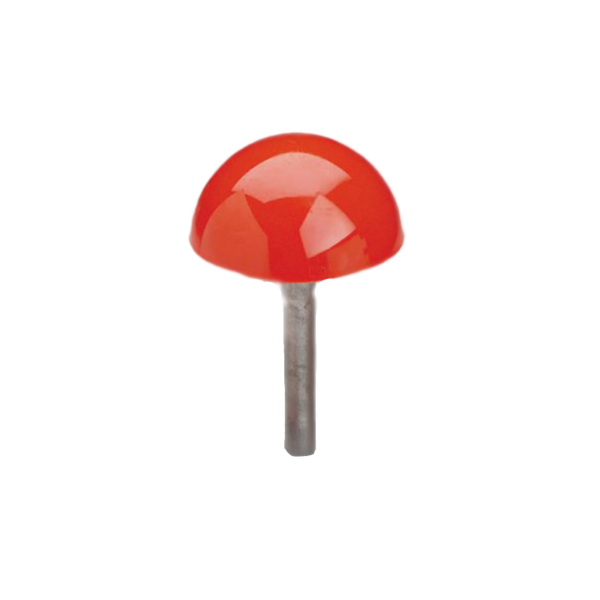

Large Pop-Up Valve and Shaft for 3.5-20 cu.ft S-Series Blast Pots Very long lasting hemispherical design – manufactured from tough Polyurethane and Seals at any angle – less chance of mis-alignment

fits most portable blast machines manufactured by Schmidt abrasive blasting or Axxiom Manufacturing specifically for BlastOne International

Pop-up valves are easy to replace through the hand hole/hand way of the sandblast hopper

How to replace a worn pop-up valve in blast hopper/sand blast pot

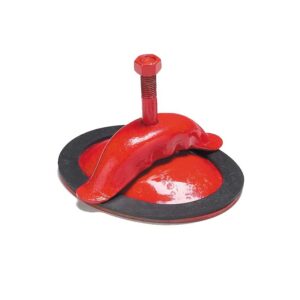

1. remove the sandblast hopper hand way assembly by removing the nut from the crab and plate assembly – the hand way will fall inwards but can be rotated 90° to remove from the blast pot
2. Locate the vertical riser pipe inside the blast pot which houses the pop-up valve stem
3. Using a wrench, unscrew the pop-up valve vertical riser pipe from the elbow in the blast hopper – once this has been disconnected you can remove the worn pop-up valve from the sandblaster
4. install the new pop-up valve in the reverse order – it is a good idea to use some sealant tape  or anti-seize on the thread of the vertical riser pipe for ease of disassembly at any point in the future
