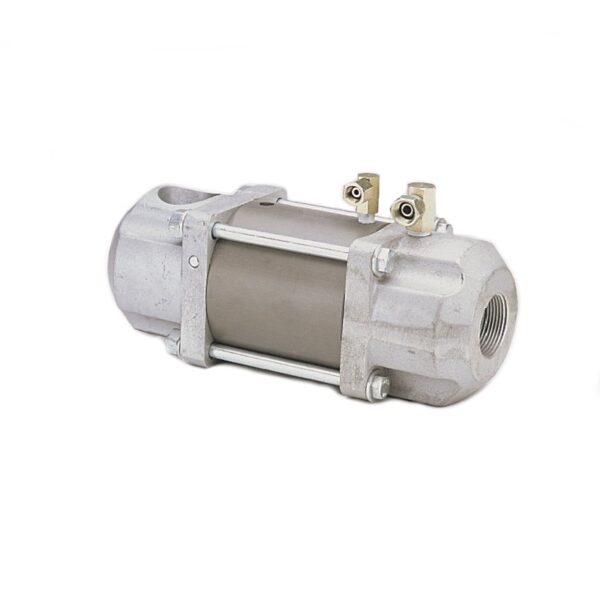

Schmidt ComboValve® - BlastPot Deadman Control
- Combo Valve
- Combines inlet and exhaust valve functions
- Full-ported, 1¼ (32 mm) thread, inlet side
- Pneumatic operation requires 60psi to close exhaust valve
- Rugged, compact design
- Simple to install and service
Schmidt ComboValve® - BlastPot Deadman Control
SKU: DM2223000Web price i
Please sign in to your account to see your pricing, which may be different from the price displayed.
$1,608.74
$1,398.90 (excludes GST)
Ship to
In stock

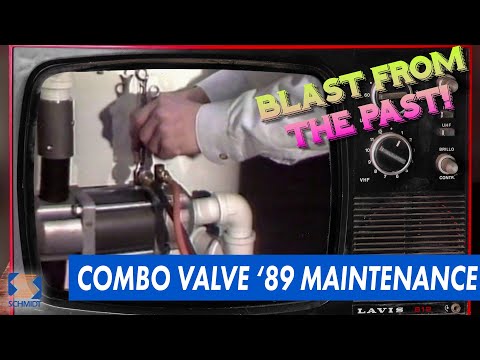

Description
The Combo Valve offers an unbeatable combination of operator safety, unmatched performance, rugged durability and dependability.
APPLICATIONS
A combination valve, typically used in conjunction with a Micro Valve, controlling air both in and out of the blast pot. Eliminates high maintenance cost of using dual valves.
SPECIFICATIONS
- Combined inlet and exhaust valve functions
- Full-ported, 1 1/4″ (32mm) thread, inlet side
- Rugged, compact design
- Simple to install and service
- Optional Jumbo 1 1/5″ (38mm) full ported thread also available for high flow applications
- Note: all parts below suit the 1 1/4″ Combo Valve
COMMONLY ORDERED
| Item No. | Description | Part No. | Mfg Part No. |
|---|---|---|---|
| Combo Valve 1 1/4″ (32mm) | DM2223000 | 2223-000 | |
| Jumbo Combo Valve 1 1/2″ (38mm) – used in the ASAP System | DM2223002 | 2223-002 | |

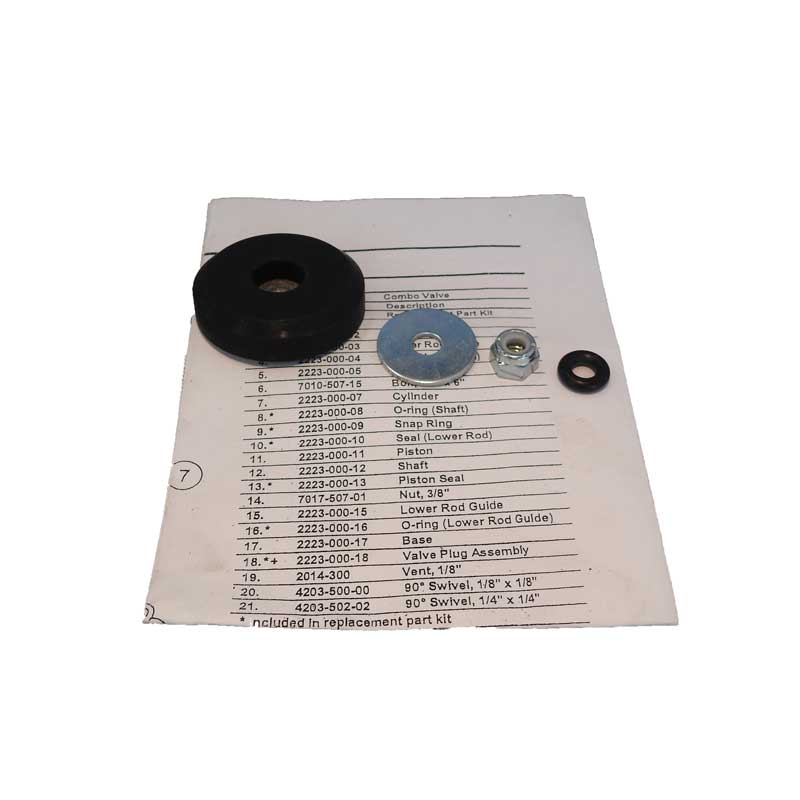

| * | Service Kit for 1 1/4″ Combo Valve (*) | DM222300099 | 2223-000-99 |

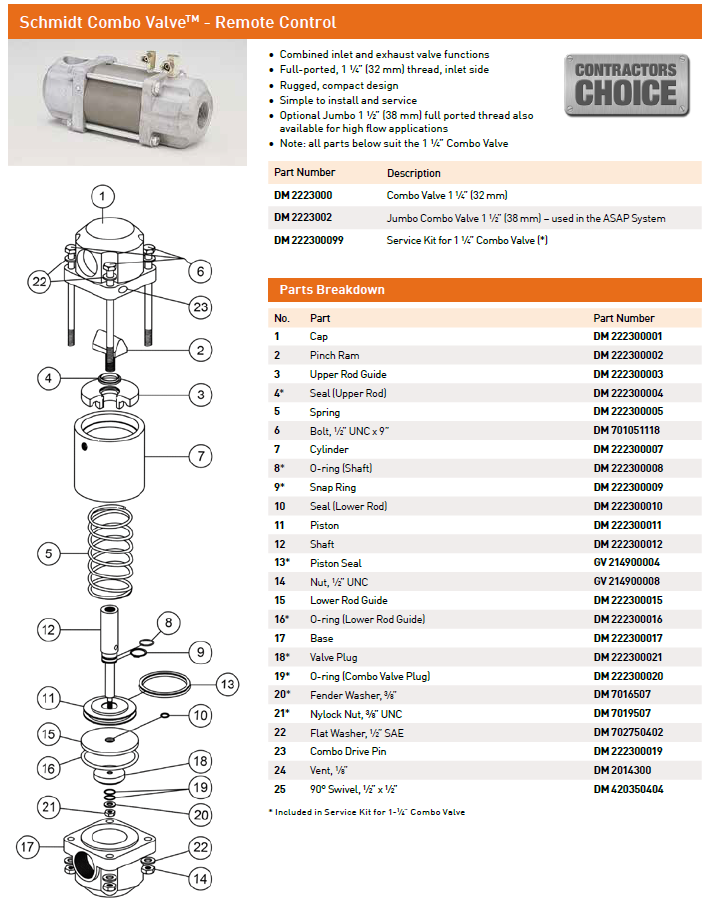

PARTS BREAKDOWN
| Item No. | Description | Part No. | Mfg Part No. |
|---|---|---|---|

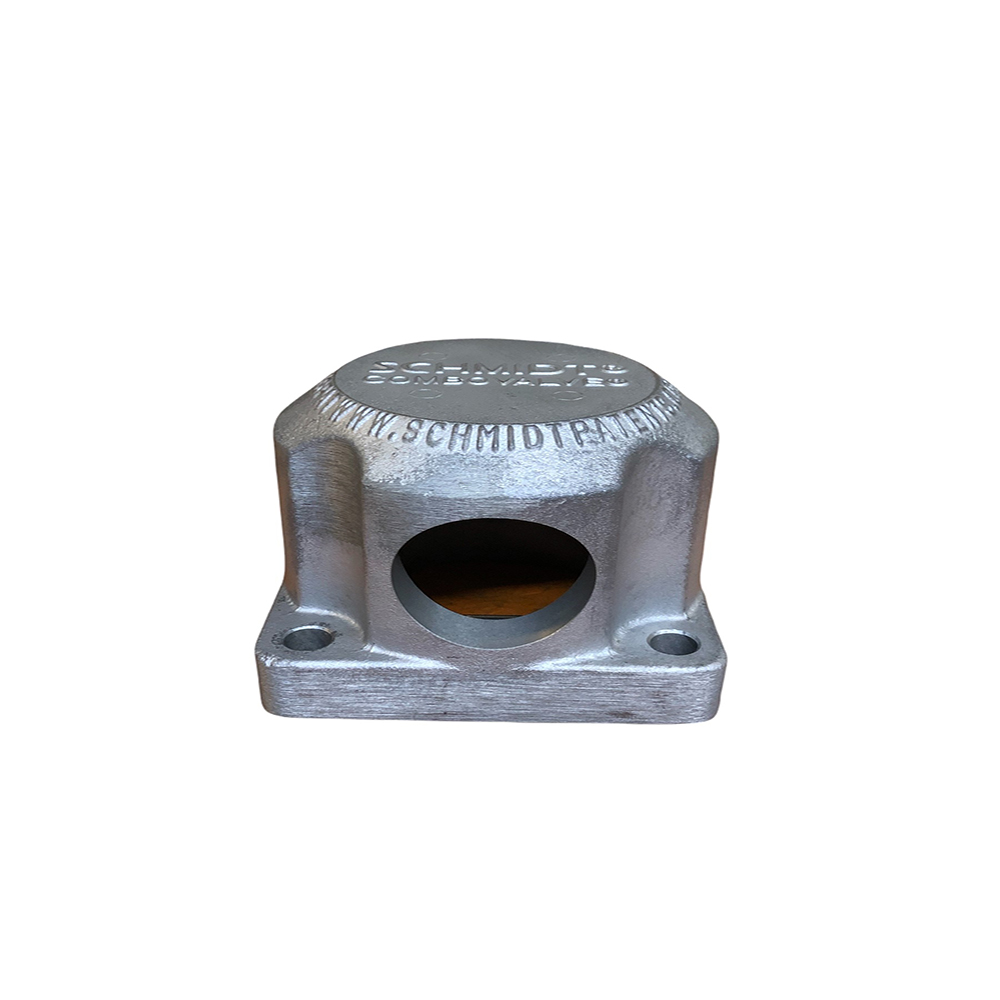

| 1. | Cap | DM222300001 | |

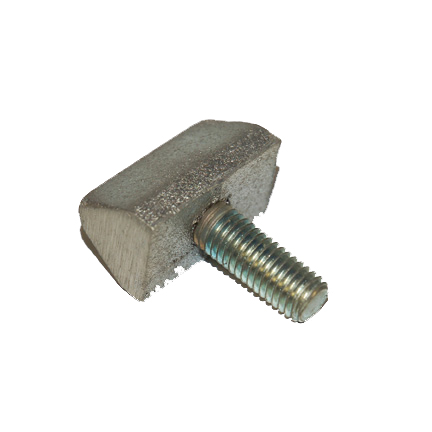

| 2. | Pinch Ram | DM222300002 | |
| 3. | Upper Rod Guide | DM222300003 | |
| 4.* | Seal (Upper Rod) | DM222300004 | |
| 5. | Spring | DM222300005 | |
| 6. | Bolt, 1/2″ UNC x 9″ | DM701051118 | |

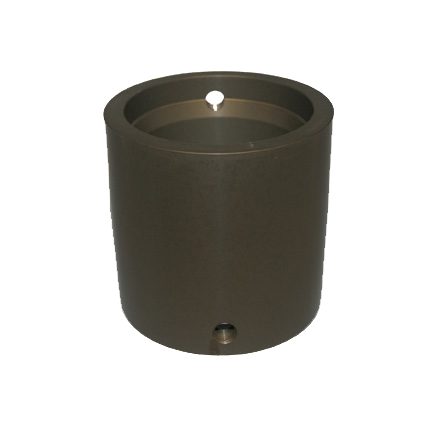

| 7. | Cylinder | DM222300007 | |
| 8.* | O-ring (Shaft) | DM222300008 | |
| 9.* | Snap Ring | DM222300009 | |

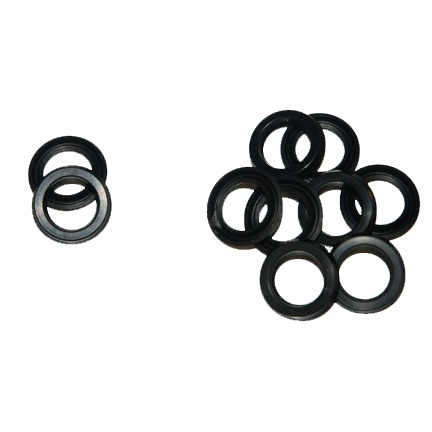

| 10. | Seal (Lower Rod) | DM222300010 | |
| 11. | Piston | DM222300011 | |
| 12. | Shaft | DM222300012 | |
| 13.* | Piston Seal | DM214900004 | |
| 14. | Nut, 1/2″ UNC | DM214900008 | |

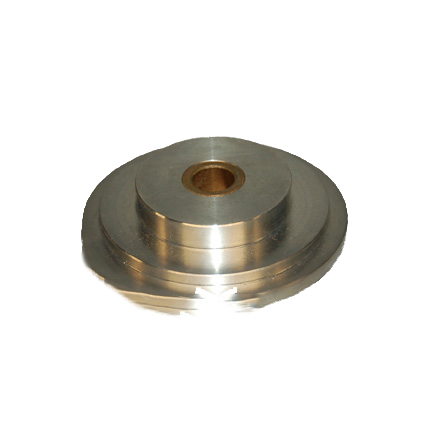

| 15. | Lower Rod Guide | DM222300015 | |
| 16.* | O-ring (Lower Rod Guide) | DM222300016 | |
| 17. | Base | DM222300017 | |
| 18.* | Valve Plug | DM222300021 | |
| 19.* | O-ring (Combo Valve Plugs) | DM222300020 | 2152-000-06 |
| 20.* | Fender Washer, 3/8″ | DM7016507 | |
| 21.* | Nylock Nut, 3/8″ UNC | DM7019507 | |
| 22. | Flat Washer, 1/2″ SAE | DM702750402 | |
| 23. | Combo Drive Pin | DM222300019 | |
| 24. | Vent, 1/8″ | DM2014300 | 2014-300 |
| 25. | 90 Degree Swivel, 1/2″ x 1/2″ | DM420350404 |
* Included in Service Kit for 1 1/4″ Combo Valve
