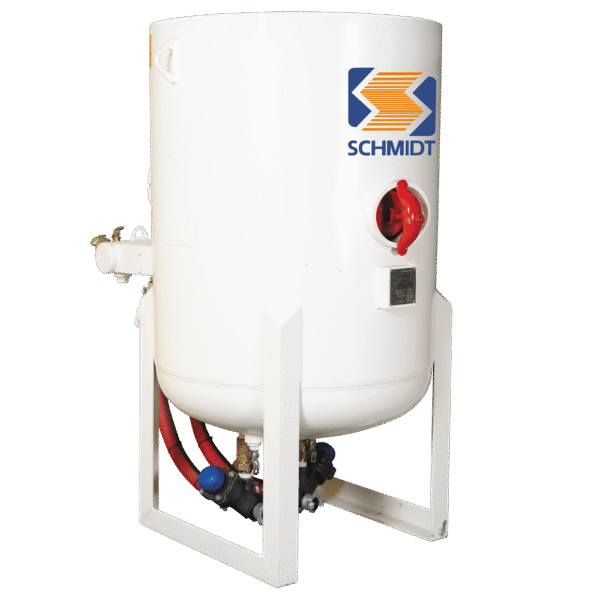

Schmidt® 20 cuft Blast Machine - Dual Outlet

Description

The Schmidt 20 cu ft blast pot is a similar design to the 10 cu ft. The main difference being the capacity, other componentry is the same. These units are designed for fixed installations i.e. blastrooms. Having a large pot volume means it is possible to fill it up and run for a longer period without needing to depressurize. The capacity of this pot means that 2 operators can run off the same pot and not run out of abrasive too quickly. This abrasive blasting system features the same production-boosting and ease of use features seen on Schmidt® smaller pots:  Large hand holes for easy access to the pot interior for maintenance. 1½ piping to minimise pressure loss. Thompson Valve II metering/deadman control system allows operators to start and stop independently. Thompson Valve II metering/deadman control system also ensures accurate abrasive metering that stays consistent. The Thompson Valve II is can be pulled down and rebuilt quickly and easily Spun rather than pressed base prevents abrasive bridging. Hemispherical pop up allows for a tight seal even if the stem of the pop up is out of alignment. Pop up dome and ring are manufactured from a compound that assists with sealing.
