Testex Tape for Measuring Surface Profile
The Testex tape process of measuring surface profile has been used for over 50 years. It is a simple, reliable, and repeatable way of determining surface profile parameters. DeFelsko acquired the Testex tape line and incorporated it into their range of instruments, for increased compatibility and greater convenience for inspectors.

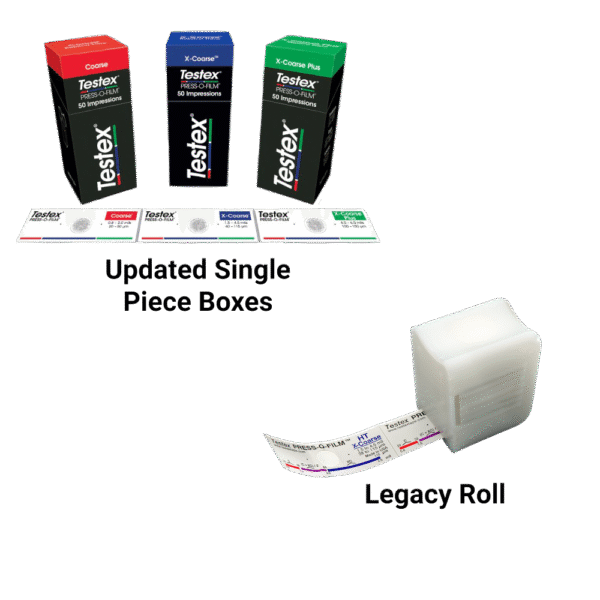

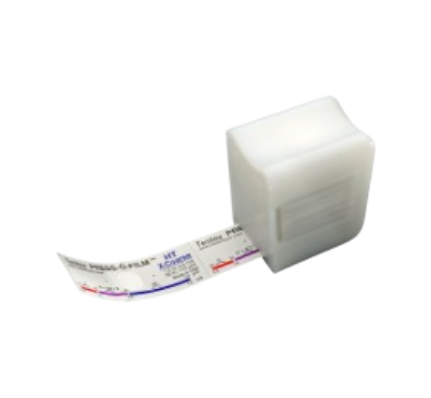

DeFelsko is now offering updated packaging in 50-piece packs while continuing to offer the legacy roll packaging. NOTE – the profile ranges are not entirely the same between them – their respective ranges are shown under the Product Description tab.
Tape options include the following:
- Conventional Testex Press-O-Film Tape grades.

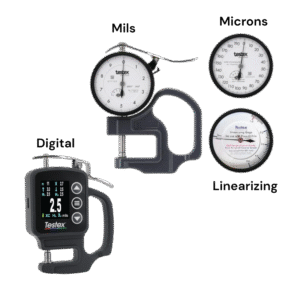

- Use with analog spring or digital micrometers or with the PosiTector RTR H probe.
- Optical Grade Testex Press-O-Film Tape Grades
- Use with PosiTector RTR 3D probe. Provides surface data files (.sdf) that allow both 2D and 3D measurements.
Testex Tape for Measuring Surface Profile
SKU: P-INE1122Description

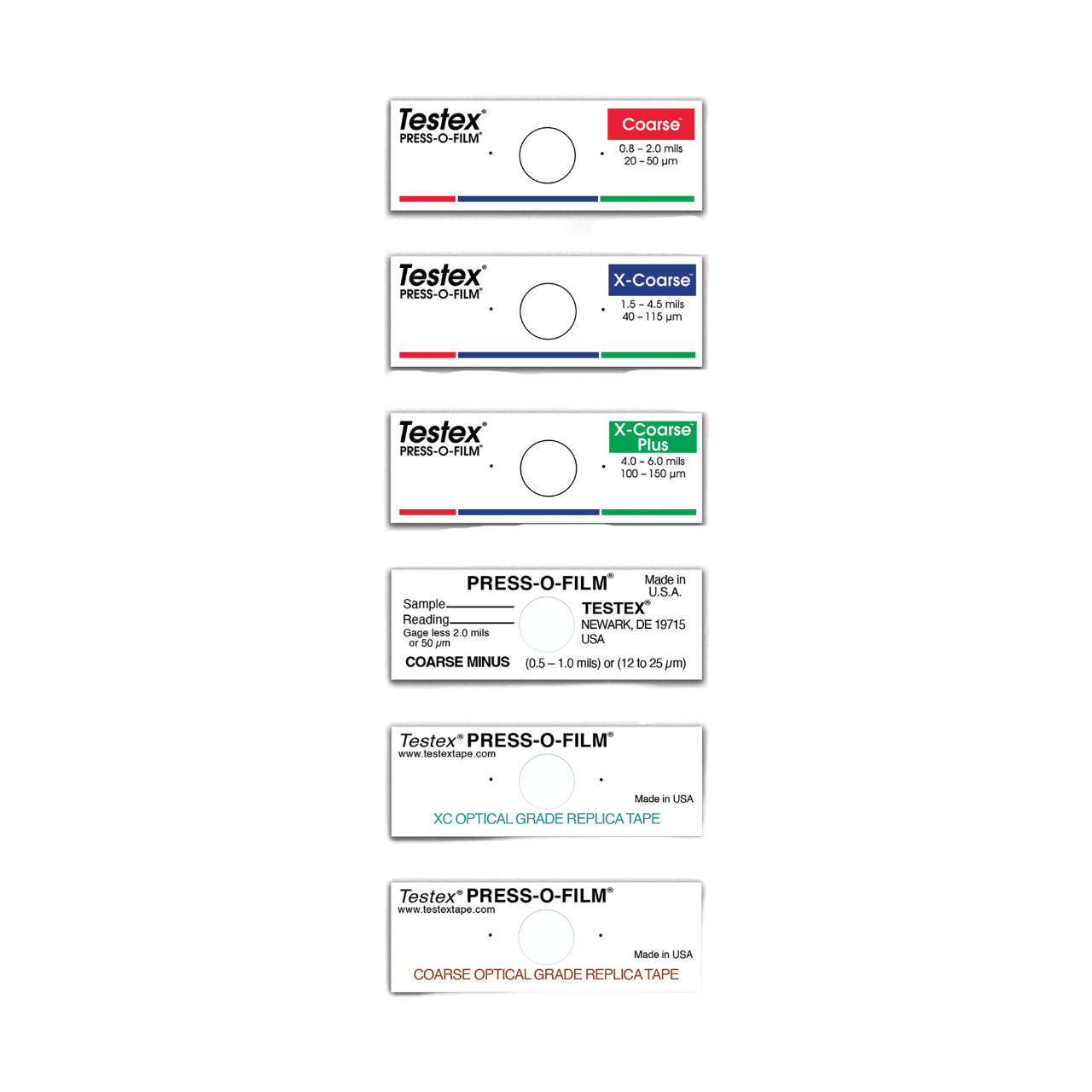

Testex Press-O-Film Conventional Testex tape is available in a variety of thickness ranges for measuring substrate roughness using analog or digital micrometers. It is available in the following:

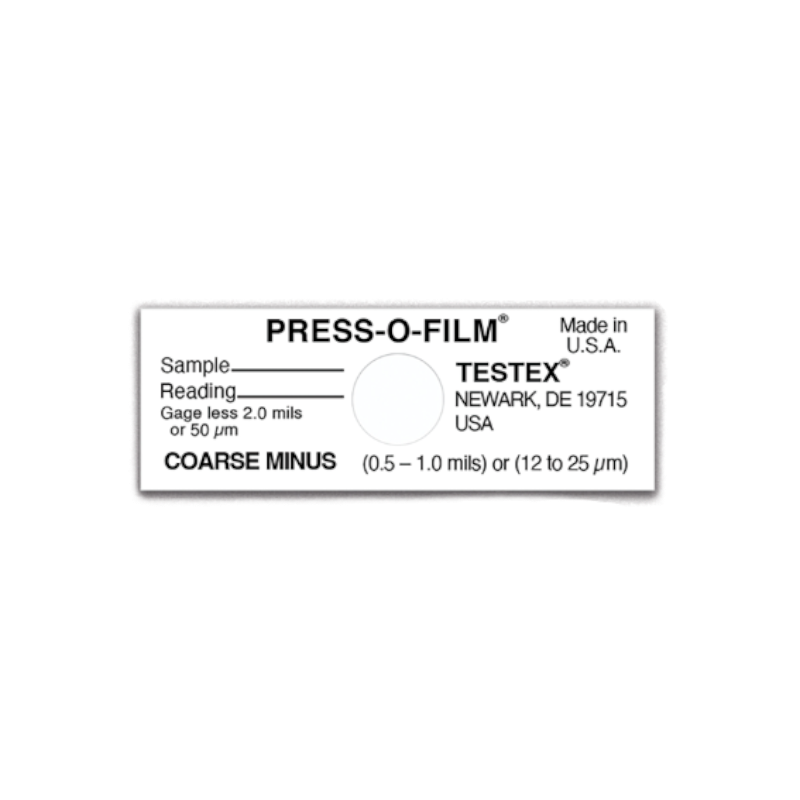

- Coarse Minus.
- Available in rolls only. Measurement range is 0.5 – 1.0 mils / 12 – 25 µm.

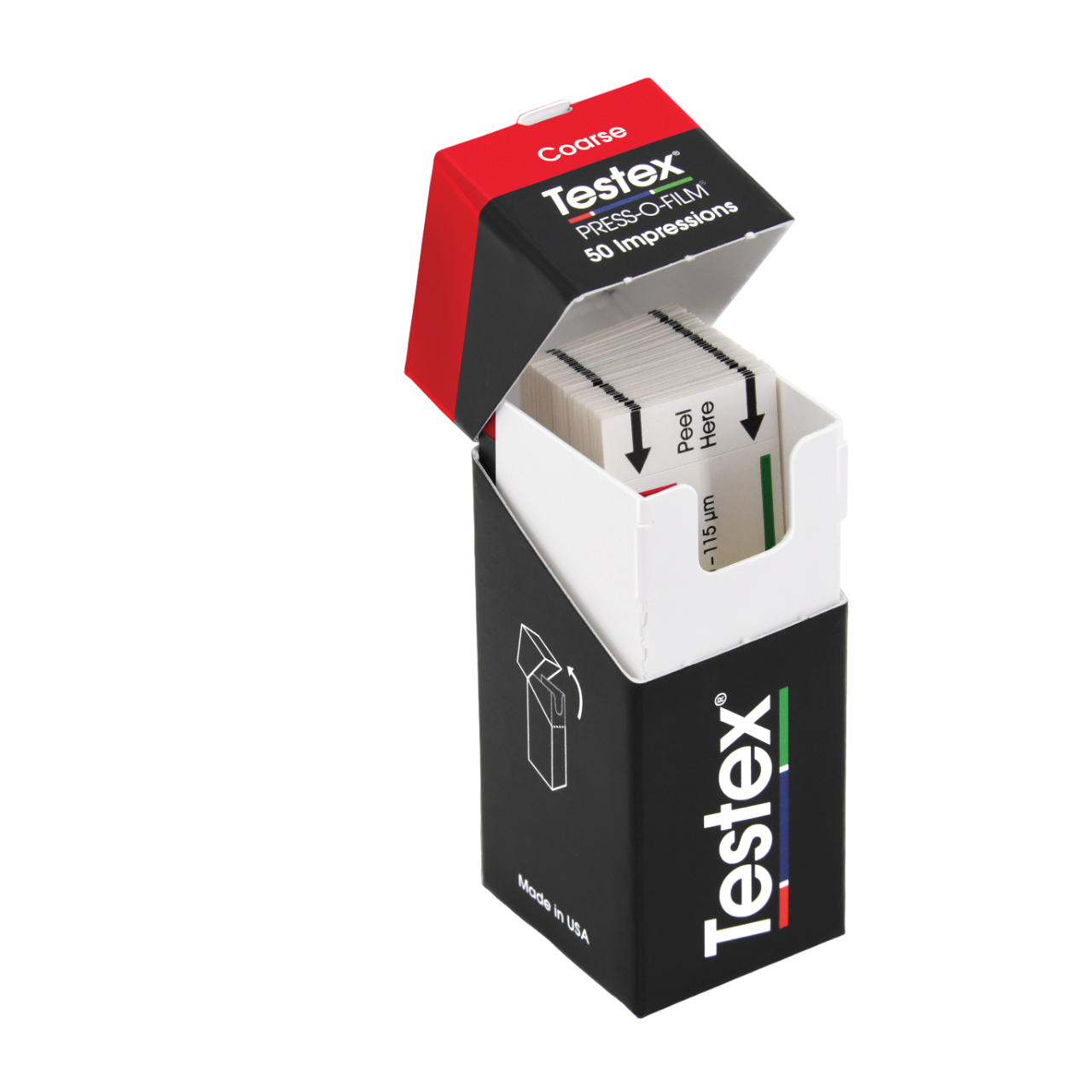

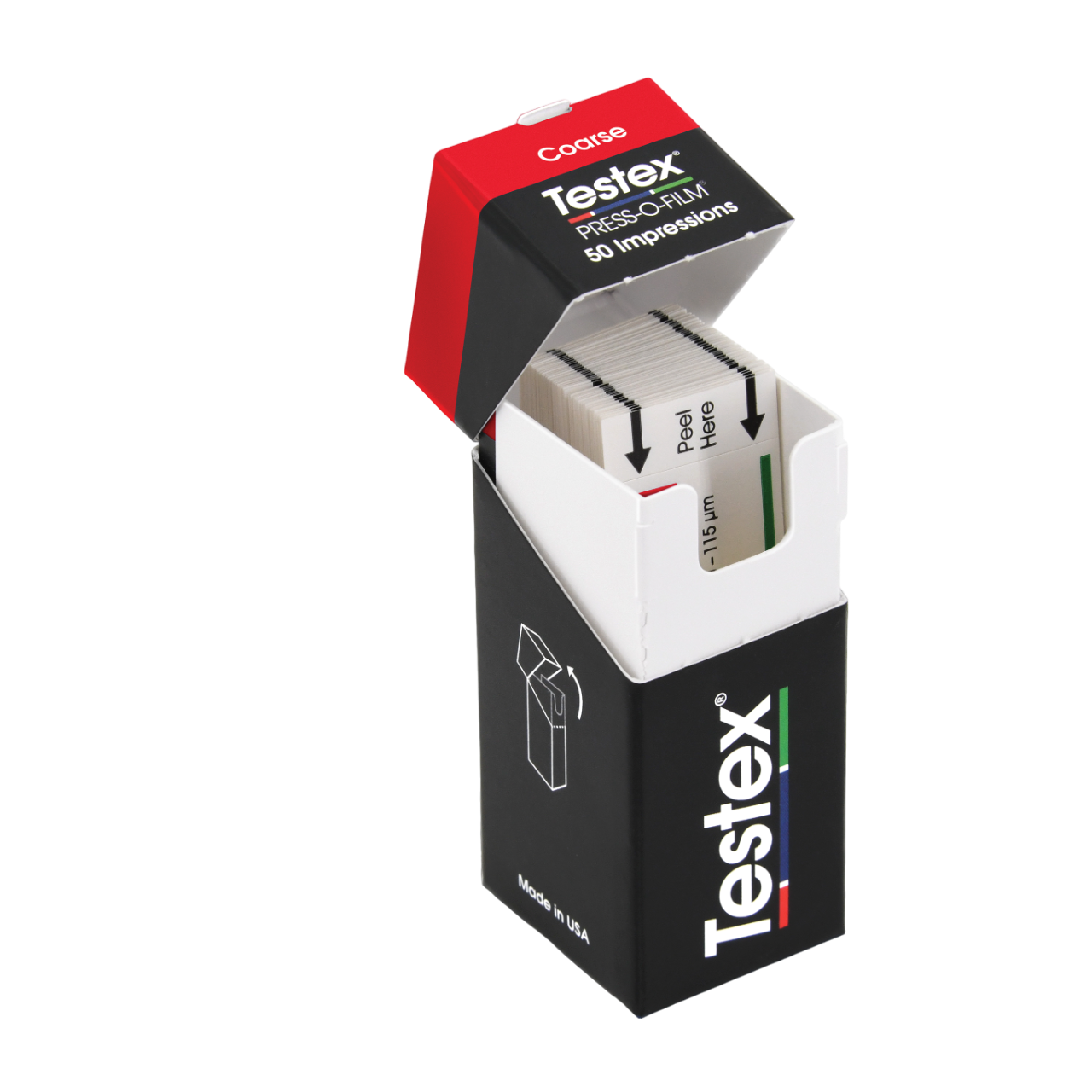

- Coarse.
- In rolls, the measurement range is 0.8 to 2.5 mils (20 – 64 µm)
- In updated strips, the measurement range is 0.8 to 2.0 mils (20 – 50 microns)

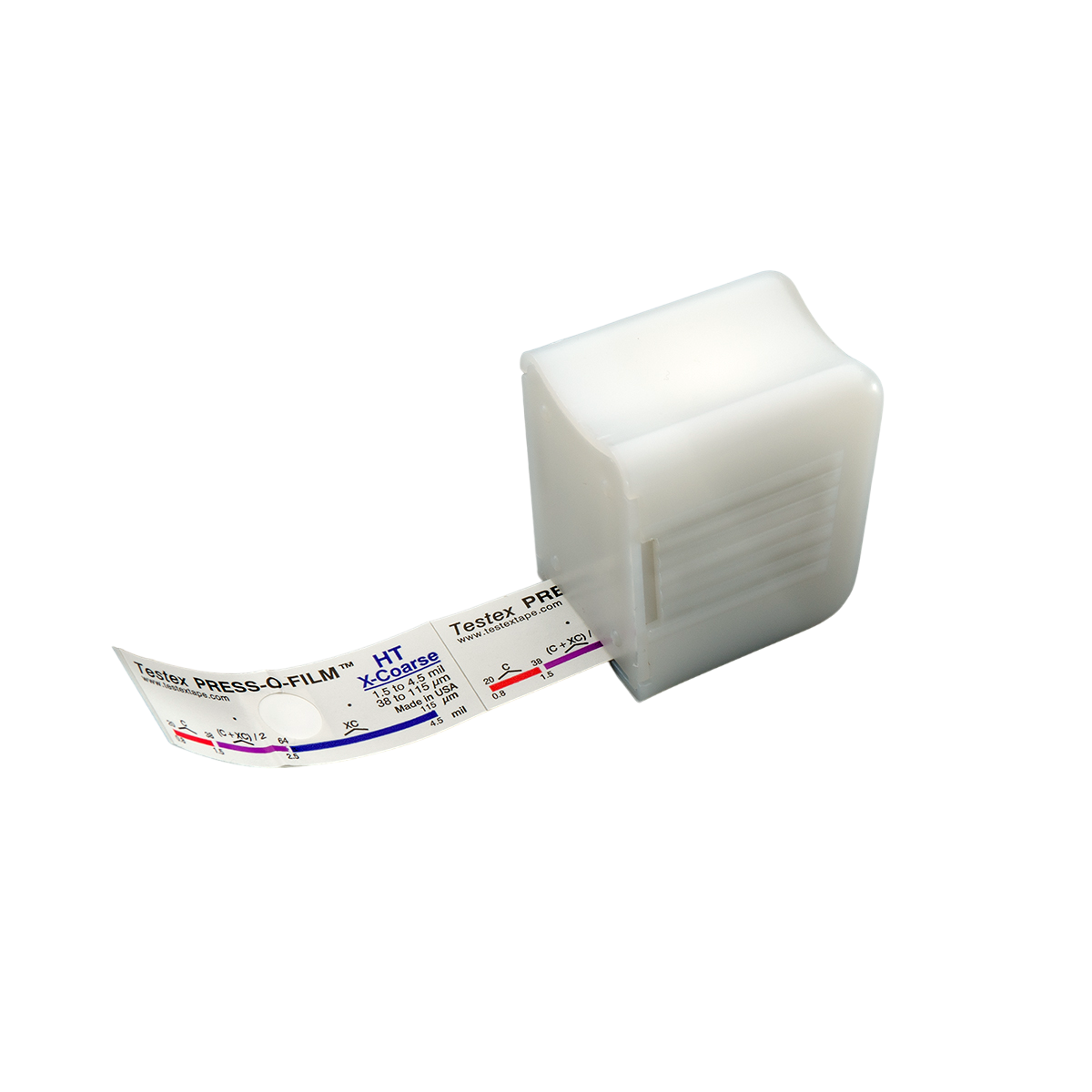

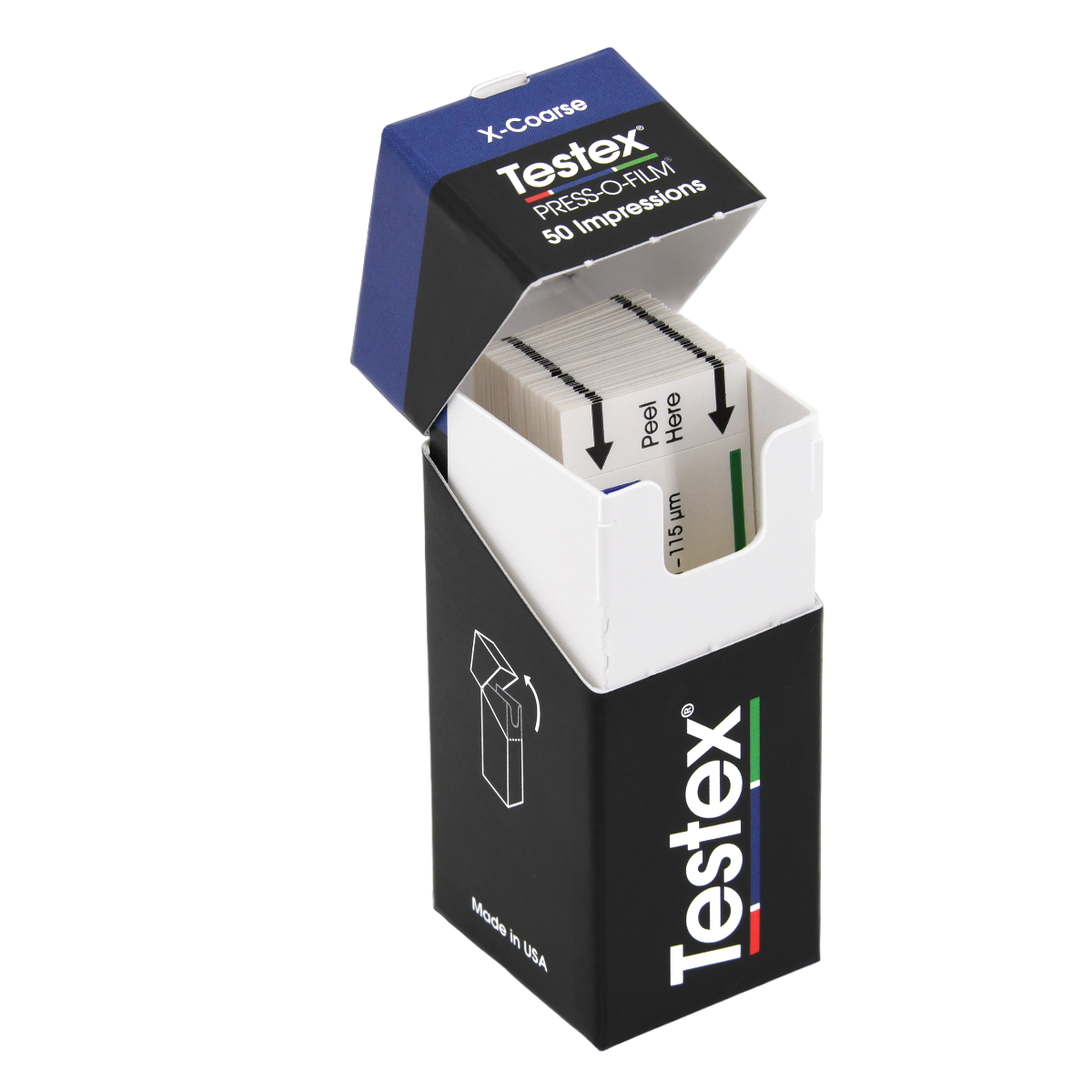

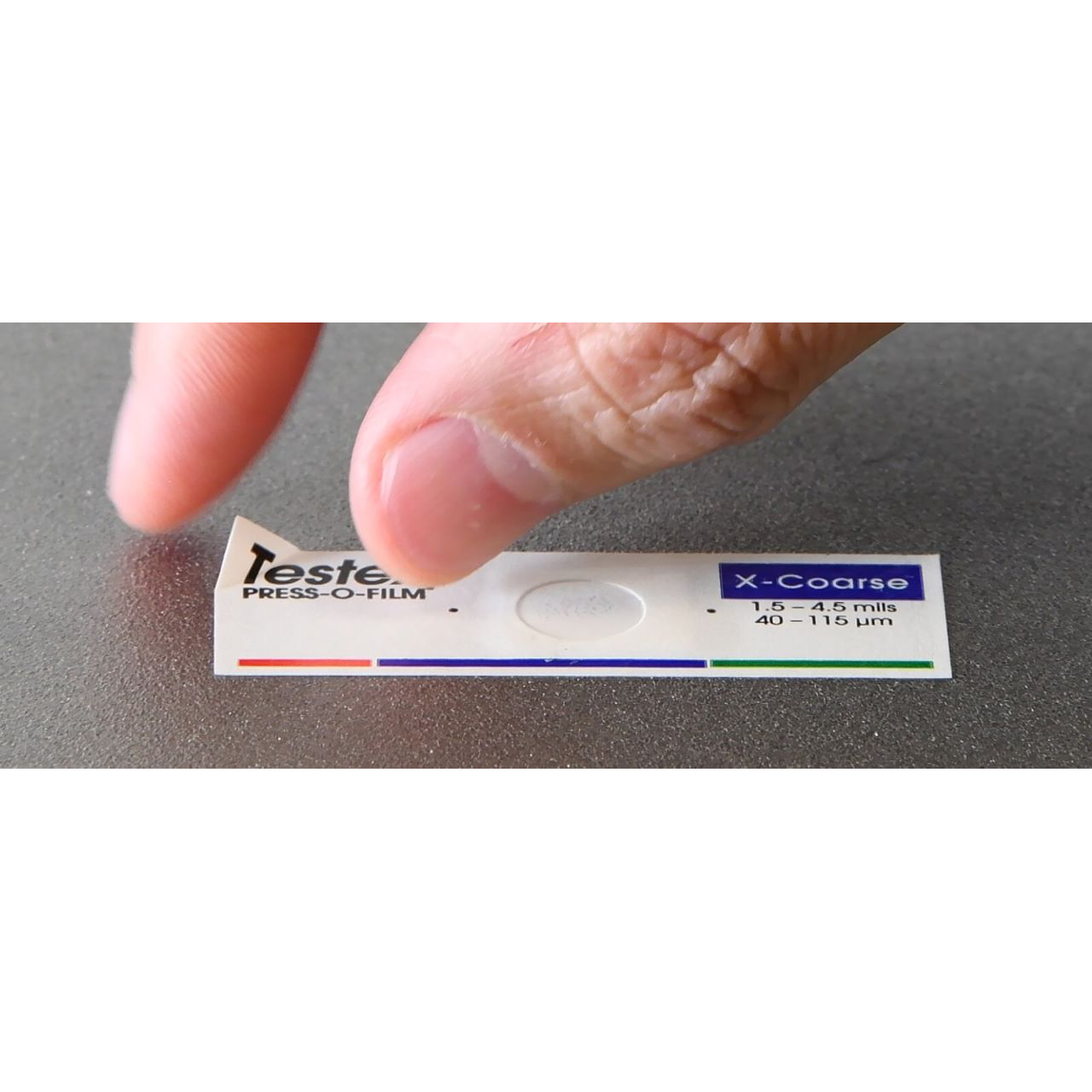

- X-Coarse.
- For both rolls and updated strips, the range is 1.5 to 4.5 mils (38 – 115 microns)

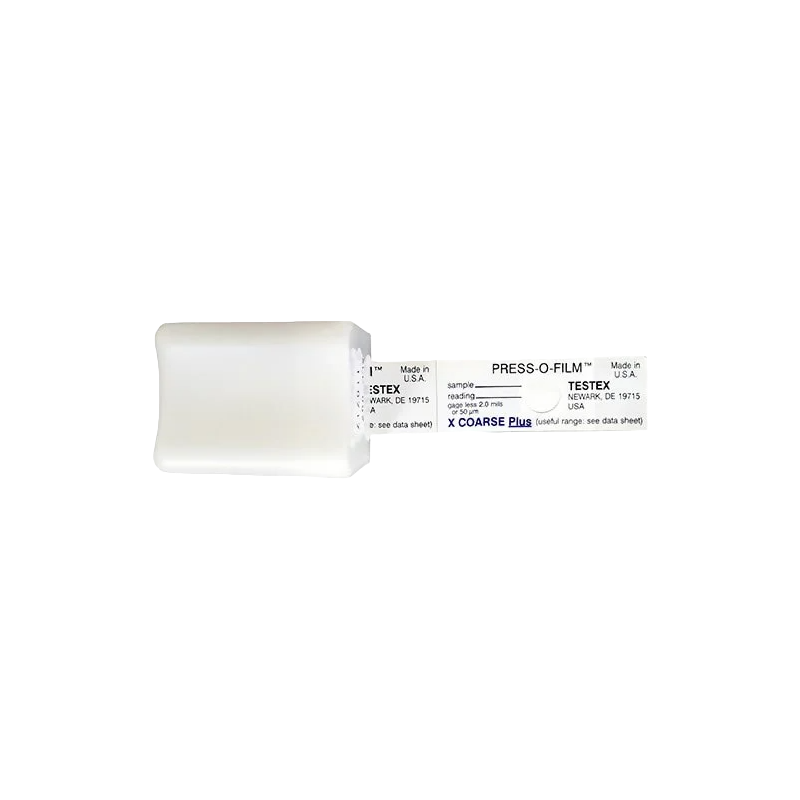

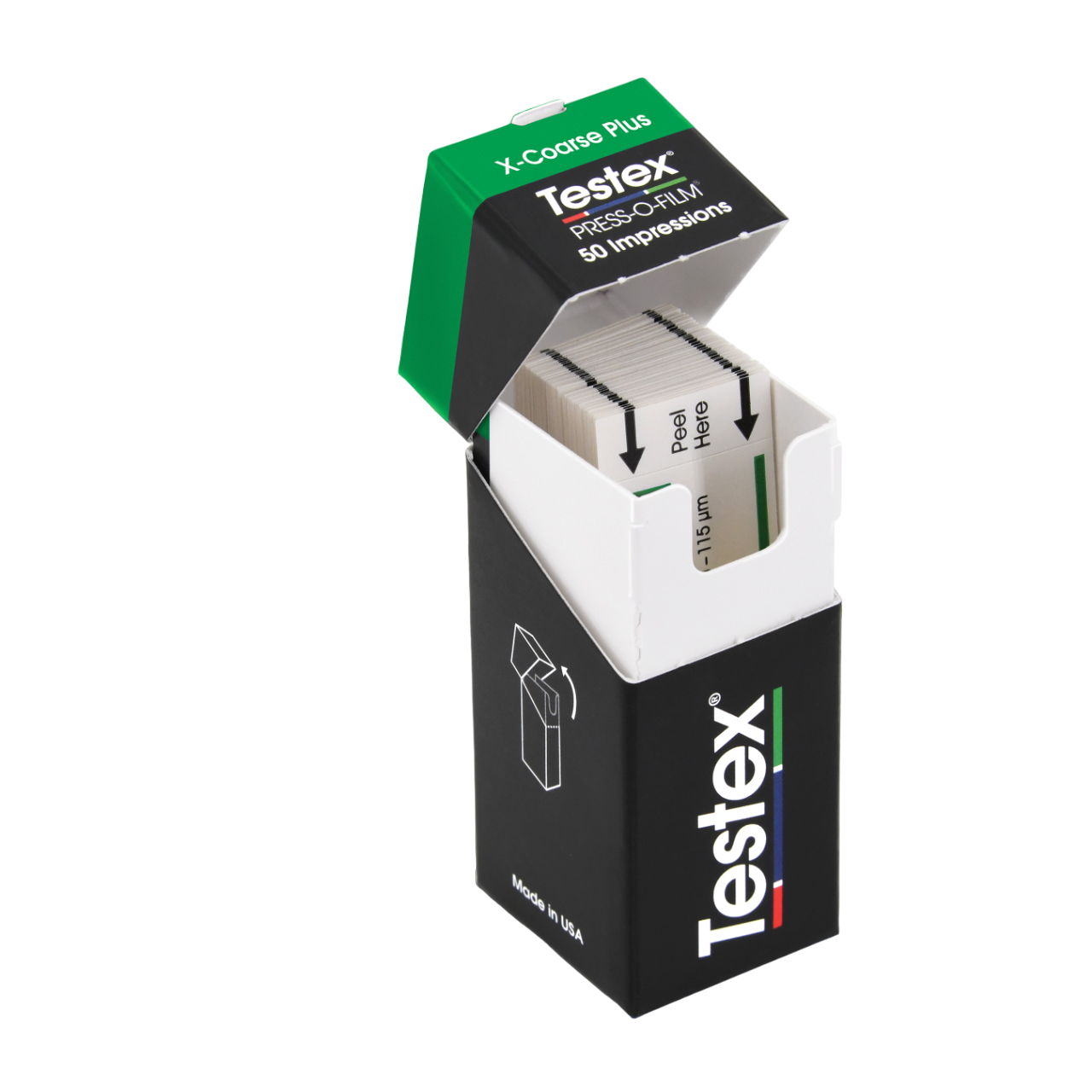

- X-Coarse Plus
- In rolls, the range is 4.6 – 5.0 mils (116 – 127 µm)
- In updated strips, the range has been increased to 4.0 – 6.0 mils (100-150 microns).
- Note – the X-Coarse Plus versions cannot be used interchangeably.

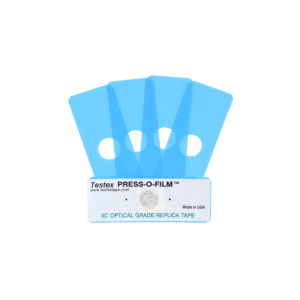

Testex Press-O-FIlm Optical Grade replica tape is designed for use with the PosiTector RTR 3D tape reader probe. It provides high quality surface data files (.sdf) which can be used for peak density measurements as well as traditional surface profile readings. It is currently available in rolls only, in the following measurement ranges:

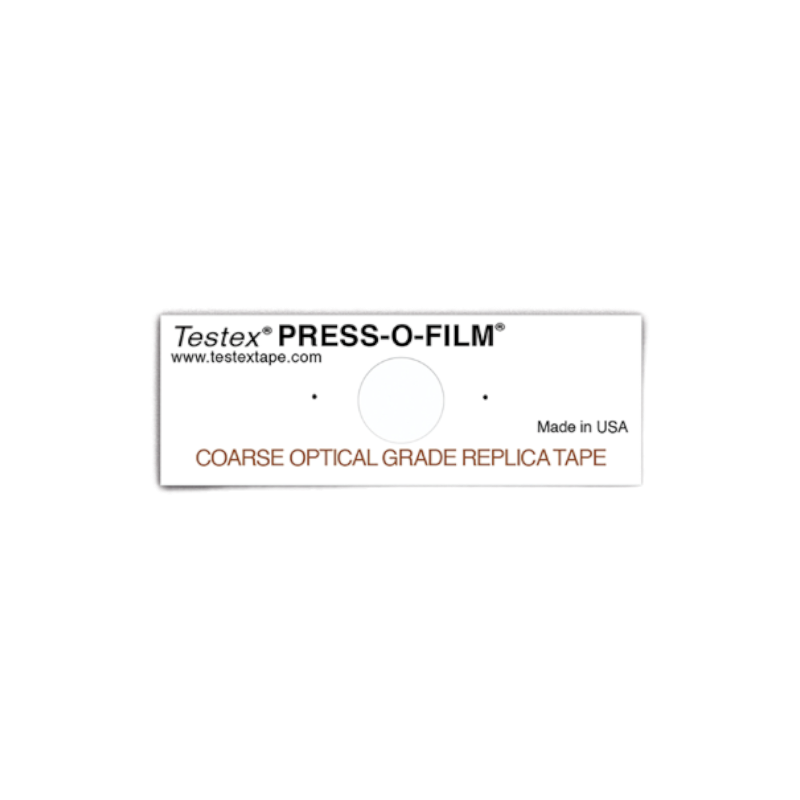

- Coarse. Measures 0.8 to 2.5 mils (20 – 64 microns)

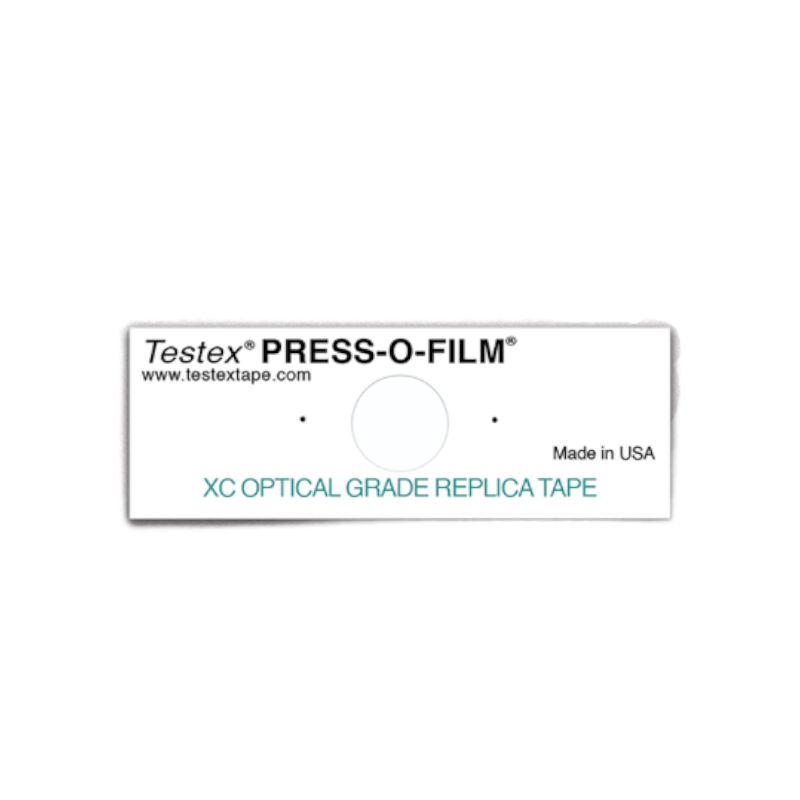

- X-Coarse. Measures 1.5 to 4.5 mils (38 – 115 microns)
| Part Number | Image | Description | Qty 0-5 | Qty 6-59 | Qty 60 or more |
|---|---|---|---|---|---|
| INE1122B |  | $77.38 | $73.51 | $69.64 | |
| INE1122C |  | $77.38 | $73.51 | $69.64 | |
| INE1122E |  | $77.38 | $73.51 | $69.64 | |
| INE122AB |  | $77.38 | $73.51 | $69.64 | |
| INE122BRTR |  | $101.82 | $96.73 | $91.64 | |
| INE122CRTR |  | $101.82 | $96.73 | $91.64 | |
| INDRTC |  | $77.38 | $73.51 | $69.64 | |
| INDRTXC |  | $77.38 | $73.51 | $69.64 |
