Tite-Space Angle Nozzles
Tite-Space nozzles are angle nozzles, designed for use in areas that are especially difficult to access, and feature:

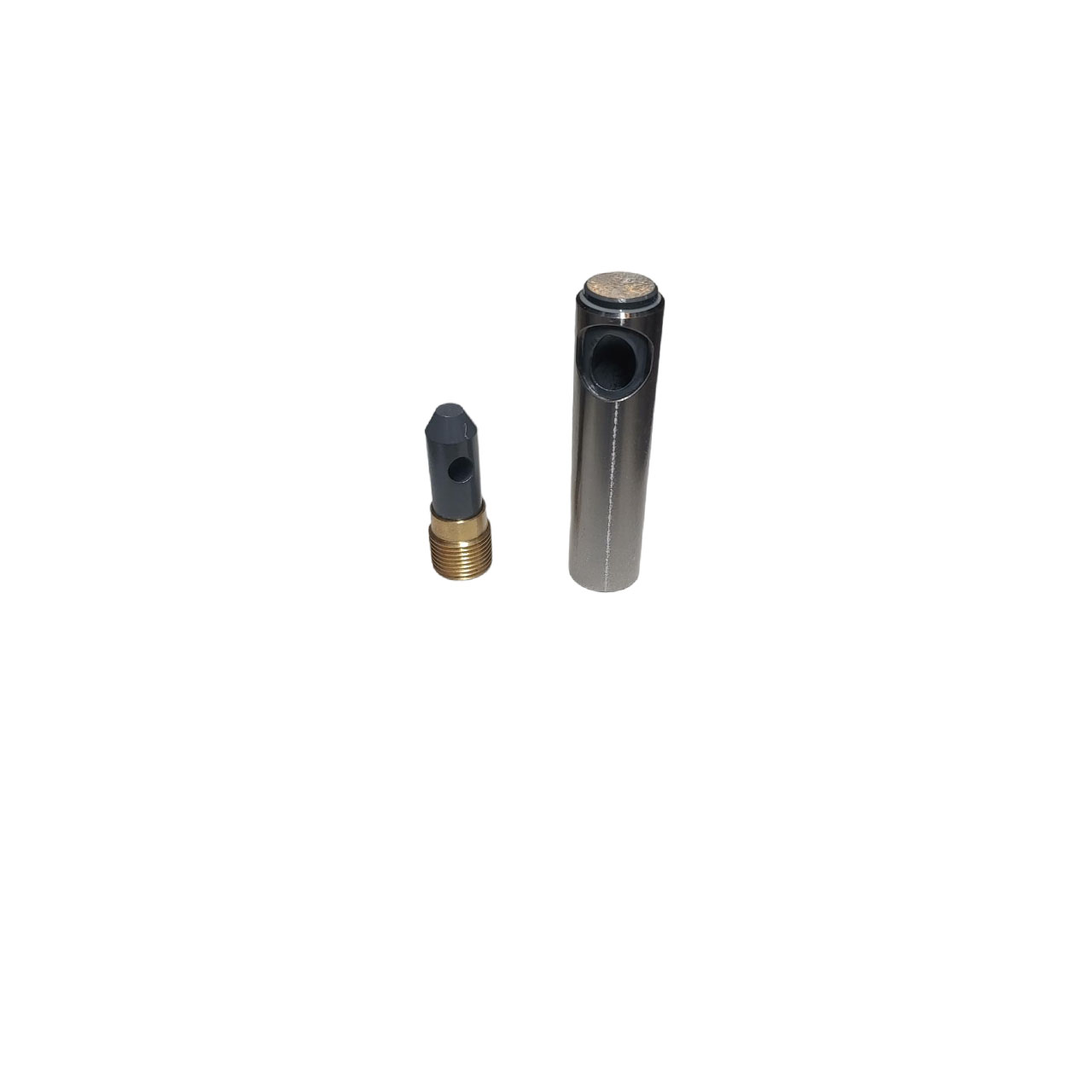

- 3/8″ NPT Thread in either Male or Female configuration

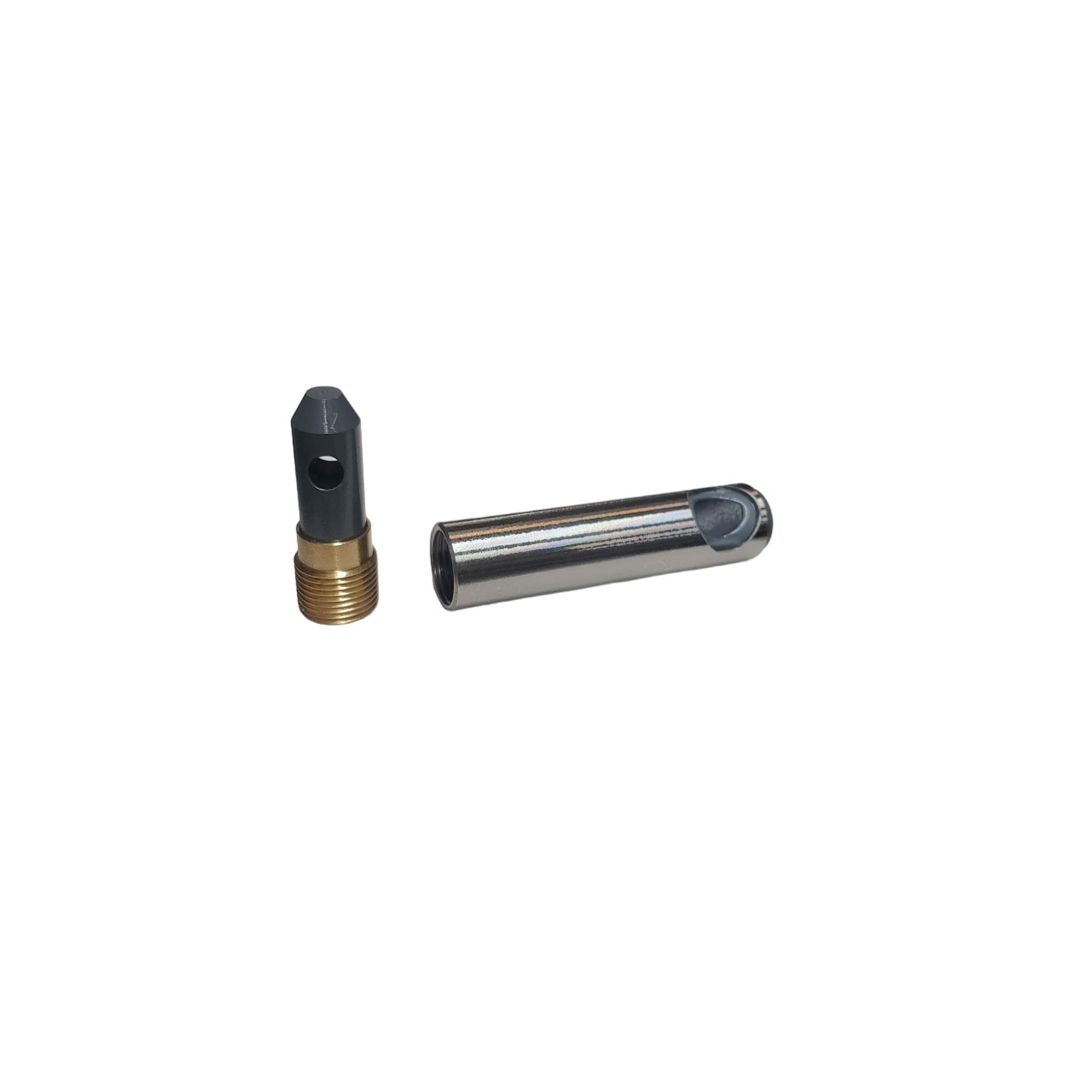

- Male version has brass threads and requires a minimum opening clearance of 1″. This version is 1-7/8″ long.

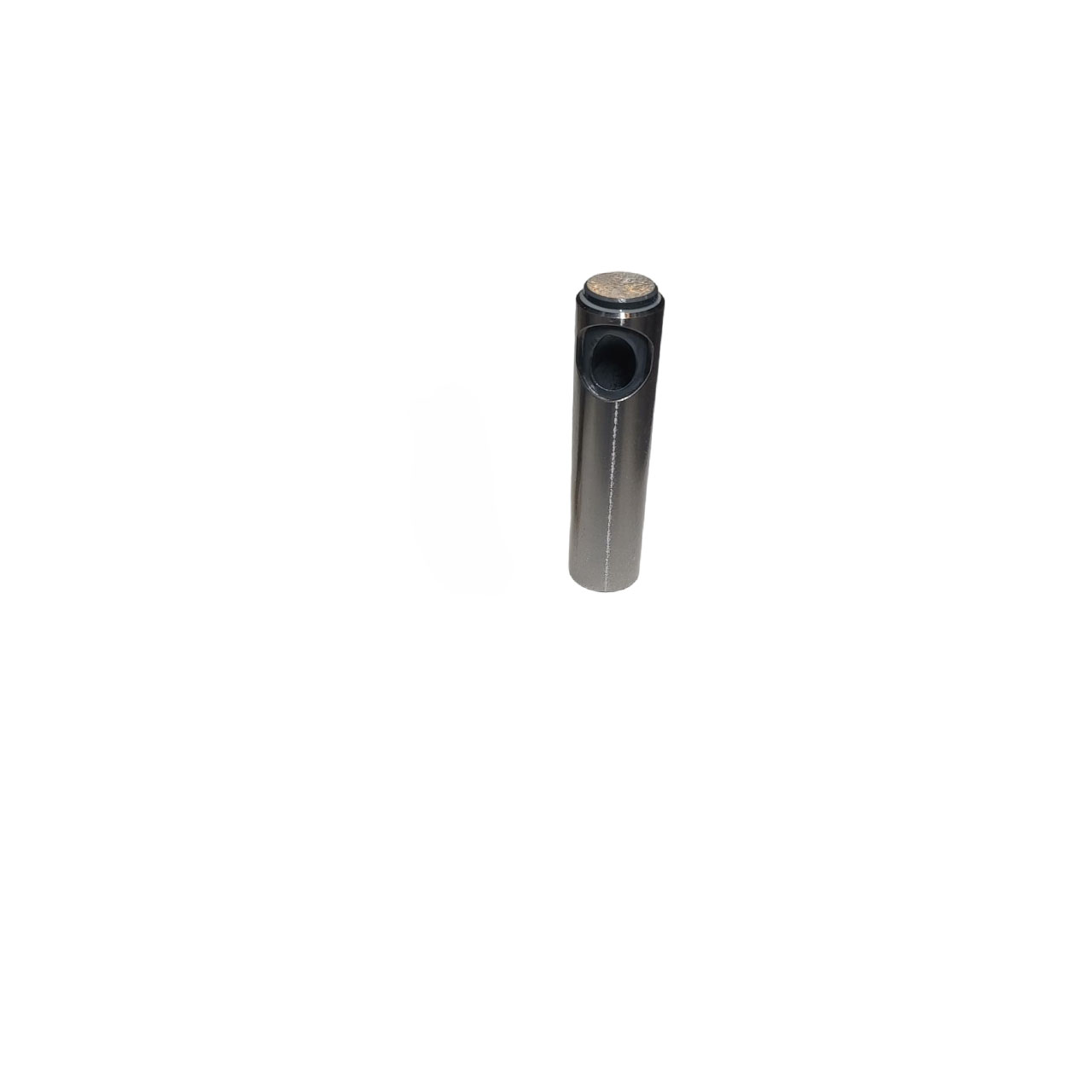

- Female version has steel threads and requires a minimum opening clearance of only ¾”. This version is 3-1/8″ long.
- These nozzles are often used in conjunction with our Tite Space Invader Blasting Kit, available here
- Angle options include:
- 45° & 60° forward blast

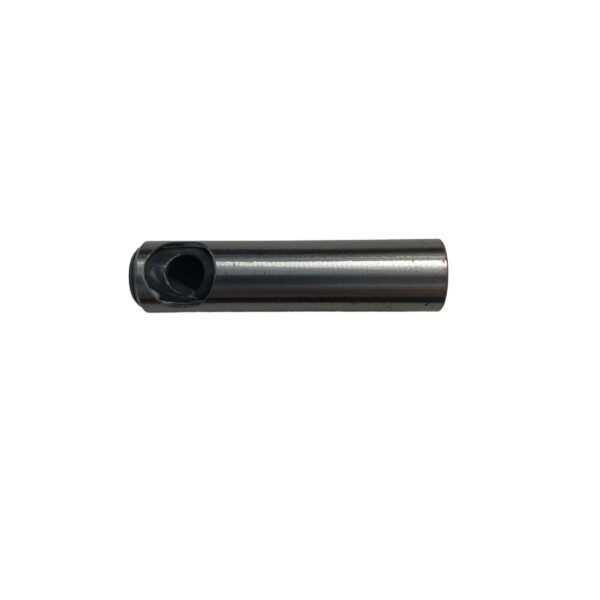

- 90° right angle blast
- 135° reverse blast
- Some options available in double, triple or quad orifices in addition to single.
- Note: Using nozzles with multiple orifices will multiply the compressed air CFM requirement accordingly.
- Stock version uses tungsten carbide lining.
Note: Due to the angled blast stream, these nozzles will wear more quickly than traditional versions. For larger projects, we offer long-life Roctec nozzle linings by special order, with a minimum order quantity of 5. Contact us for further details.
