Airless Spray – Fluid Pressure Loss Calculation
For pressure loss through pipe or tube
[tipflow conversion_title=”Automatic volume conversions”]

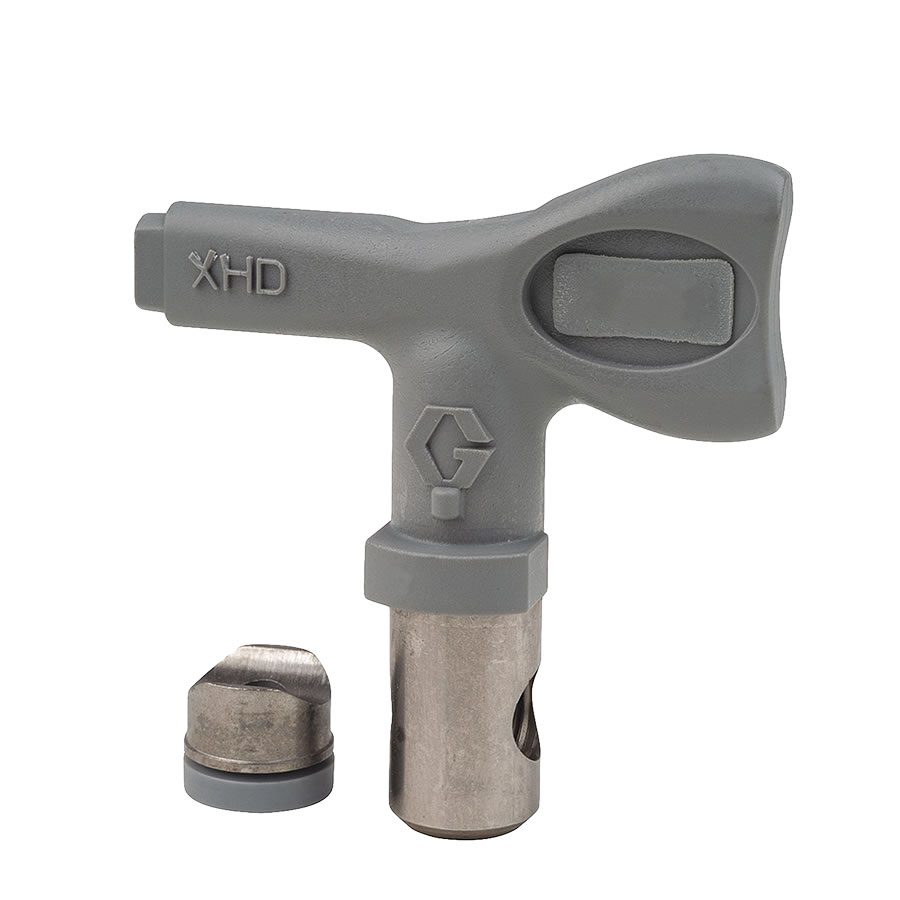

Tip Flow calculator
The following information is required to properly calculate the fluid flow through a Graco Tip. You can fill in the blue numbers.
[/tipflow]
Pressure Drop P =
(in psi)
0.0273 x Q x V x L
_____________
D4
Q = flow rate ( in US gallons per minute )
V = viscosity of fluid ( in poise )
L = length of pipe ( in feet )
D = internal pipe diameter ( in inches )
